3-S11
MX5100, WSM
TRANSMISSION
Disconnecting Wirings 3

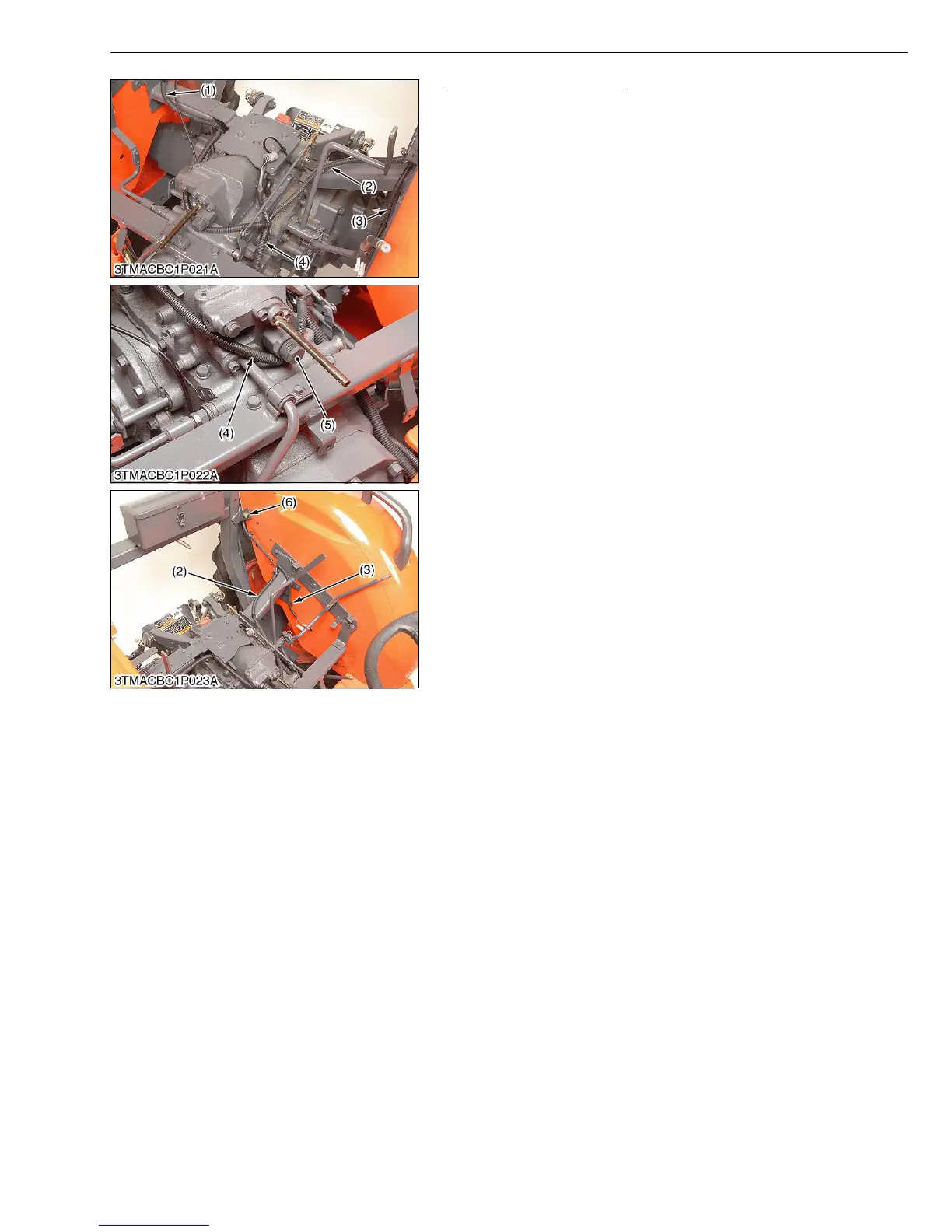

1. After removing the floor seat cover, disconnect the code bands
(1), (2), (3), (6).
2. Disconnect the wiring from the transmission housing case.
(When reassembling)
• Bind the code bands as shown in the pictures.
• Reinstall the wirings to the original location as shown in the
picture.
W11227490
(1) Code Band
(2) Code Band
(3) Code Band
(4) Wiring
(5) Hydraulic Cylinder Safety Valve
(6) Code Band
