3-S20
MX5100, WSM
TRANSMISSION

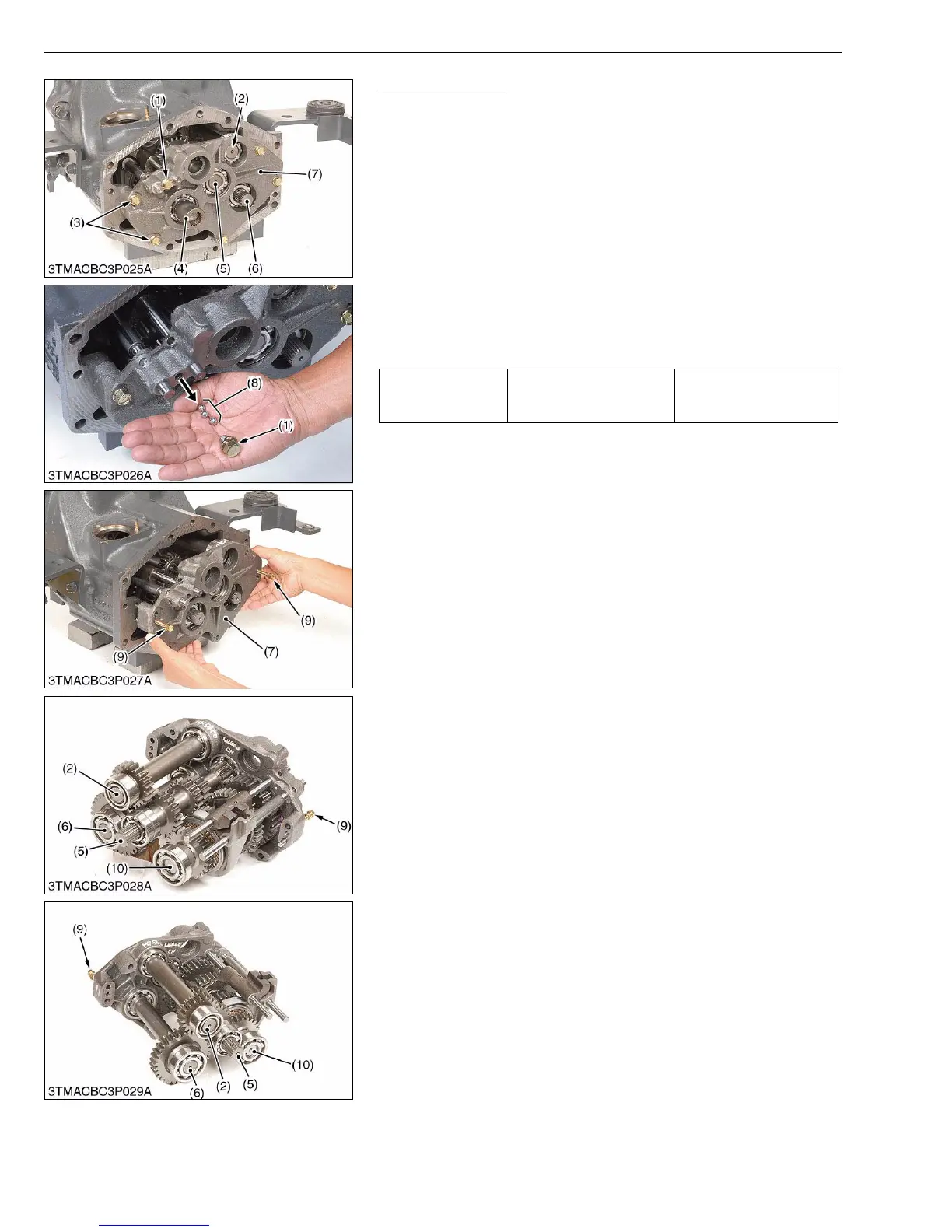

Removing Shafts
1. Remove the three interlock balls (8) after removing the stopper
bolt (1).
2. Remove the clutch housing bearing holder mounting bolts (3).
3. Screw down the two jack bolts (M8) (9) into the clutch housing
bearing holder (7).
4. Remove the clutch housing bearing holder (7) with the shafts (2),
(5), (6), (10).
• Take care not to fly out the interlock balls (8) when pulling
out the clutch housing bearing holder (7).
(When reassembling)
• Install the three interlock balls (8) with a small amount of grease
to the clutch housing bearing holder (7) after setting the shift folks
and shift rods to the neutral position.
W10209720
Tightening torque
Clutch housing bearing
holder mounting bolts
(M10)
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
(1) Stopper Bolt
(2) 21T PTO Gear Shaft
(3) Bolt
(4) Coupling (for Shuttle Shaft)
(5) Main Gear Shaft
(6) PTO Counter Shaft
(7) Clutch Housing Bearing Holder
(8) Interlock Balls
(9) Jack Bolt (M8)
(10) Synchro-Counter Shaft
To Next Page
