3-S19
MX5100, WSM
TRANSMISSION

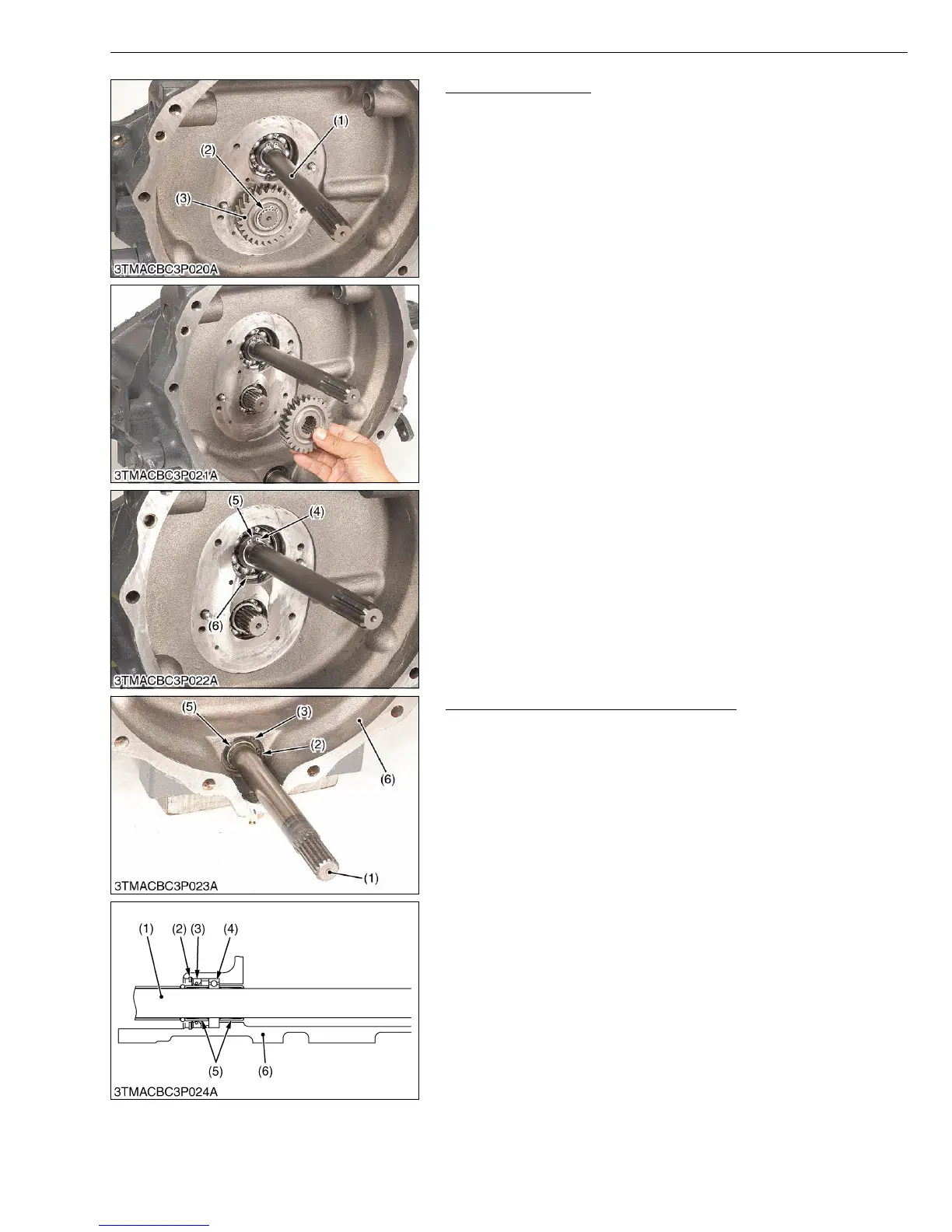

Removing 26T Gear
1. Remove the cir-clip (2).
2. Remove the 26T gear (3).
W10204600
Removing Front Drive Shaft (4WD only)
1. Remove the internal cir-clip (2).
2. Pull out the front axle drive shaft (1) to the front side.
(When reassembling)
• Do not damage the oil seal.
W10207270
(1) 18T PTO Gear Shaft
(2) Cir-clip
(3) 26T Gear
(4) Cir-clip
(5) Collar
(6) Cir-clip
(1) Front Axle Drive Shaft
(2) Internal Cir-clip
(3) Oil Seal
(4) Ball Bearing
(5) Sleeve
(6) Clutch Housing
To Next Page
