TRANSMISSION
Disassembling Shafts
1. Remove the shafts (6), (7), (8), (9) from the clutch housing
bearing holder (10).
2. Disassembling the synchro-counter shaft assembly (6), the main
gear shaft assembly (7), the 21T PTO gear shaft assembly (9)
and the PTO counter shaft assembly (8).
NOTE■
• Take care not to fly out the balls (11) and the springs (12)
when pulling out the main gear shift fork from the clutch
housing bearing holder (10).
W10218510

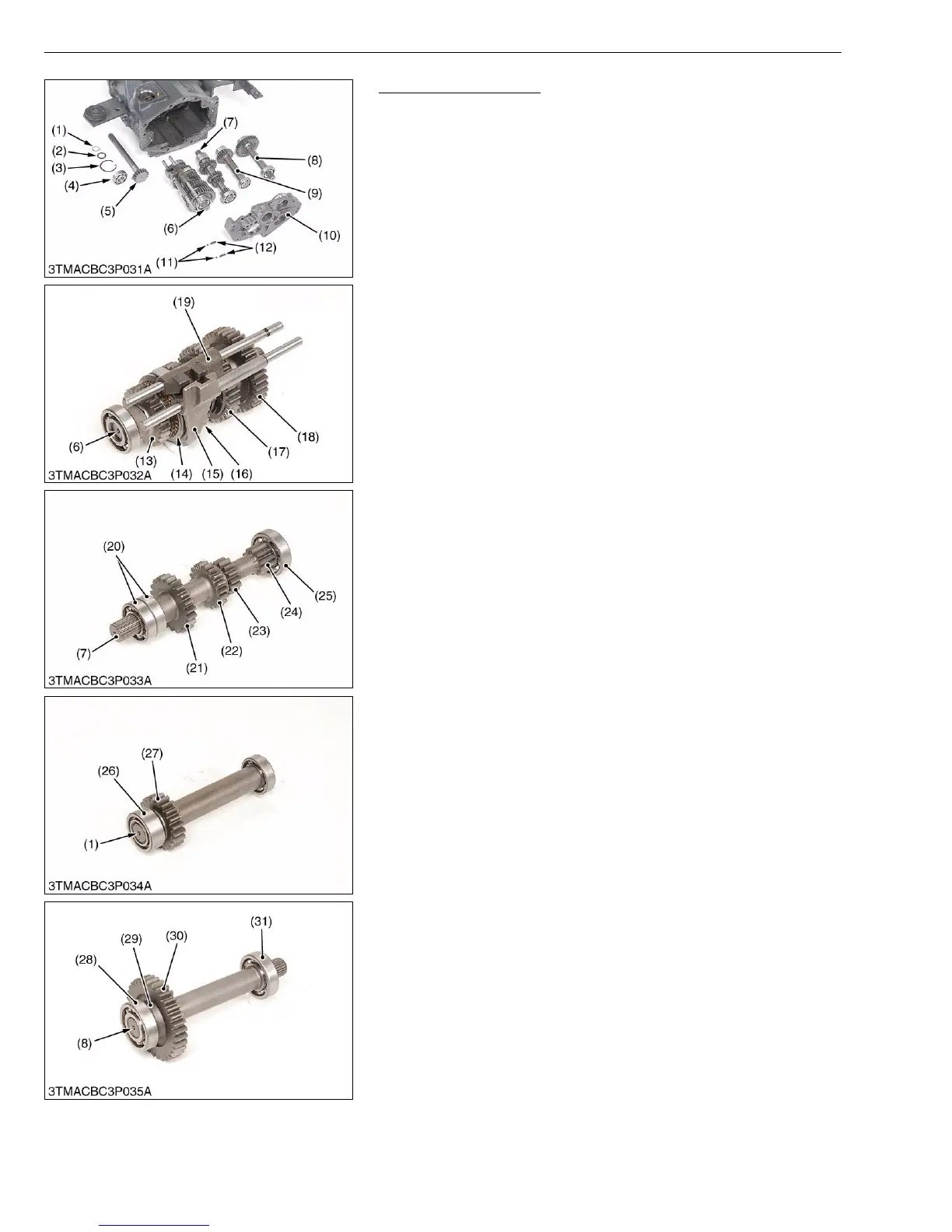

(1) External Cir-clip
(2) Collar
(3) Internal Cir-clip
(4) Ball Bearing
(5) 18T PTO Gear Shaft
(6) Synchro-Counter Shaft Assembly
(7) Main Gear Shaft Assembly
(8) PTO Counter Shaft Assembly
(9) 21T PTO Gear Shaft Assembly
(10) Clutch Housing Bearing Holder
(11) Ball
(12) Spring
(13) 24T Synchro-Gear (4th Gear)
(14) Shifter
(15) Folk (3rd-4th Gear)
(16) 29T Synchro-Gear (3rd Gear)
(17) 34T Shifter Gear (2nd Gear)
(18) 37T Gear (1st Gear)
(19) Fork (1st-2nd Gear)
(20) Ball Bearing
(21) 22T Gear
(22) 18T Gear
(23) 13T Gear
(24) 10T Gear
(25) Ball Bearing (6305)
(26) Roller Bearing
(27) 21T Gear
(28) Ball Bearing (6305)
(29) Collar
(30) 33T Gear
(31) Ball Bearing (6205)
