TRANSMISSION

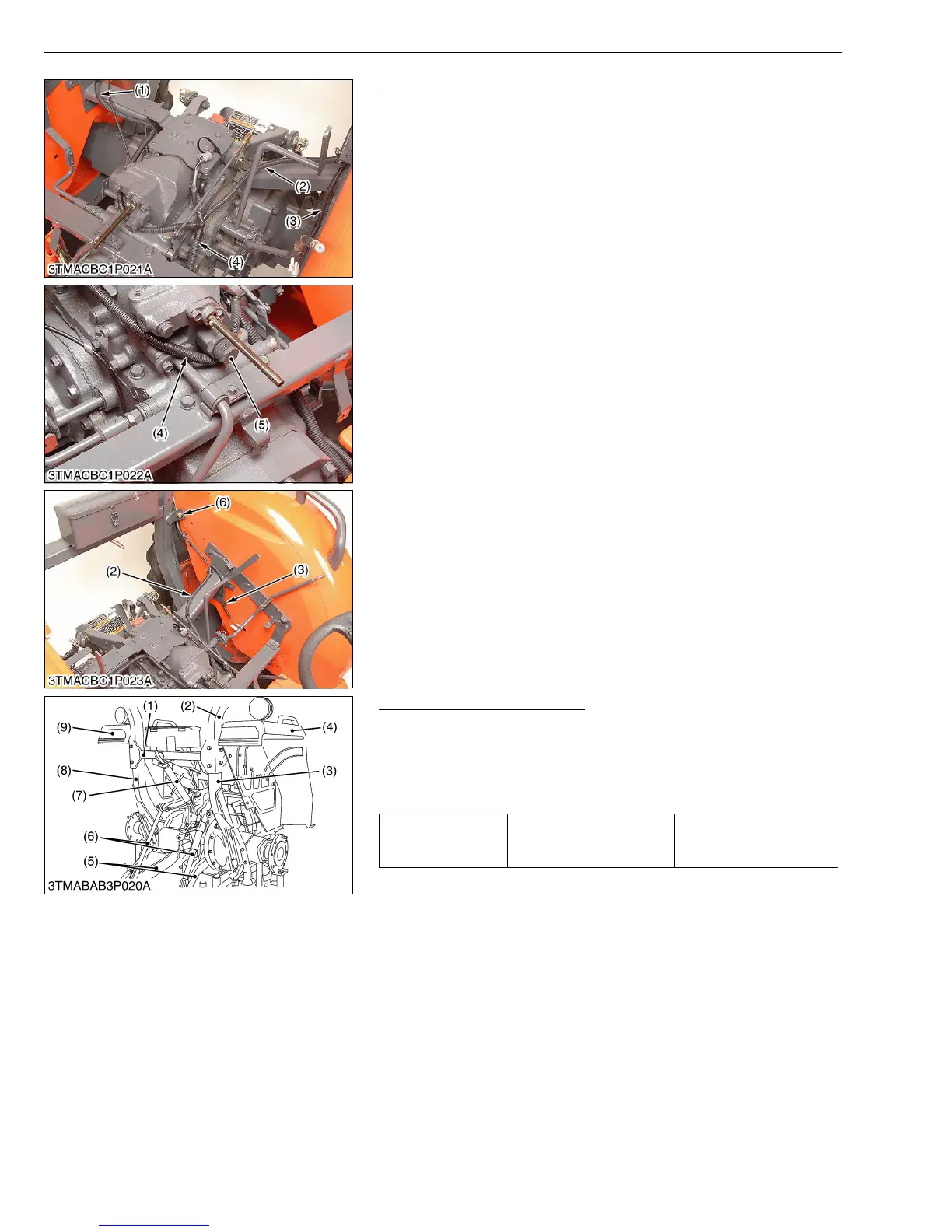

Disconnecting Wirings 3
1. After removing the floor seat cover, disconnect the code bands
(1), (2), (3), (6).
2. Disconnect the wiring from the transmission housing case.
(When reassembling)
• Bind the code bands as shown in the pictures.
• Reinstall the wirings to the original location as shown in the
picture.
W10364360
ROPS and Fender R.H., L.H.
1. Remove the top link (7), lower link (5) and lift rod (6).
2. Remove the ROPS center (1) and draw out the ROPS upper (2).
3. Remove the ROPS mounting screw and ROPS lower (3), (8).
4. Remove the fender (R.H.) (4) and (L.H.) (9).
(When reassembling)
W10167030
(1) Code Band
(2) Code Band
(3) Code Band
(4) Wiring
(5) Hydraulic Cylinder Safety Valve
(6) Code Band
Tightening torque ROPS mounting screw
166.7 to 196.1 N·m
17 to 20 kgf·m
123 to 144 lbf·ft
(1) ROPS Center
(2) ROPS Upper
(3) ROPS Lower R.H.
(4) Fender R.H.
(5) Lower Link
(6) Lift Rod
(7) Top Link
(8) ROPS Lower L.H.
(9) Fender L.H.
