3-S37
MX5100, WSM
TRANSMISSION

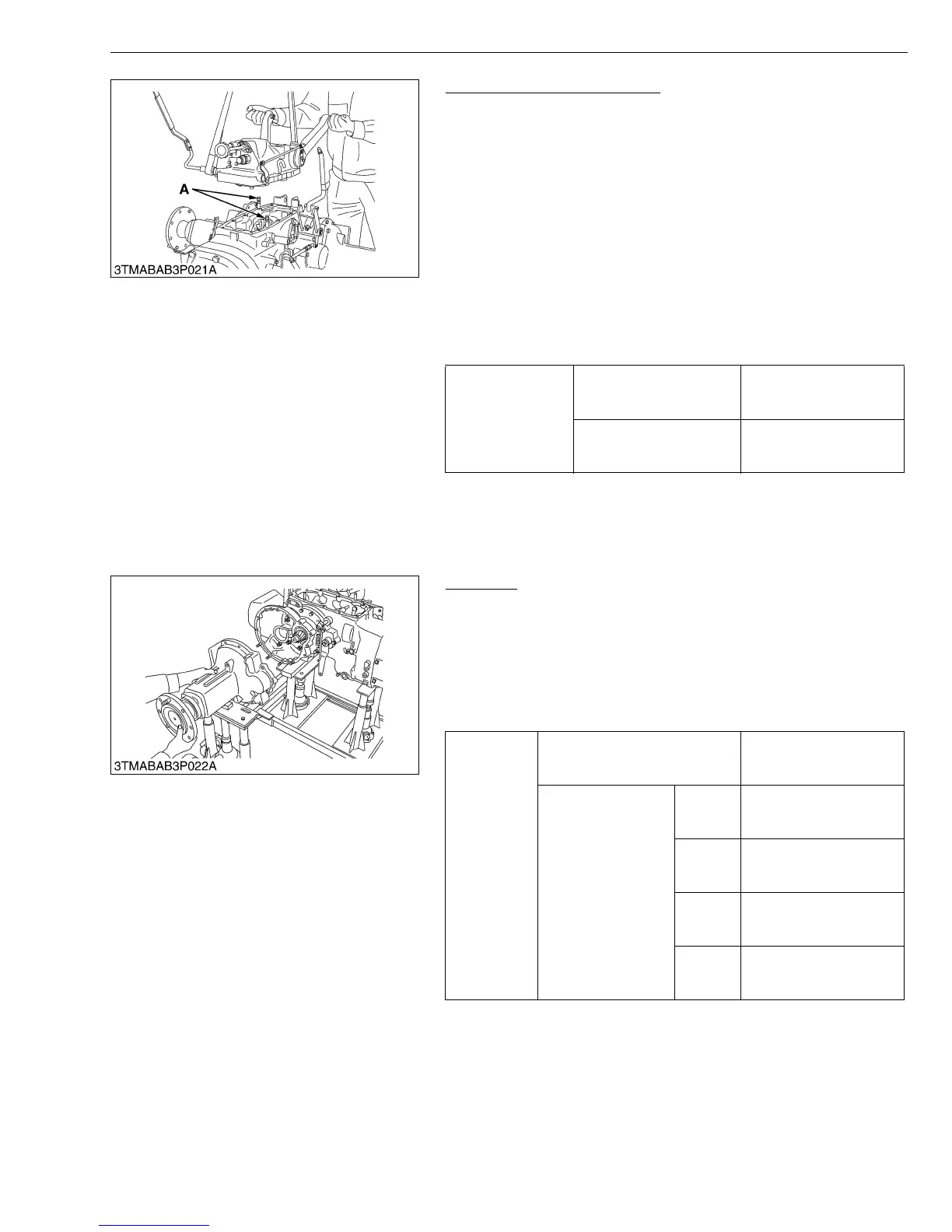

Hydraulic Cylinder Assembly
1. Disconnect the draft control rod from the top link bracket. (If
equipped.)
2. Remove the hydraulic cylinder assembly mounting screws and
nuts.
3. Support the hydraulic cylinder assembly with nylon lift strap and
hoist, and then remove it.
(When reassembling)
• Replace the hydraulic cylinder gasket with new one.
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the hydraulic cylinder assembly and transmission case
after eliminate the water, oil and stuck liquid gasket.
• When replacing the hydraulic cylinder assembly mounting stud
bolts, apply liquid lock (Three Bond 1324 or equivalent) to “A”
portion of the stud bolt.
• Reassemble the hydraulic cylinder assembly to the tractor,
be sure to adjust the position control feedback rod and draft
control rod (if equipped). (See page 8-S13.)
W10190270
Rear Axle
1. Place the support stand under the rear axle case.
2. Remove the rear axle mounting screws and nuts.
3. Separate the rear axle case from brake case.
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the rear axle case and brake case, after eliminate the
water, oil and stuck liquid gasket.
W10192420
Tightening torque
Hydraulic cylinder
assembly mounting stud
bolt
34.3 to 49.0 N·m
3.5 to 5.0 kgf·m
25.3 to 36.2 lbf·ft
Hydraulic cylinder
assembly mounting screw
and nut
77.4 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
Tightening
torque
Rear wheel mounting screw and
nut
196 to 226 N·m
20 to 23 kgf·m
145 to 166 lbf·ft
Rear axle case
mounting screw and
nut
M10 nut
60.8 to 70.5 N·m
6.2 to 7.2 kgf·m
44.9 to 52.1 lbf·ft
M10
screw
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
Stud
bolt
24.5 to 31.4 N·m
2.5 to 3.2 kgf·m
18.1 to 23.1 lbf·ft
M12
screw
and nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
