3-S38
MX5100, WSM
TRANSMISSION

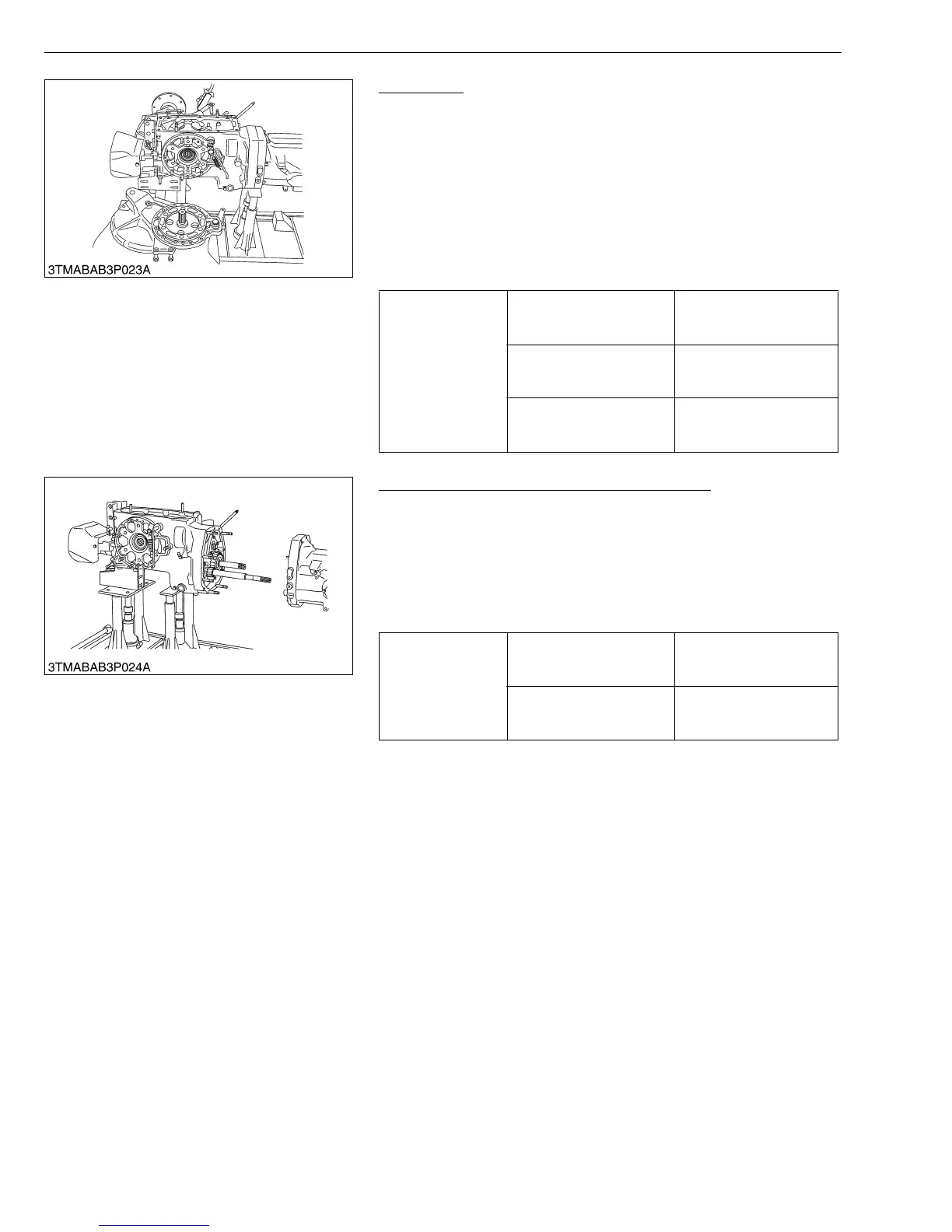

Brake Case
1. Remove the brake case mounting screws and nuts.
2. Separate the brake case, tapping the brake case lever lightly.
(When reassembling)
• Apply grease to the brake ball seats. (Do not grease
excessively.)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the brake cae and transmission case, after eliminate the
water, oil and stuck liquid gasket.
• Before installing the brake case to the transmission case, install
the cam plate to the transmission case.
W10194530
Separating Mid Case and Transmission Case
1. Remove the mid case and transmission case mounting screws
and nuts.
2. Separate the mid case and transmission case.
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of mid case and transmission case after eliminate the water,
oil and stuck liquid gasket.
W10197290
Tightening torque
Brake case mounting stud
bolt
38.2 to 45.1 N·m
3.9 to 4.6 kgf·m
28.2 to 33.3 lbf·ft
Brake case mounting
screw and nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
Brake case lever mounting
screw
62.8 to 72.5 N·m
6.4 to 7.4 kgf·m
46.3 to 53.5 lbf·ft
Tightening torque
Mid case and transmission
case mounting screw and
nut
102.9 to 117.6 N·m
10.5 to 12.0 kgf·m
75.9 to 86.8 lbf·ft
Mid case and transmission
case mounting stud bolt
38.2 to 45.1 N·m
3.9 to 4.6 kgf·m
28.2 to 33.3 lbf·ft
To Next Page
