3-S39
MX5100, WSM
TRANSMISSION

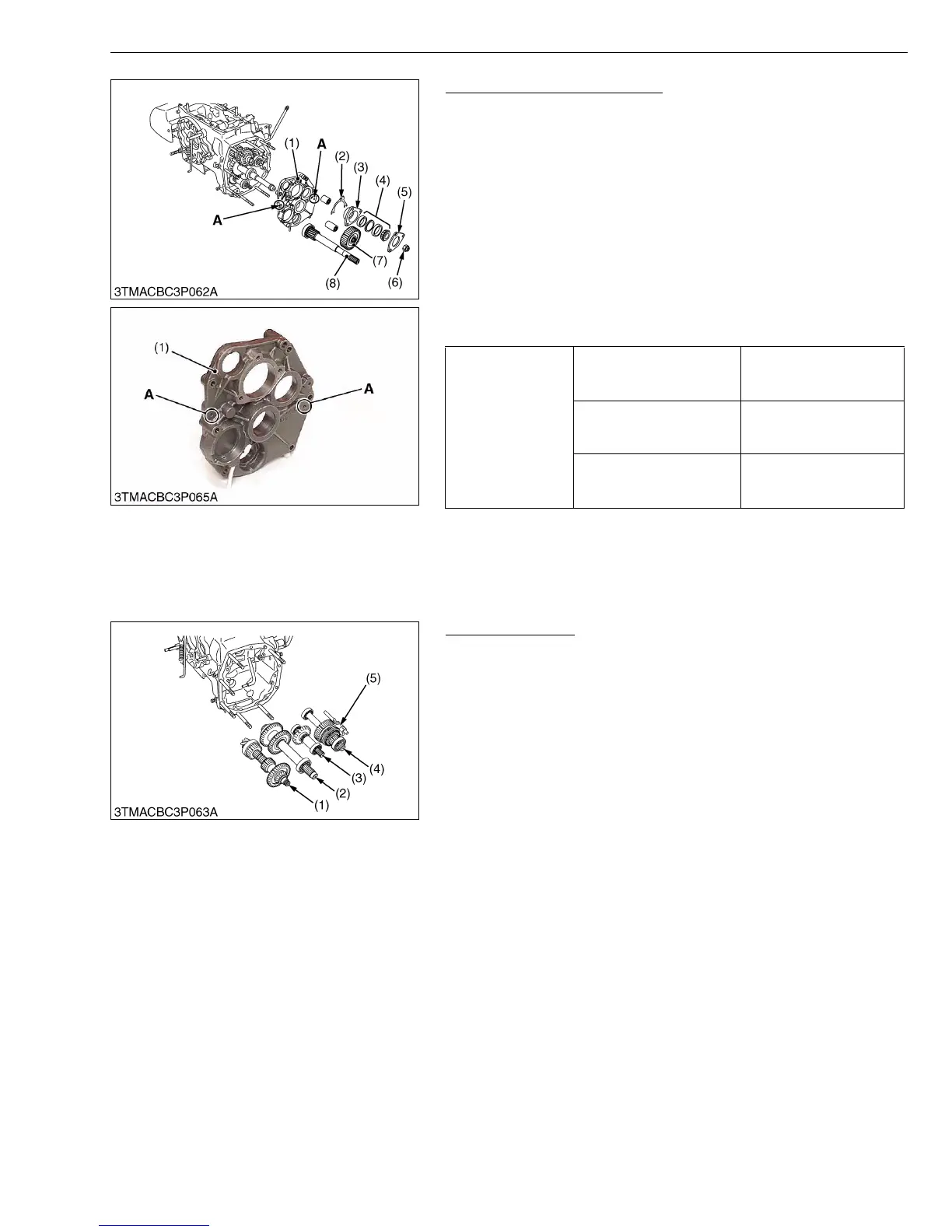

Transmission Bearing Holder
1. Remove the 11T gear shaft (8).
2. Remove the external snap ring and 30T gear (7).
3. Fix the 22T gear on pinion shaft by locking tool (Code No. 07916-
-52311) and remove the staking nut (6).
4. Remove the pinion bearing cover (5), taper roller bearing (4),
pinion bearing case (3) and shim (2).
5. Remove the bearing holder mounting screws.
6. Jack up the bearing holder (1) by using the two jack screws and
remove the bearing holder.
(When reassembling)
• Tap in the transmission bearing holder with soft hummer until
contact to transmission case, and then tighten the screws to
specified torque.
W10369720
Shaft Assemblies
1. Take out the pinion shaft (1), the PTO drive shaft (2), and the four
wheel drive shaft (3).
2. Take out the Hi-Lo range gear shaft (4) with the hi-lo range shift
fork (5).
W10182090
Tightening torque
Transmission bearing
holder mounting screw
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.5 to 41.2 lbf·ft
22 Staking nut
147 to 196 N·m
15 to 20 kgf·m
108 to 145 lbf·ft
Pinion bearing case
mounting screw
39.2 to 44.1 N·m
4.0 to 4.5 kgf·m
28.9 to 32.5 lbf·ft
(1) Transmission Bearing Holder
(2) Shim
(3) Pinion Bearing Case
(4) Taper Roller Bearing
(5) Pinion Bearing Cover
(6) 22 Staking Nut
(7) 30T Gear
(8) 11T Gear Shaft
A : Hole (for Jack Bolt)
(1) Pinion Shaft
(2) PTO Drive Shaft
(3) Four Wheel Drive Shaft
(4) Hi-Lo Range Gear Shaft
(5) Hi-Lo Range Shift Fork
