5-M1
MX5100, WSM
BRAKES
1. STRUCTURE
W10125430
MX5100 is used hanging type brake pedals to have wider space of the platform.
Independent mechanical wet disc brakes are used for the right and left travelling brakes. They are operated by the
brake pedals through the mechanical linkages (2), (4), (6), (7).
The parking brake is a mechanical type which is designed to actuate the travelling brakes. Pulling the parking
brake lever (3) results in the same state as that obtained when the brake pedals are depressed.

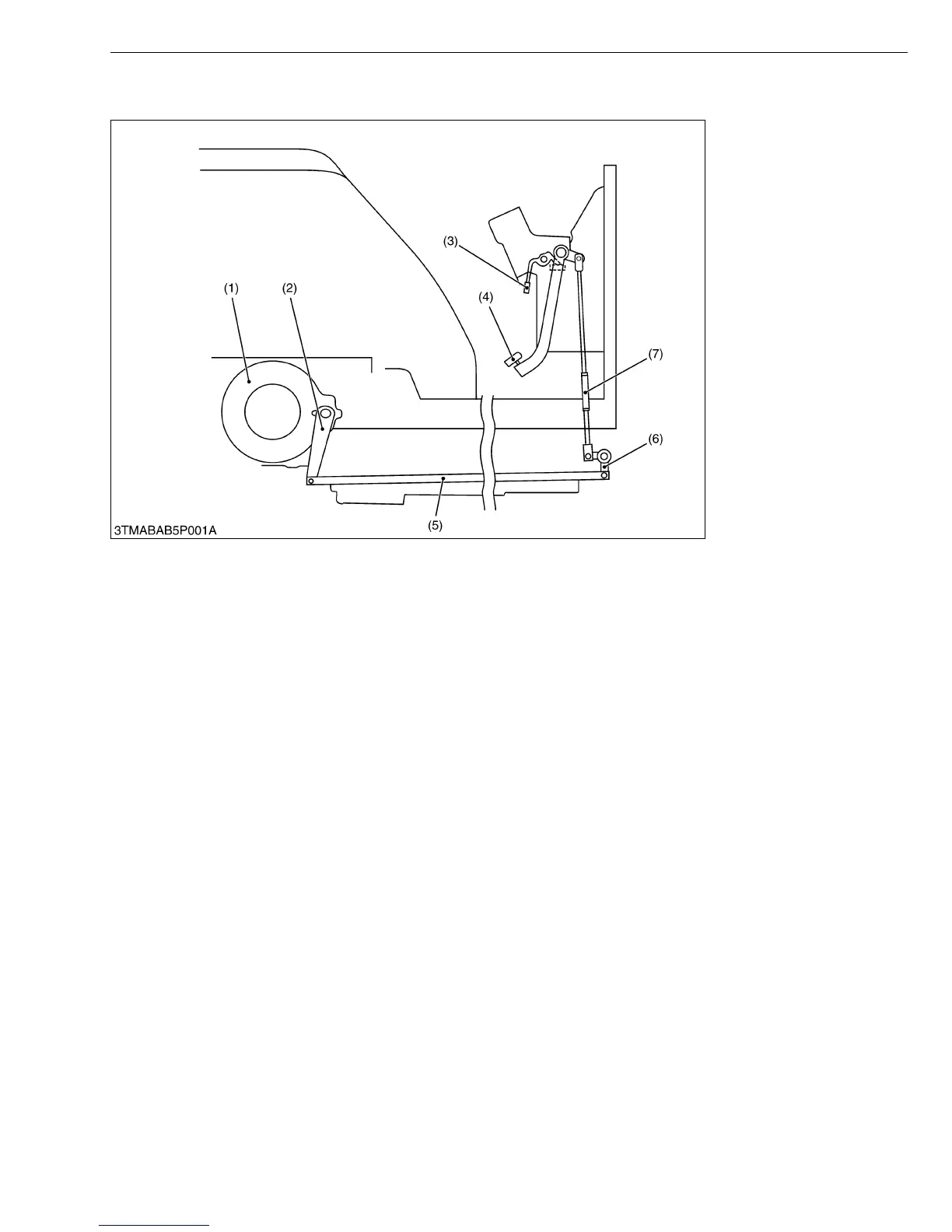

(1) Brake Case
(2) Brake Cam Lever
(3) Parking Brake Lever
(4) Brake Pedal
(5) Brake Rod
(6) Brake Lever Link
(7) Turnbuckle
