5-S6
MX5100, WSM
BRAKES

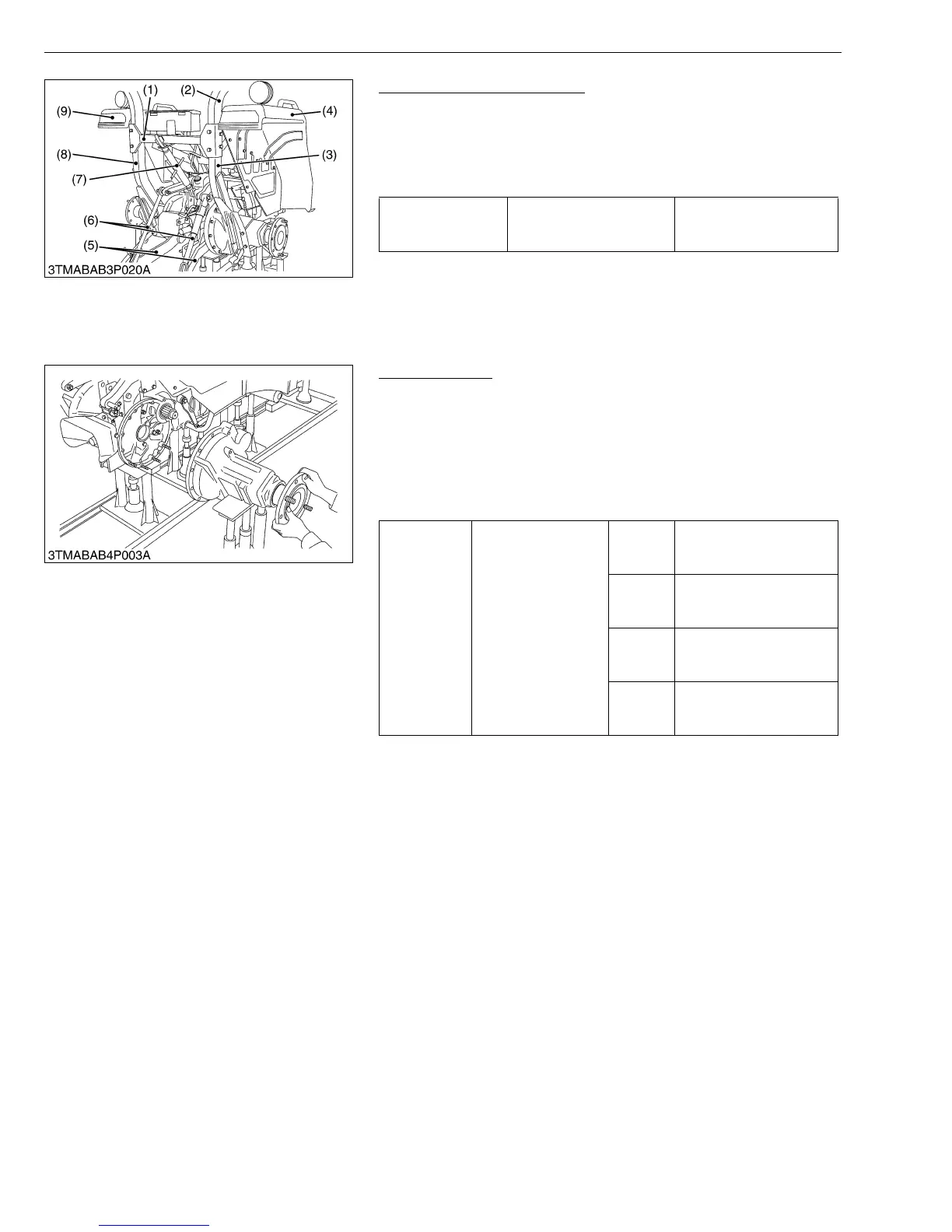

ROPS and Fender R.H., L.H.
1. Remove the top link (7), lower link (5) and lift rod (6).
2. Remove the ROPS center (1) and draw out the ROPS upper (2).
3. Remove the ROPS mounting screw and ROPS lower (3), (8).
4. Remove the fender (R.H.) (4) and (L.H.) (9).
(When reassembling)
W10136620
Rear Axle Case
1. Place the disassembling stand under the rear axle case.
2. Remove the rear axle mounting screws and nuts.
3. Separate the rear axle case from brake case.
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of the rear axle case and brake case, after eliminate the
water, oil and stuck liquid gasket.
W10139100
Tightening torque ROPS mounting screw
166.7 to 196.1 N·m
17 to 20 kgf·m
123 to 144 lbf·ft
(1) ROPS Center
(2) ROPS Upper
(3) ROPS Lower R.H.
(4) Fender R.H.
(5) Lower Link
(6) Lift Rod
(7) Top Link
(8) ROPS Lower L.H.
(9) Fender L.H.
Tightening
torque
Rear axle case
mounting screw and
nut
M10
screw
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
M10 nut
60.8 to 70.5 N·m
6.2 to 7.2 kgf·m
44.9 to 52.1 lbf·ft
M12
screw
and nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
Stud
bolt
24.5 to 31.4 N·m
2.5 to 3.2 kgf·m
18.1 to 23.1 lbf·ft
