8-S18
MX5100, WSM
HYDRAULIC SYSTEM
Disconnecting Wirings 2
1. After removing the floor seat cover, disconnect the code bands
(1), (2), (3), (6).
2. Disconnect the wiring from the transmission housing case.
(When reassembling)
• Bind the code bands as shown in the pictures.
• Reinstall the wirings to the original location as shown in the
picture.
W10297260
Hydraulic Cylinder
1. Loosen and remove the hydraulic cylinder assembly mounting
screws and nuts.
2. Support the hydraulic cylinder assembly with nylon lift strap and
hoist, and then take out it.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the hydraulic cylinder assembly and transmission case
after eliminate the water, oil and stuck liquid gasket.
• When replacing the hydraulic cylinder assembly mounting stud
bolts, apply liquid lock (Three Bond 1324 or equivalent) to “A”
portion of the stud bolt.
• Reassemble the hydraulic cylinder assembly to the tractor,
be sure to adjust the position control feedback rod and draft
control rod (if equipped). (See page 8-S12, S13.)
W9632587

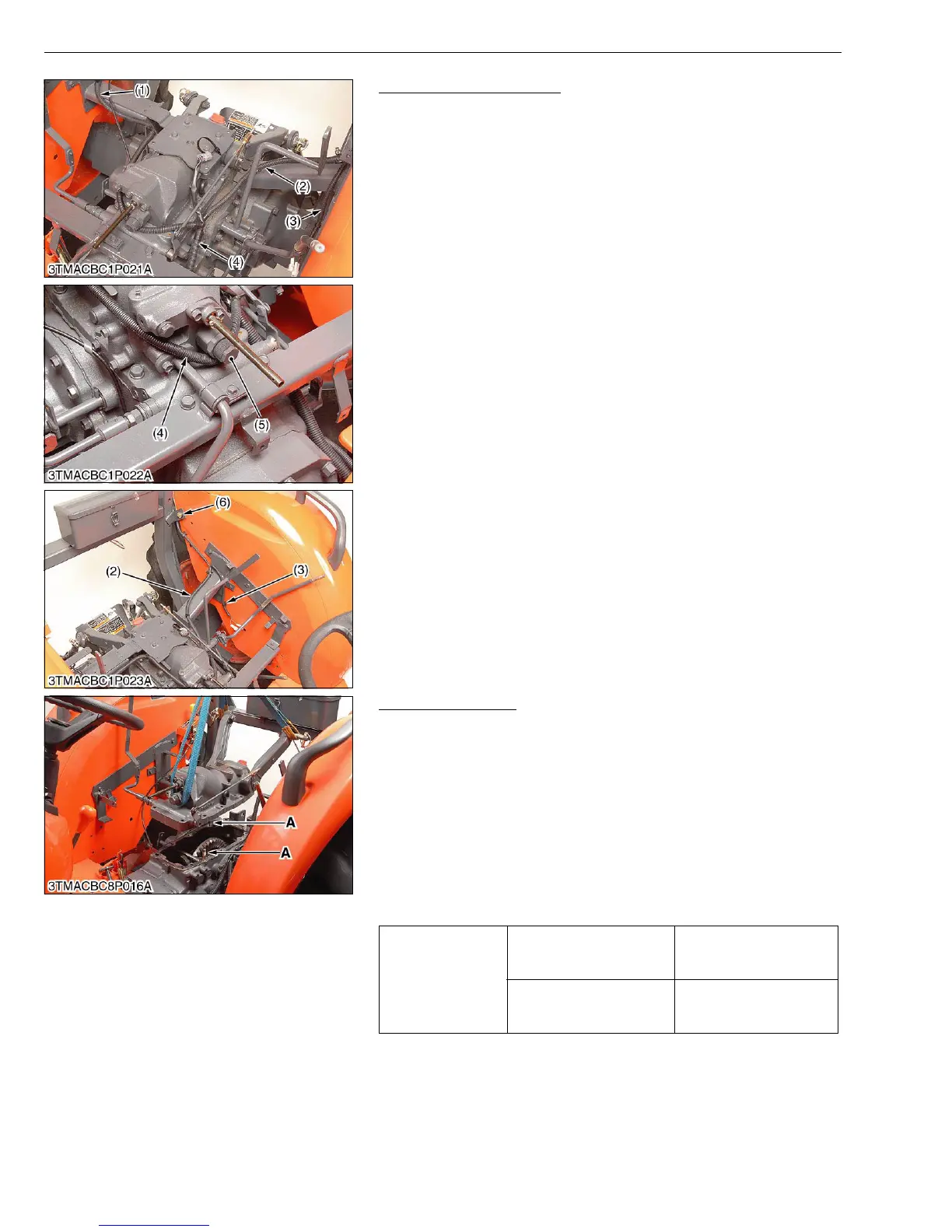

(1) Code Band
(2) Code Band
(3) Code Band
(4) Wiring
(5) Hydraulic Cylinder Safety Valve
(6) Code Band
Tightening torque
Hydraulic cylinder
assembly mounting stud
bolts
34.2 to 49.0 N·m
3.5 to 5.0 kgf·m
25.3 to 36.2 lbf·ft
Hydraulic cylinder
assembly mounting screws
and nuts
77.4 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
A : Stud
