HYDRAULIC SYSTEM
Hydraulic Rod and Hydraulic Piston

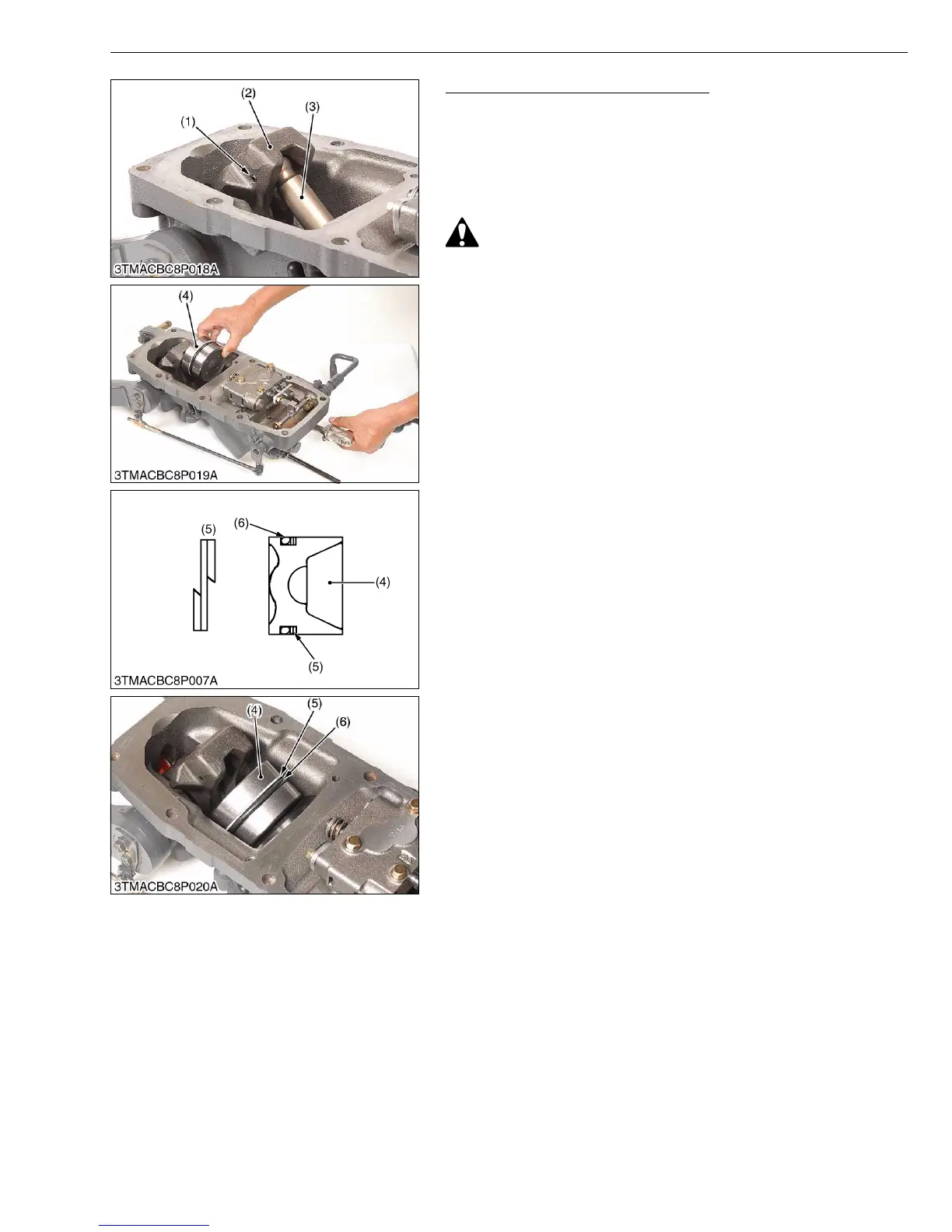

1. Tap out the spring pin (1).
2. Remove the hydraulic rod (3).
3. Remove the plug (screw head size: 17 mm) from front of
hydraulic cylinder.
4. Inject the compressed air through the plug hole, and take out the
hydraulic piston (4).
CAUTION
• Do not put your hand into the hydraulic cylinder block
because the hydraulic piston jumps out with a strong force,
which is dangerous
(When reassembling)
• Install the piston, noting O-ring (6) and the back-up ring (5). (See
figure).
• Apply grease to the piston bottom contacts with hydraulic rod.
• Apply transmission fluid to the cylinder, and then install the
hydraulic piston (4).
W1030125
(1) Spring Pin
(2) Hydraulic Arm
(3) Hydraulic Rod
(4) Hydraulic Piston
(5) Back-up Ring
(6) O-ring
