Kubota MX5100 - Page 394

8-S20
MX5100, WSM
HYDRAULIC SYSTEM

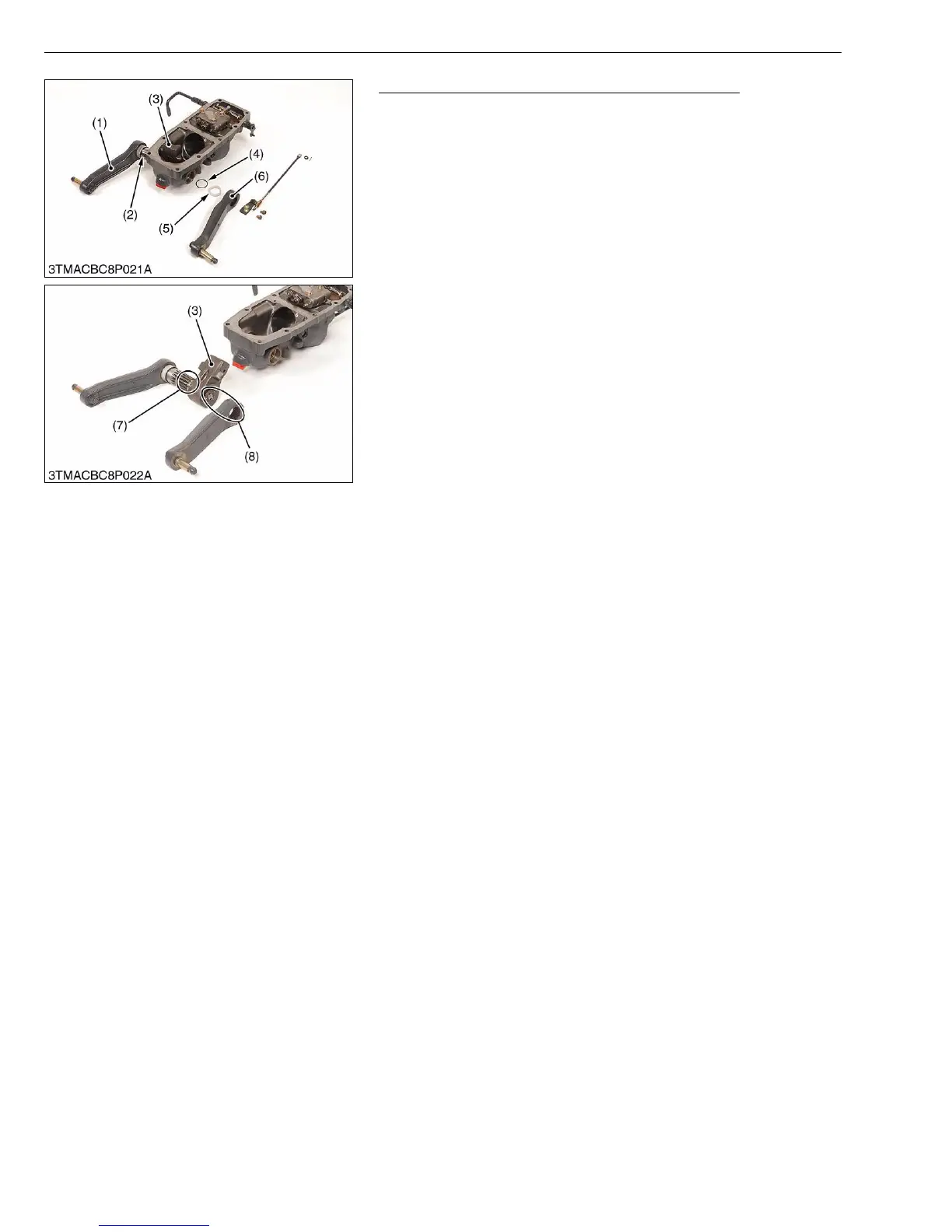

Lift Arm, Hydraulic Arm and Hydraulic Arm Shaft
1. Disconnect the feedback rod from feedback lever.
2. Remove the lift arm setting screws.
3. Remove the lift arm LH (4).
4. Draw out the hydraulic arm shaft (5) and lift arm RH (6) as a unit.
5. Take out the hydraulic arm (1).
6. Remove the collar (3) and O-ring (2).
(When reassembling)
• Align the alignment marks (7) of the hydraulic arm (1) and
hydraulic arm shaft (5).
• Align the alignment marks (8) of the lift arms (6), (4) and hydraulic
arm shaft (5).
• Apply grease to the right and left bushings of hydraulic cylinder
block and O-ring (2).
• Take care not to damage the O-ring (2).
W1031551
(1) Lift Arm RH
(2) Hydraulic Arm Shaft
(3) Hydraulic Arm
(4) O-ring
(5) Collars
(6) Lift Arm LH
(7) Alignment Mark (Hydraulic Arm Shaft
and Hydraulic Arm)
(8) Alignment Mark (Hydraulic Arm Shaft
and Lift Arm)
