MX5100, WSM
ELECTRICAL SYSTEM
■ PTO Lever “OFF”, Synchro-Shuttle Shift Lever “Neutral” and Seat “Vacant” : Engine does not Stop

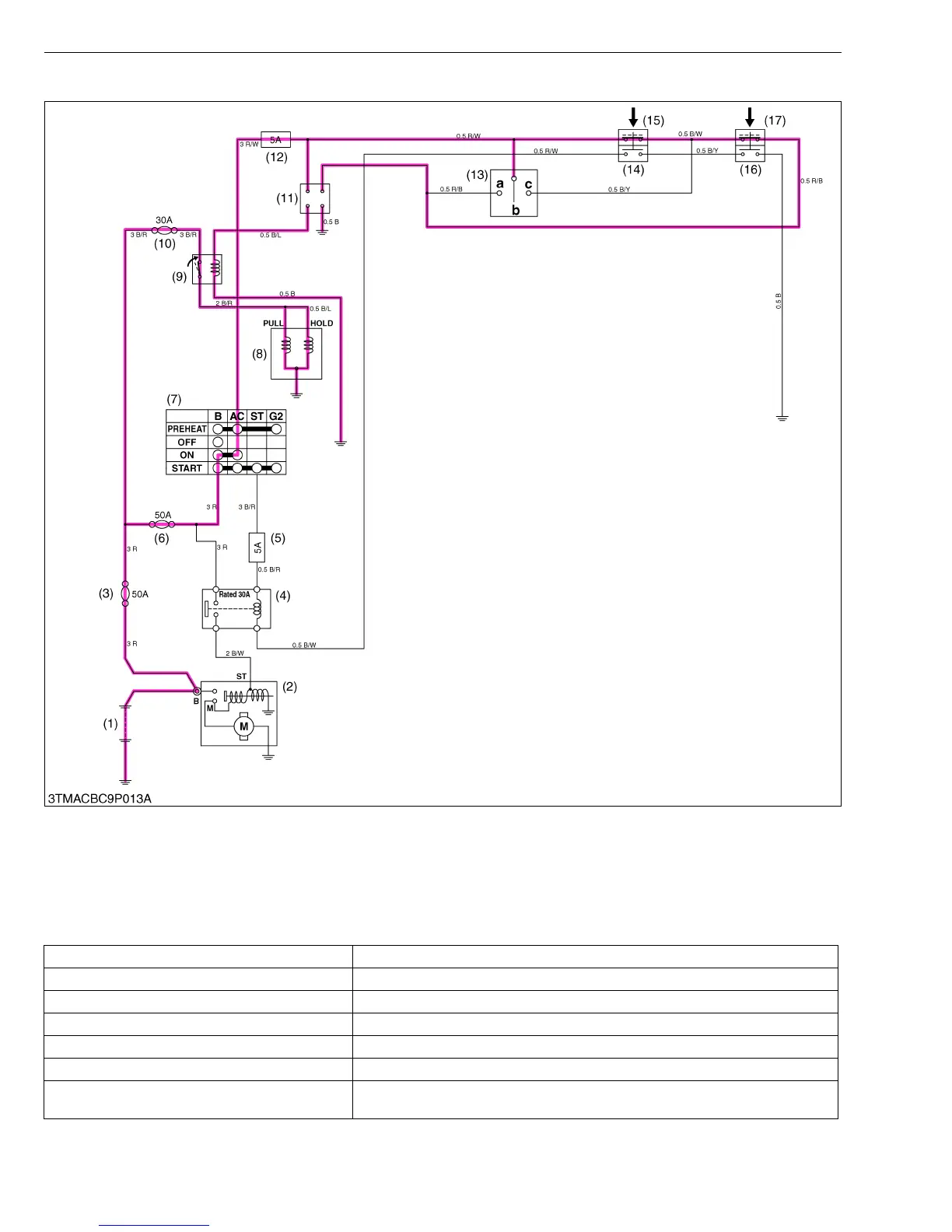

As shown in the above electric circuit, the battery voltage flows to the key stop solenoid. And the pulling and the
holding coil in the key stop solenoid is electrical magnet. The spring in the key stop solenoid is pulled, the key stop
solenoid rod does not push the injection pump control rack to “0” fuel injection position. And the engine still runs.
(1) Battery
(2) Starter
(3) Slow Blow Fuse (50A)
(4) Starter Relay
(5) Fuse (5A)
(6) Slow Blow Fuse (50A)
(7) Key Switch
(8) Key Stop Solenoid
(9) Key Stop Solenoid Relay
(10) Slow Blow Fuse (30A)
(11) OPC Timer
(12) Fuse (5A)
(13) Seat Switch
(14) PTO Neutral Switch 1
(15) PTO Neutral Switch 2
(16) Shuttle Lever Neutral Switch 1
(17) Shuttle Lever Neutral Switch 2
a : Seated
b : Vacant
c : Turn Over
PTO lever at “OFF” PTO neutral switch 2 (15) “ON”
Synchro-shuttle shift lever “Neutral” Shuttle lever neutral switch 1 (16) “ON”
Seat “Vacant” Seat switch (13) “OFF”
OPC timer (11) OPC timer switch (11) “ON”
Key stop solenoid relay (9) Key stop solenoid relay (9) switch “ON”
Key stop solenoid (8) Energized
Engine Engine does not stop
(control rack is not pushed to fuel “0” position by the key stop solenoid.)
