9-S28
MX5100, WSM
ELECTRICAL SYSTEM

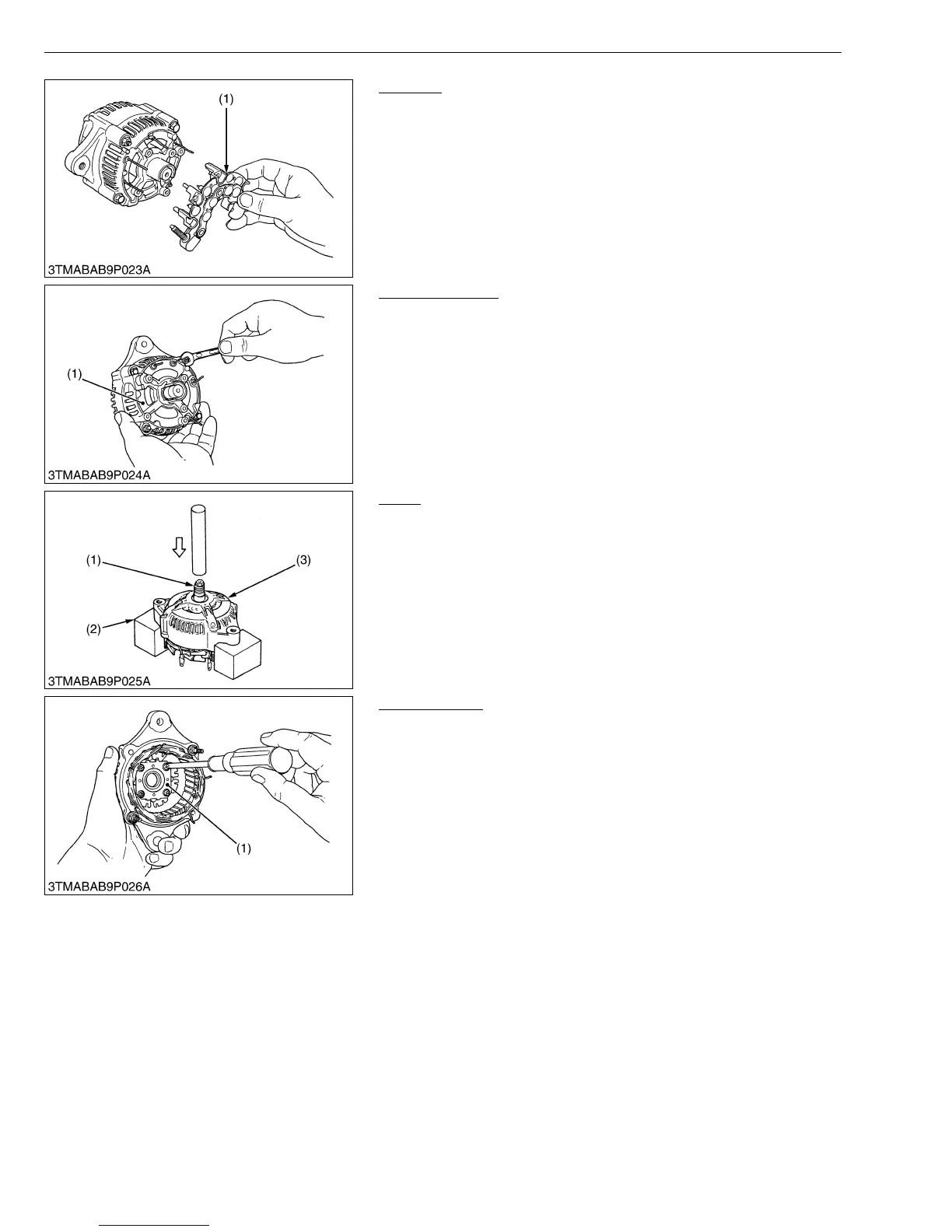

Rectifier
1. Remove the four screws holding the rectifier and the stator lead
wires.
2. Remove the rectifier (1).
W1136721
Rear End Frame
1. Unscrew the two nuts and two screws holding the drive end
frame and the rear end frame.
2. Remove the rear end frame (1).
W1161022
Rotor
1. Press out the rotor (1) from drive end frame (3).
• Take special care not to drop the rotor and damage the slip
ring or fan, etc..
W1136998
Retainer Plate
1. Unscrew the four screws holding the retainer plate, and remove
the retainer plate (1).
W1137353
(1) Rectifier
(1) Rear End Frame
(1) Rotor
(2) Block
(3) Drive End Frame
(1) Retainer Plate
