G-55
MX5100, WSM
G GENERAL

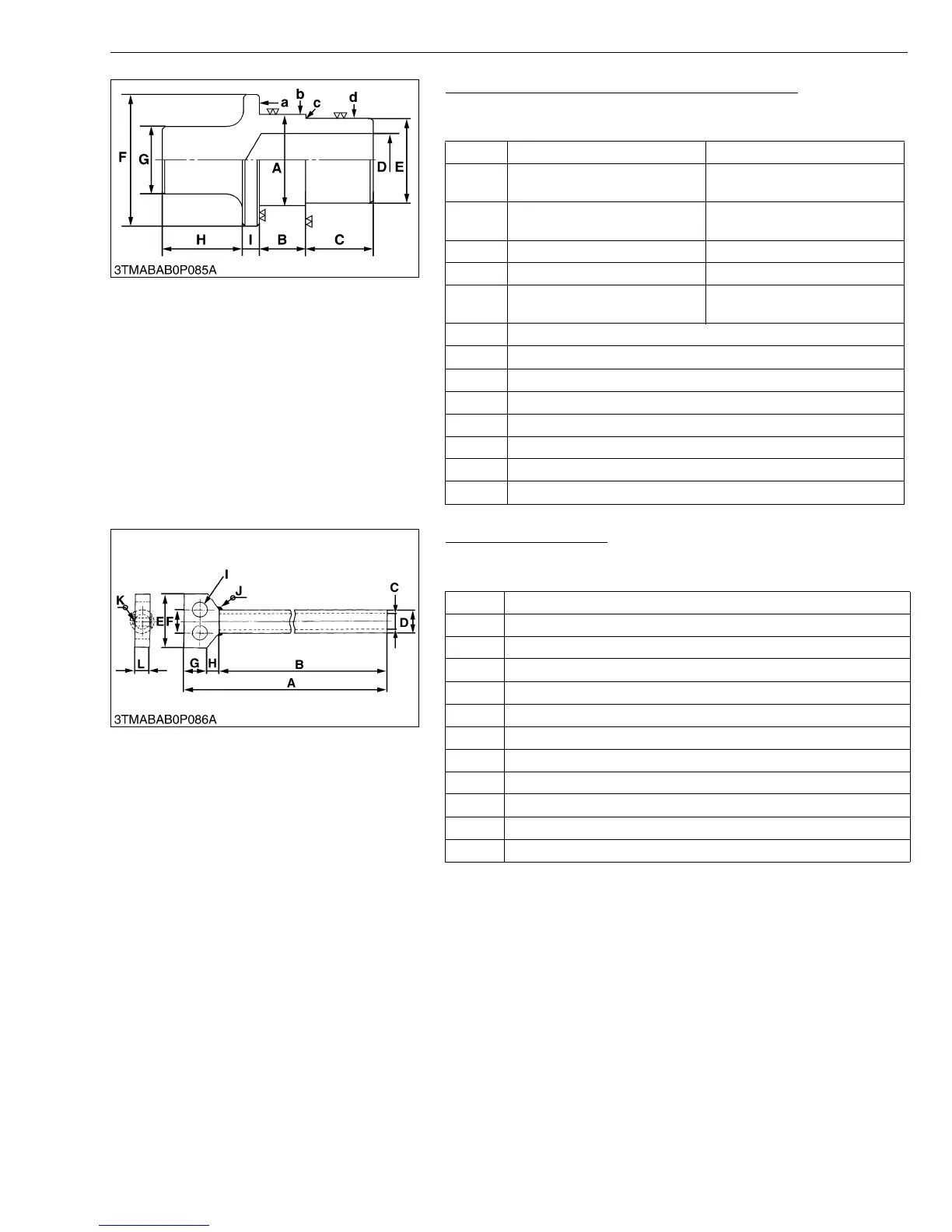

Hydraulic Arm Shaft Bushing Press-Fitting Tool
Application: Use for replacing the hydraulic arm shaft bushings in
the hydraulic cylinder body.
W10316550
Draft Control Test Bar
Application: Use for checking the lift range and floating range of
hydraulic draft control.
W10625190
Right Left
A
54.7 to 54.9 mm
(2.1535 to 2.1614 in.)
49.7 to 49.9 mm
(1.9567 to 1.9646 in.)
B
24.5 to 25.5 mm
(0.9646 to 1.0039 in.)
21.5 to 22.5 mm
(0.8465 to 0.8858 in.)
C 40 mm (1.57 in.) 40 mm (1.57 in.)
D 32 mm (1.26 in.) 30 mm (1.18 in.)
E
49.7 to 49.9 mm
(1.9567 to 1.9646 in.)
44.7 to 44.9 mm
(1.7598 to 1.7677 in.)
F 70 mm dia. (2.76 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)
I 10 mm (0.39 in.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
c 6.3 μm (250 μin.)
d 6.3 μm (250 μin.)
A 1045 mm (41.14 in.)
B 1000 mm (29.37 in.)
C 20 mm dia. (0.79 in. dia.)
D 30 mm dia. (1.18 in. dia.)
E 90 mm (3.54 in.)
F 30 mm (1.18 in.)
G 30 mm (1.18 in.)
H 15 mm (0.59 in.)
I 20 mm dia. (0.79 in. dia.)
J Weld all around
K Weld all around
L 20 mm (0.79 in.)
