G-56
MX5100, WSM
G GENERAL

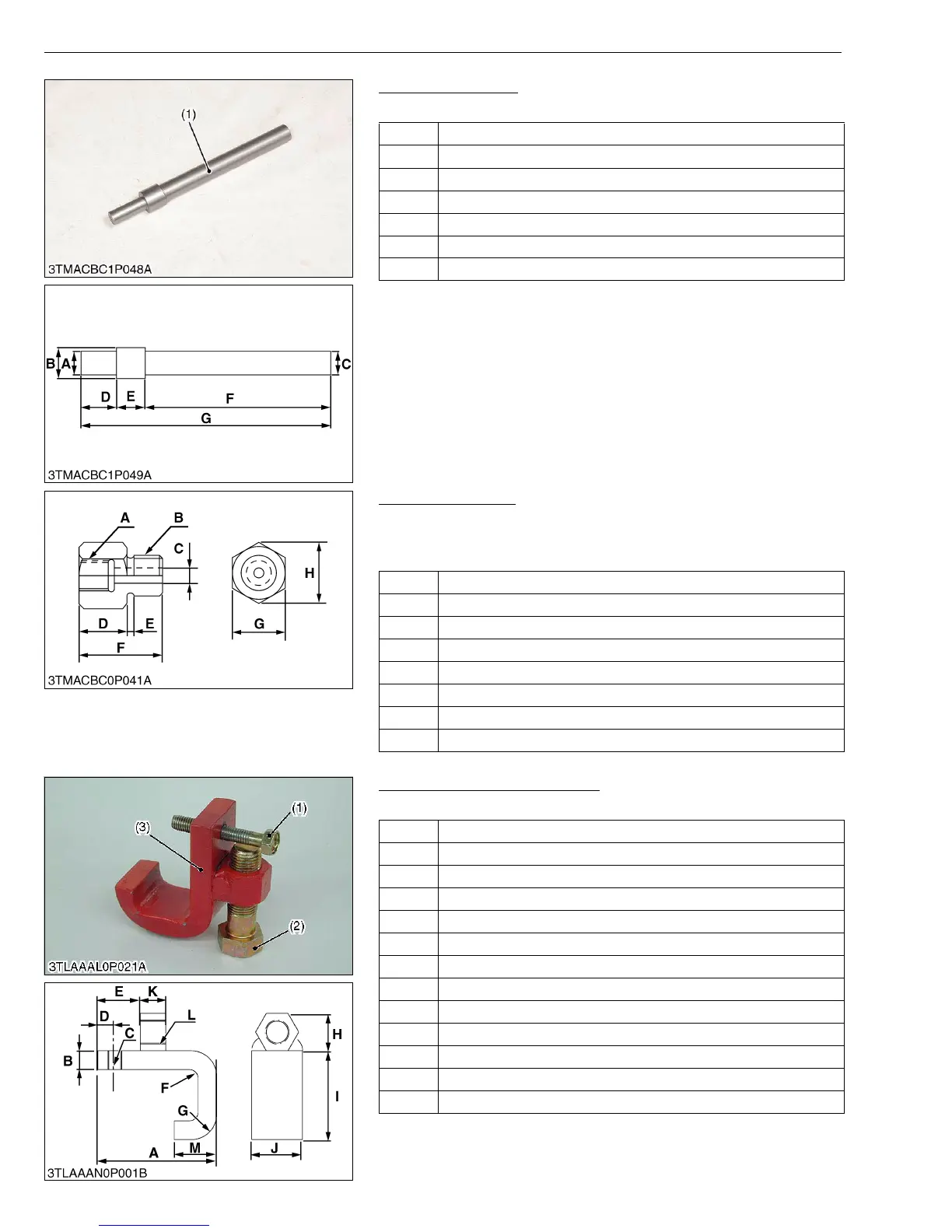

Clutch Center Tool
Application: Use for removing and installing the clutch assembly.
W11146660
Adaptor C (PS 3/8)
Code No.: 07916-50371
Application: Use for measuring HST and PTO clutch operating
pressure.
W11017660
Front Axle Rocking Restrictor
Application: Use for restricting front axle rocking.
W10410410
A 18.8 mm dia. (0.74 in. dia.)
B 31.7 mm dia. (1.25 in. dia.)
C 25.0 mm dia. (0.98 in. dia.)
D 50.0 mm (1.97 in.)
E 26.0 mm (1.02 in.)
F 200.0 mm (7.87 in.)
G 276.0 mm (10.87 in.)
(1) Clutch Center Tool
A PS 1/4
B PT 3/8
C 7 mm dia. (0.28 in. dia.)
D 20 mm (0.79 in.)
E 3 mm (0.12 in.)
F 35 mm (1.38 in.)
G 24 mm (0.94 in.)
H 27.7 mm (1.09 in.)
A 70 mm (2.8 in.)
B 11 mm (0.43 in)
C M8 x P1.25
D 15 mm (0.59 in.)
E 30 mm (1.2 in.)
F R5 mm (R0.2 in.)
G R15 mm (R0.59 in.)
H 22 mm (0.87 in.)
I 52 mm (2.0 in.)
J 30 mm (1.2 in.)
K 10 mm (0.39 in.)
L 25 mm (0.98 in.)
M 25 mm (0.98 in.)
(1) Screw M8 x P1.25 x L50 mm (2 in.)
(2) Screw M14 x P1.5 x L50 mm (2 in.)
(3) Front Axle Rocking Restrictor
