2NM/2NX/2NY/2NZ/2P0/2P6
1-5-17

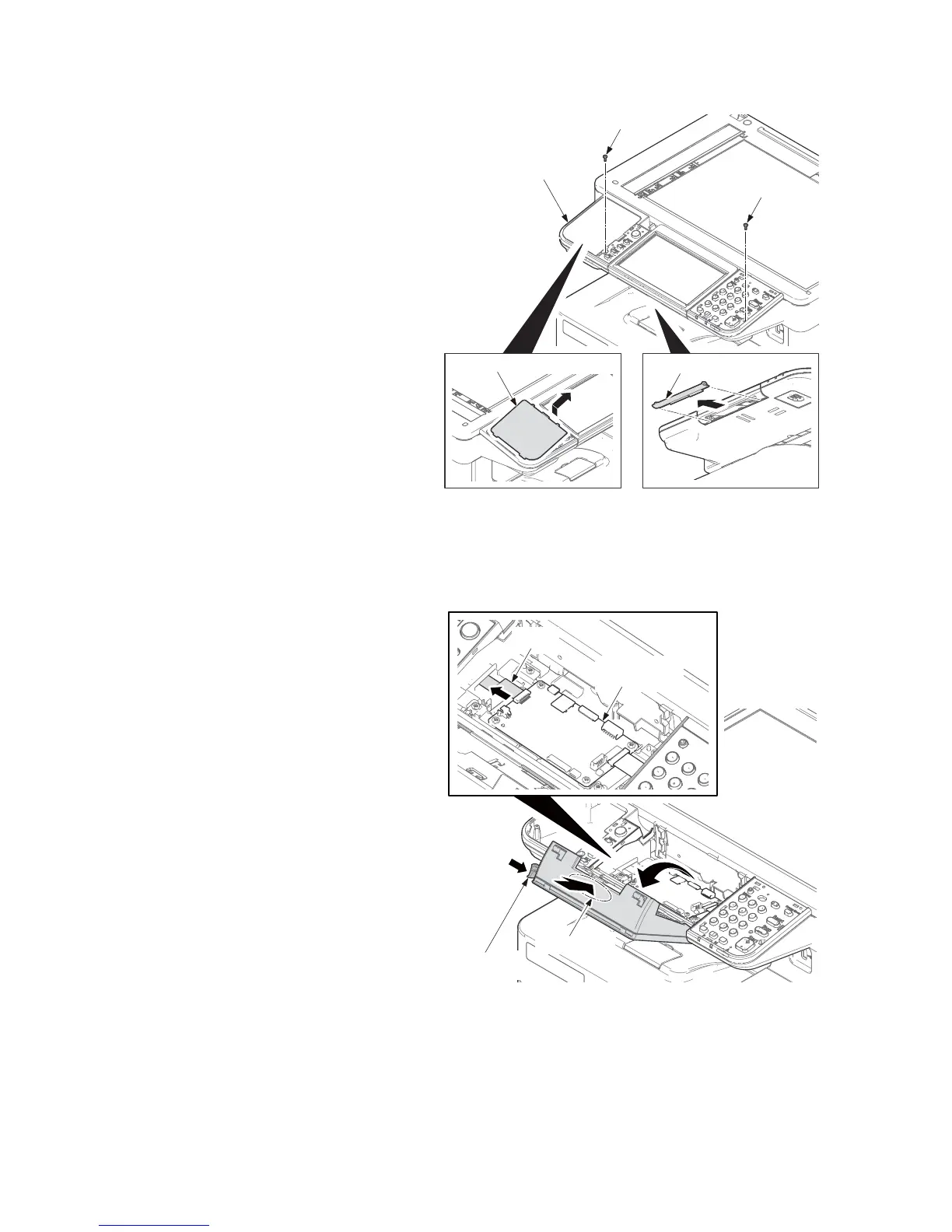

5. Remove the card reader cover and LCD
lower cover.
6. Remove two screws.
Figure 1-5-25
7. Pull the LCD up forward during pressing
the lock lever and bending the LCD
cover.
8. Remove the FFC from the operation
panel PWB.
Figure 1-5-26
Screw
Screw
LCD lower cover
Card reder cover
Operation panel
assembly
LCD cover
Lock lever
Operation
panel PWB
FFC
