Kyocera ECOSYS M3040dn Service Manual

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-18

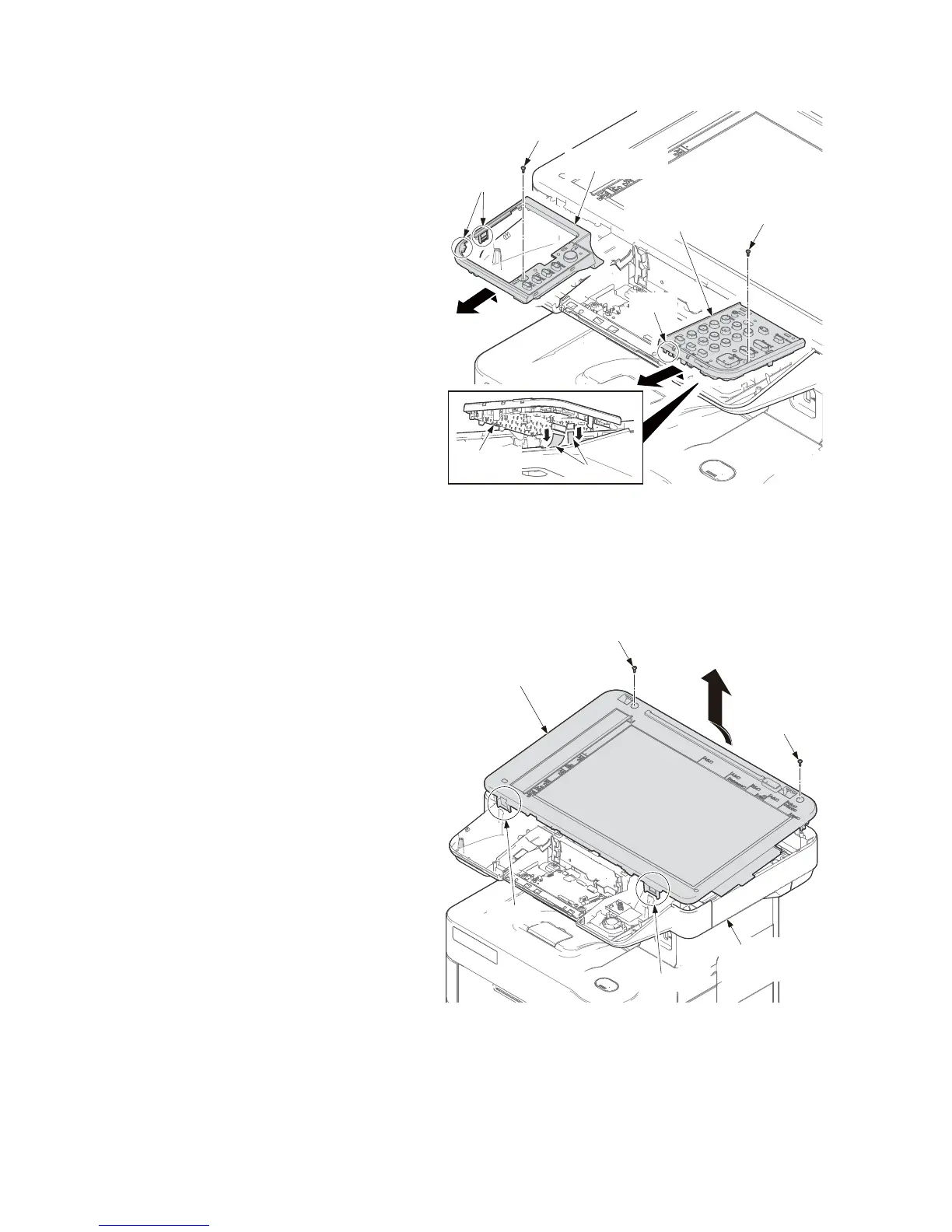

9. Release two hooks and remove the left
key cover forward.
10. Remove two FFCs from the Key Right
PWB.
11. Release the hook and remove the right
key cover forward.
Figure 1-5-27
12. Remove two screws.
13. Release two hooks and remove the ISU
upper assembly from the image scan-
ner unit.
Figure 1-5-28
Screw
FFCs
Screw
Hooks
Hook
Right key cover
Left key cover
Key-Right
PWB
Screw
Screw
ISU upper assembly
scanner unit
Hook
Hook
