2NM/2NX/2NY/2NZ/2P0/2P6

1-5-19

14. Remove the drive belt from two pulleys.

15. Remove the carriage assembly , ISU

shaft and the lower ISU frame upward.

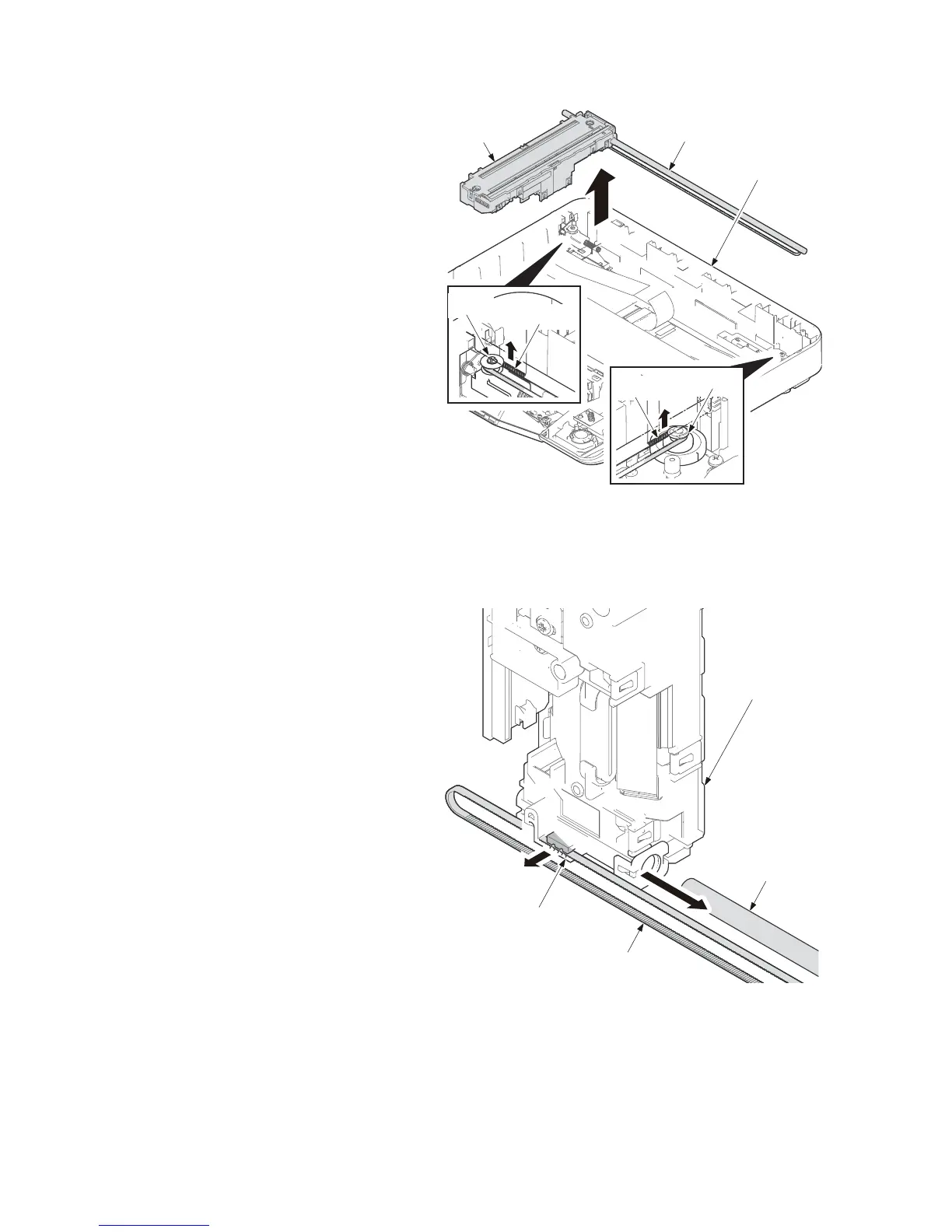

Figure 1-5-29

16. Pull the carriage assembly out.

17. Remove the drive belt from the holding

part of the carriage assembly.

18. Check or replace the exposure lamp

and refit all the removed parts.

Figure 1-5-30

Pulley

Drive belt

Carriage

assembly

ISU shaft

Lower ISU frame

ISU shaft

Drive belt

Holding part

Carriage

assembly
