2NM/2NX/2NY/2NZ/2P0/2P6

1-2-22

6. Connect the USB connector to the USB

interface slot.

7. Fix the IC card reader holder using a

screw.

8. Refit all the removed parts.

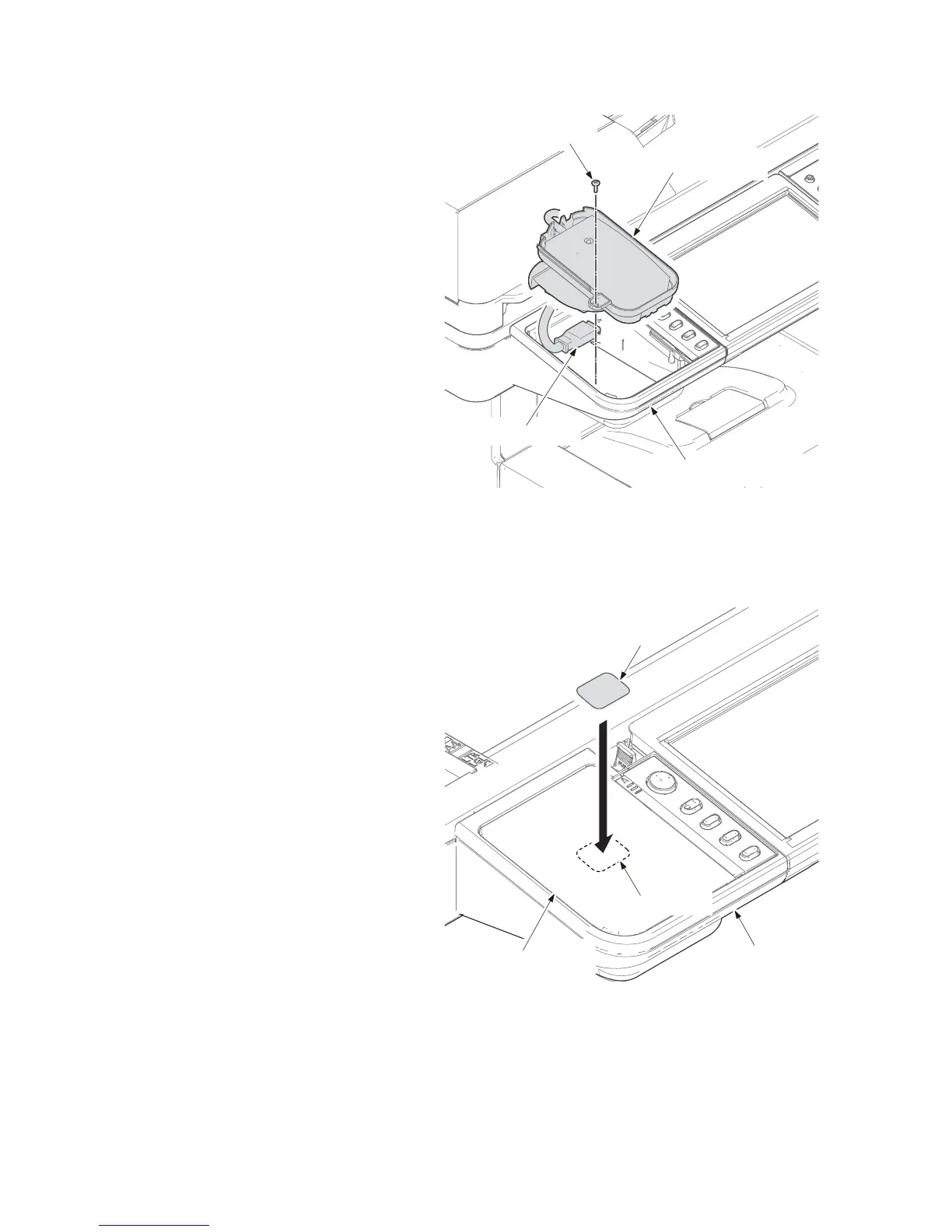

Figure 1-2-40

9. Affix a label on the ICcar reader cover

aligning it with the positioning mark.

Figure 1-2-41

Screw

IC card reader holder

Operation panel assembly

USB connector

Label

Positioning mark

IC card reader cover

Operation

panel assembly

Main Page
