3-40 SECTION 3 - OPERATING INSTRUCTIONS
3:76. DCART software has screen editors for all components of PROGSCHED; programs, schedules, and
start schedule times. DCART has two copies of PROGSCHED available for display in the editors, (1) active
PROGSCHED is a copy of the PROGSCHED on the Control computer. The active PROGSCHED can be only
viewed but not modified. (2) edited PROGSCHED can be modified using editor controls. DCART allows sin-
gle-click switch between active and edited copies of PROGSCHED (see Figure 3-29). The active copy of
PROGSCHED is displayed grayed-out to indicate that it is impossible to edit it.

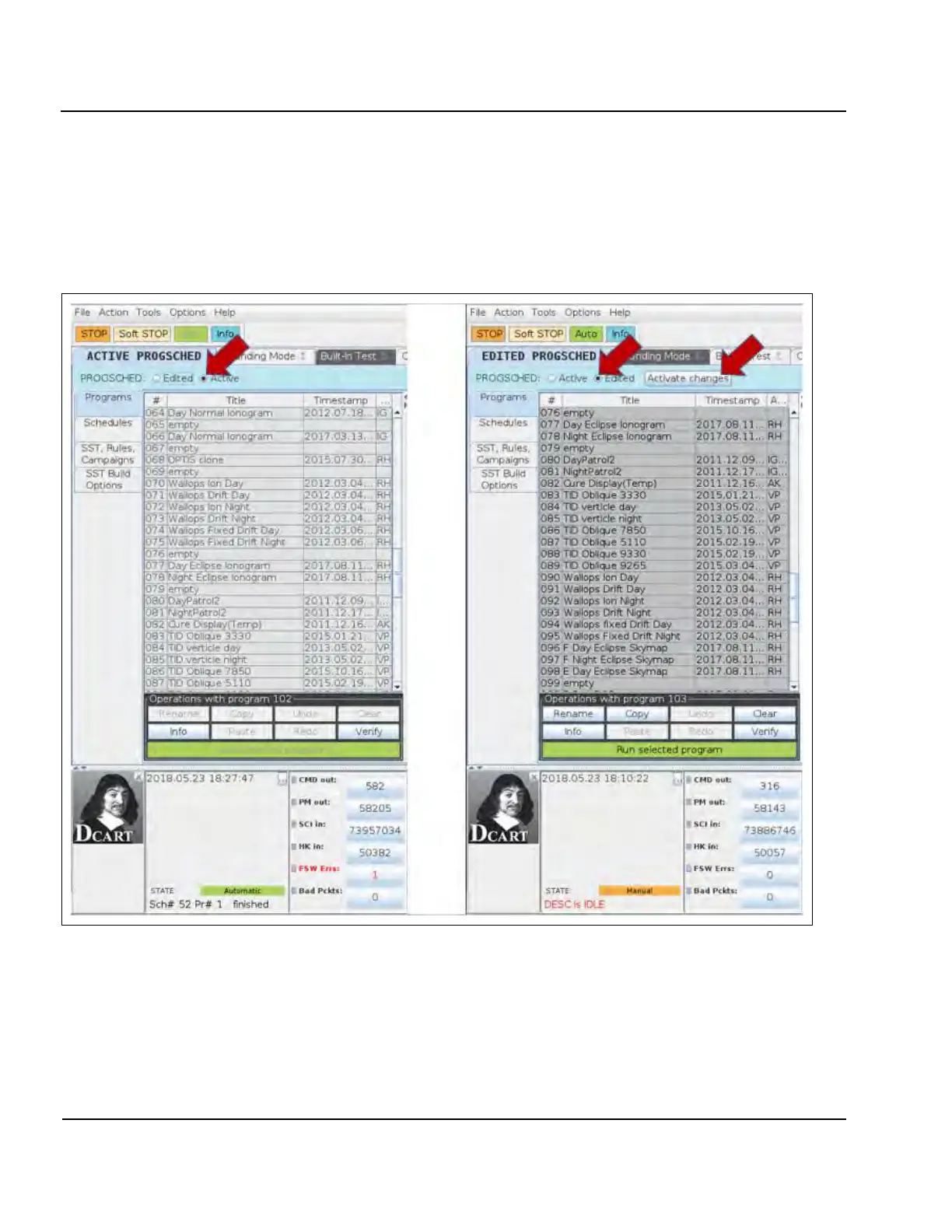

(a) Active PROGSCHED shown in the editor
(b) Edited PROGSCHED shown in the editor
Figure 3-29: Display of the (a) Active and (b) Edited PROGSCHED in DCART
