GETTING STARTED MANUAL

WRXi-A-GSM-E Rev A 21

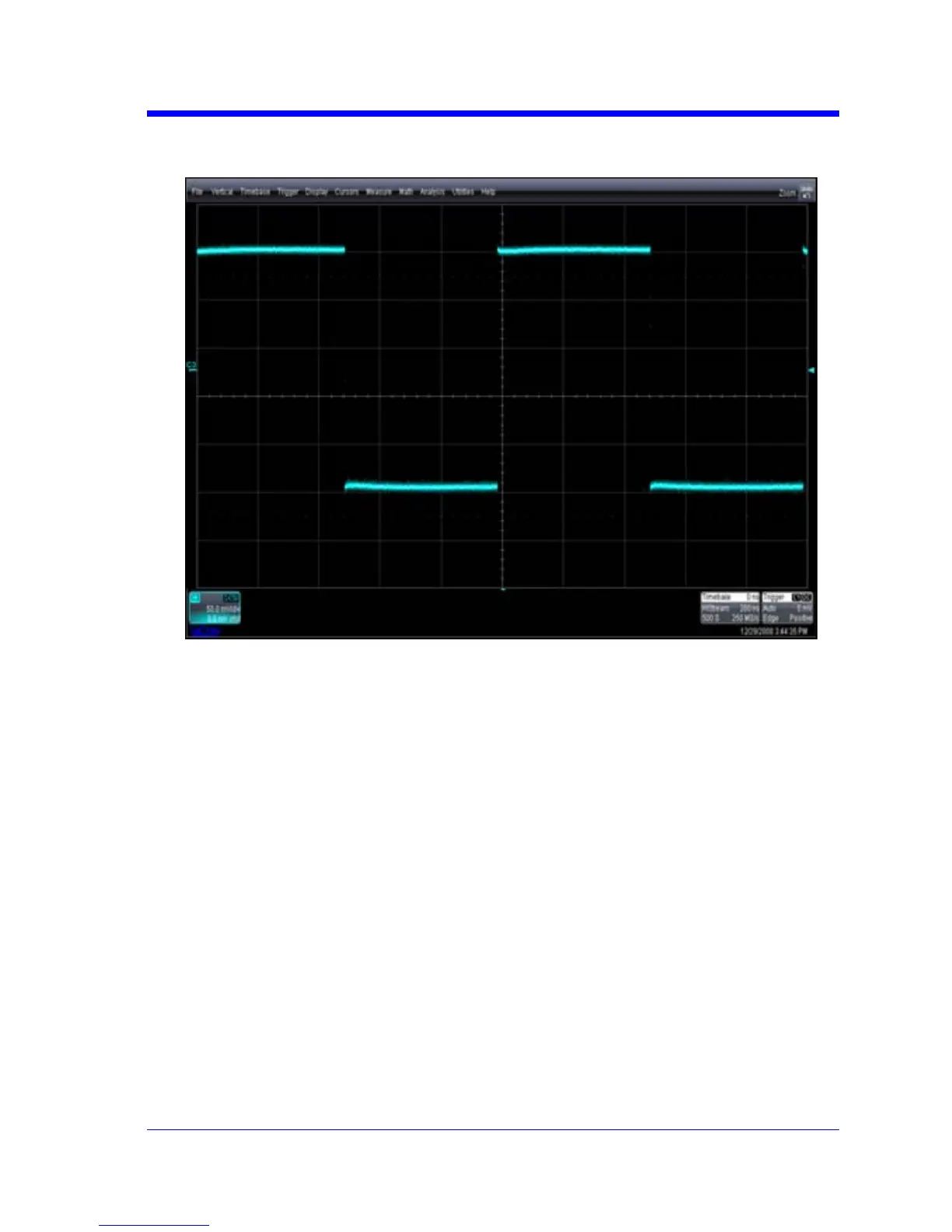

3. Adjustthetrimpotattheconnectorendoftheprobeuntilthesquare

waveisasflataspossible.
