WAVERUNNER Xi-A AND MXi-A SERIES
66 WRXi-A-GSM-E Rev A

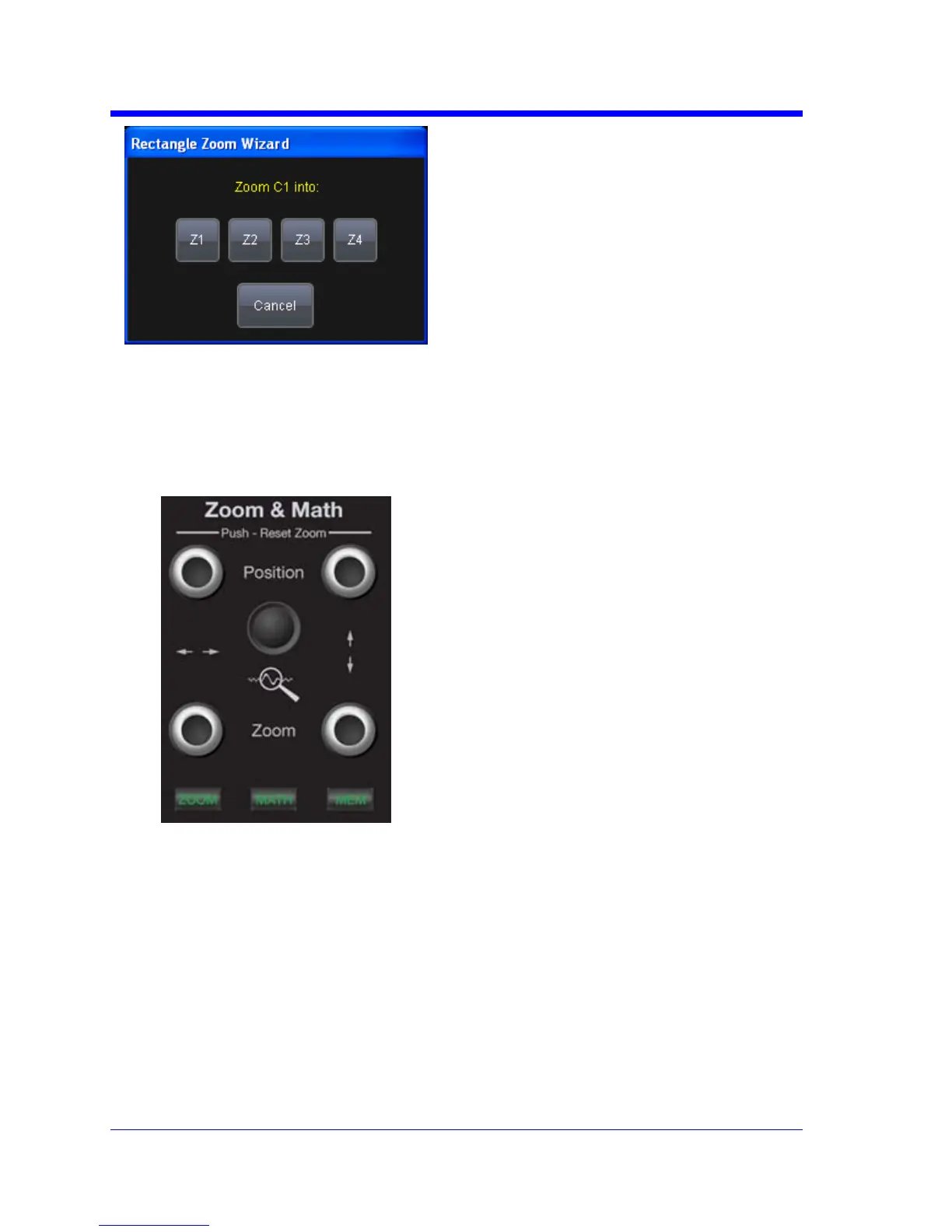

2. Ifthetracesarenonchannel,or
acombinationofchanneltraces
andmathormemorytraces,a
RectangleZoomWizard
appears.Selectthetracestobe
zoomedonthepopup.
Channelzoomsareshownona
separategrid.Thezoomofthe
mathormemorytraceappears
onthesamegr
idasthesource
trace.
3. Turnthefrontpanelzoom
Positionknobstoadjustthe
verticalandhorizontalposition
ofthezoom.
TurnthefrontpanelZoom
knobstocontroltheverticaland
horizontalmagnificationfactor
ofthezoom.
TurningZoomOff
1. Touchthetracelabelforthezoomyouwanttoturnoff.
2. TouchtheTraceOncheckboxtodeletethecheckmarkanddisablethe
zoomtrace.
SAVEANDRECALL
SavingandRecallingOscilloscopeSettings
Youcansaveorrecallsettingstoorfromharddisk,floppydisk,orLANlocations.
