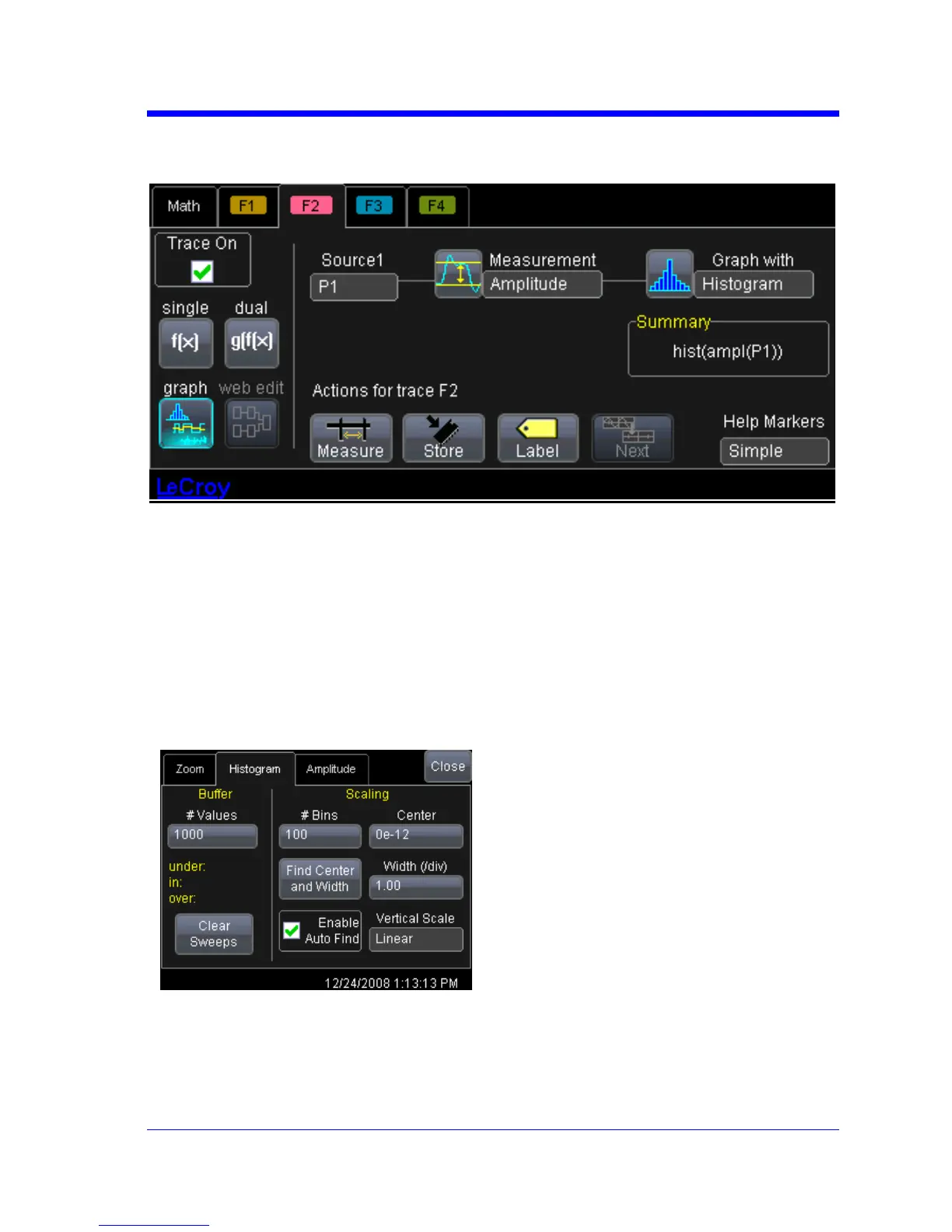

From Math Dialog

1. TouchMathÆMathSetupfromthemenubar.
2. TouchoneoffunctiontabsF1throughFx.Thenumberofmathtraces
availabledependsonthesoftwareoptionsloadedonyouroscilloscope.
3. TouchtheGraphbutton.
4. TouchinsidetheSource1fieldandselectasourcefromthepop‐upmenu.
5. Touchinsideth
eMeasurementfieldandselectaparameterfromthepop‐
upmenu.
6. TouchinsidetheGraphwithfieldandselectHistogramfromthepop‐up
menu.

7. Inthedialogtothe
right,touchthe
Histogramtab.
8. UnderBuffer,touch
insidethe#Valuesfield
andenteravalue.
9. UnderScaling,touch
insidethe#Binsfield
andenteravaluefrom
20to2000.
10. TouchtheFindCenter
andWidthbuttonto
centerthehistogram.


