LeCroy WaveRunner Xi-A User Manual

GETTING STARTED MANUAL
WRXi-A-GSM-E Rev A 45
SerialDecodeandDecodeSetup
Thesedialogsprovidetheabilitytosettheoscilloscopeupforprotocoldecodingof
serialdatamessages,withdisplayoftheprotocoldataoverlaidonthesignal.They
alsoallowquickandeasyaccesstooscilloscopezooming,searching,tabledisplay,
andtableexport.
Theserialdecodeanddecodesetupdialogsareaccessedinanyth
efollowingways:

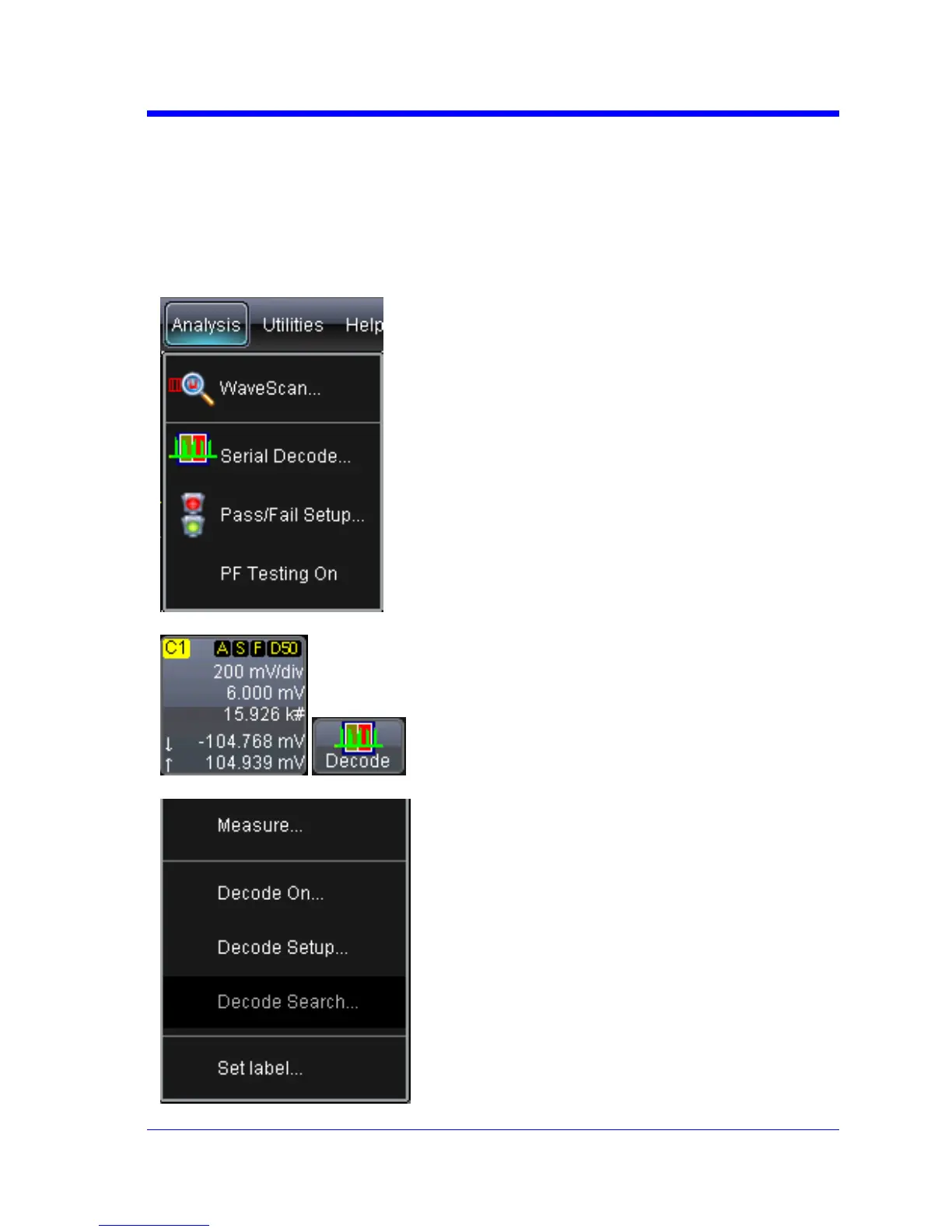

1. TouchAnalysisÆSerialDecode...fromthe
menubar.
2. TheSerialDecodesummarydialogisshown
andprovidesaccesstoDecodeSetup.
 

•
TouchtheChannelorMemoryDescriptor
Boxtoopentherespectivedialogbox,and
touchtheDecodebuttoninthebottom
toolbar.
•
TouchaChannel,Memory,orMathtrace
toopenapop‐updialogthatdisplaysa
shortcuttotheDecodeSetupdialogbox
