GETTING STARTED MANUAL
WRXi-A-GSM-E Rev A 35

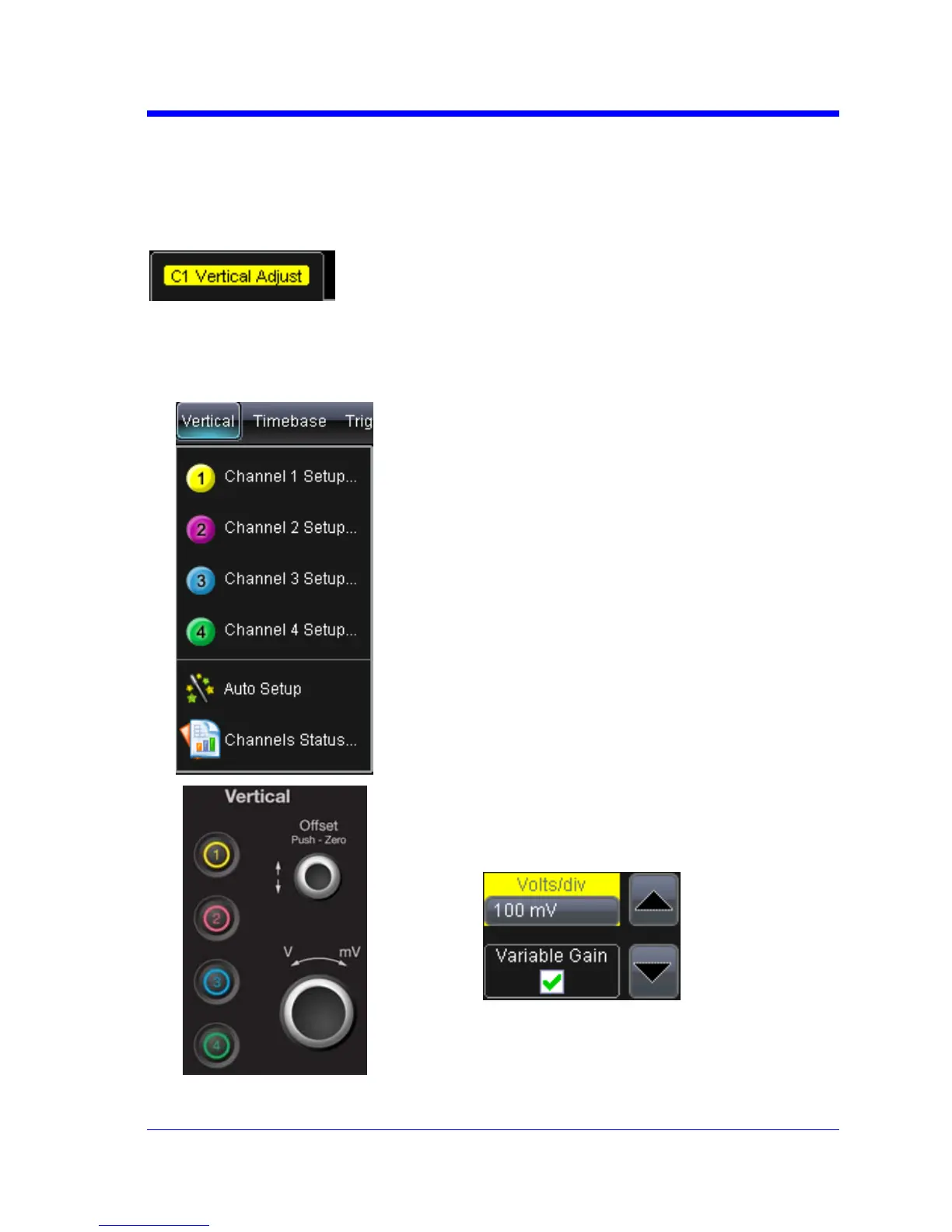

Wheneveryouturnonachannelormathtracefromthemenubaratthetopofthe
screen,thedialogatthebottomofthescreenautomaticallyswitchestothevertical
setupormathsetupdialogforthatselection.Youcanthenconfigureyourtraces.
Thechannelormathtracenu
mberappearsinthetaboftheappropriatedialog,
signifyingthatallcontrolsandfieldsarededicatedtotheselectedtrace:
VERTICALSETTINGSANDCHANNELCONTROLS
AdjustingSensitivity
1. TouchVertical Æ Channel1,for
example,fromthemenubar.
TouchinsidetheTraceOncheckboxto
displaythetrace.Or,usetheVERTICAL
frontpanelbuttonstoturniton.
2. Turnthevoltsperdivisionknob.Oryou
cantouchinsidetheVolts/Divfieldand
typeinavalueusingthepopupkeypad.
