GETTING STARTED MANUAL
WRXi-A-GSM-E Rev A 81
Setting Up Pass/Fail Testing
INITIALSETUP

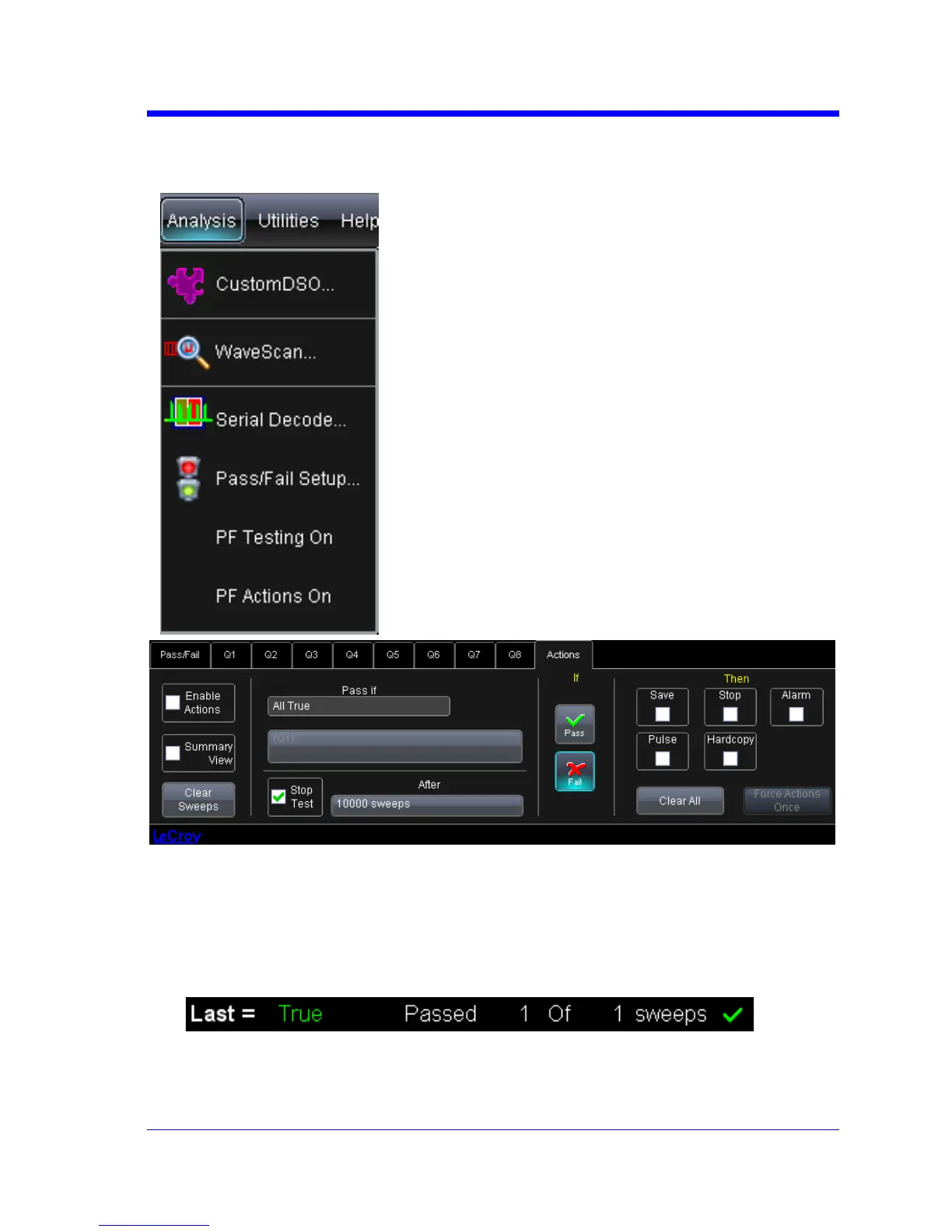

1. TouchAnalysisÆ Pass/Fail
Setupfromthemenubar.
2. TouchtheActionstab.
3. TouchtheEnableActionscheckbox.Thiscausestheactionsyouselectto
occurdependingonyourwaveform'spassingorfailingatest.
4. TouchtheSummaryViewtoenablealineoftextthatshowsconciselythe
statusofyourlastwaveformandkeepsaru
nningcountofhowmany
sweepshavepassed.
5. TouchinsidethePassIffield,andselectaBooleanconditionfromthepop
upmenu.
