WAVERUNNER Xi-A AND MXi-A SERIES
64 WRXi-A-GSM-E Rev A

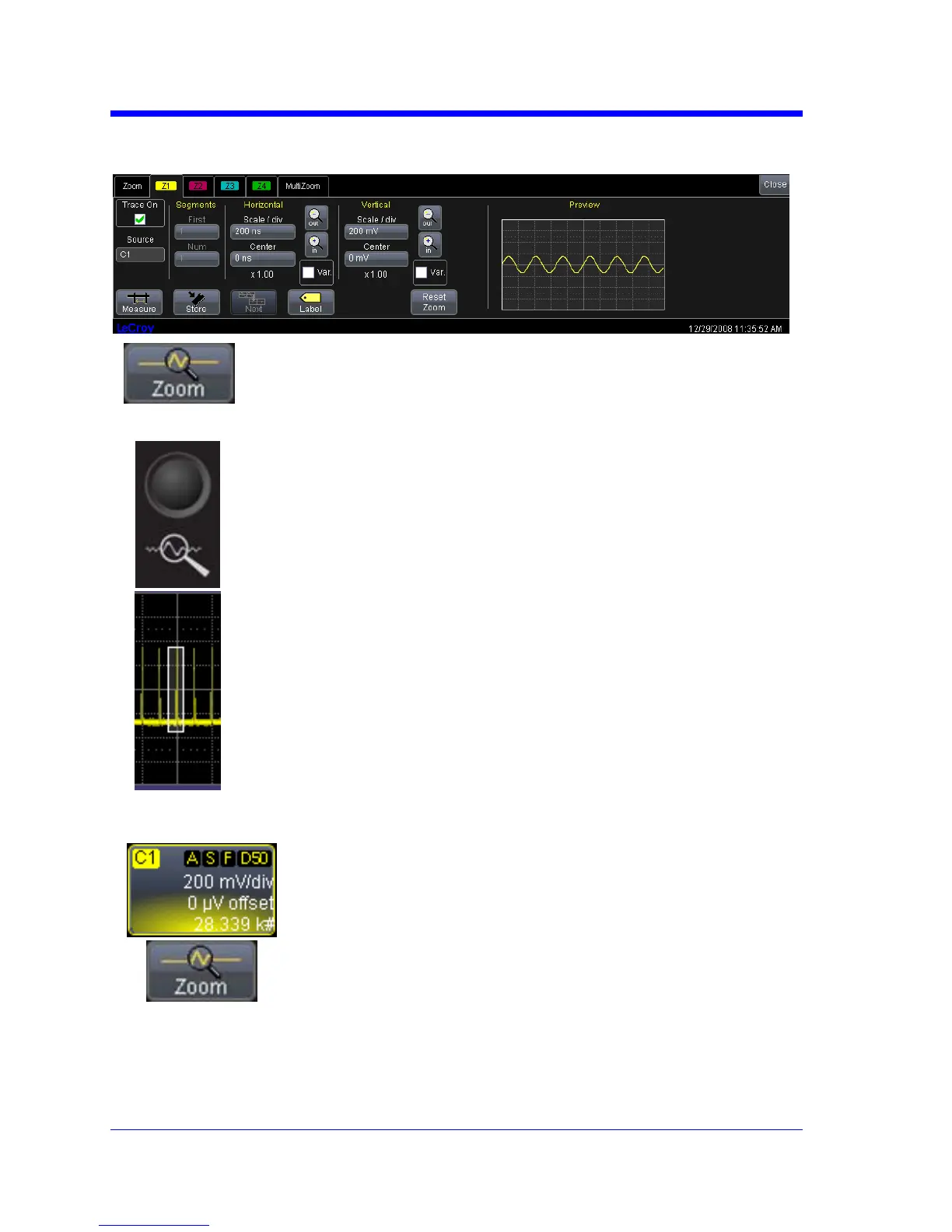

ZoomingWaveforms
TheZoombuttonappearsasastandardbuttonatthebottomof
thechannelCxVerticalAdjustsetupdialogifyouwanttocreatea
zoomtraceofyourinputwaveform.Thezoomtracecreatedby
thismethodisdesignatedZ1toZ4.
ThefrontpanelQuickZoombuttoncreatesmultiplezooms,one
foreachdisplayedinputchannel.Thezoomtracescreatedbythis
methodaredesignatedZ1toZ4.
Atanytime,youcanalsozoomaportionofawaveform,or
multiplewaveforms,bytouchinganddraggingarectanglearound
anypartoftheinputwaveform.Thezoomtracesizesitselftofit
thefullwidthofthegrid.Thedegreeofmagnification,therefore,
dependsonthesizeofth
erectanglethatyoudraw.
Whenyouzoomawaveformbythismethod,arepresentationof
thezoomedareaisshowninathumbnailpreviewintheZxdialog.
Zooming a Single Channel
1. Touchthe channeltracelabelforadisplayed
channel.
2. Touch theZoom buttonatthebottomoftheCx
VerticalAdjustdialog.Azoomtraceofthe
selectedchannel(oneofZ1toZ4)iscreatedona
separategrid.
