GETTING STARTED MANUAL
WRXi-A-GSM-E Rev A 23
FrontPanelButtonsandKnobs
ThecontrolbuttonsoftheWaveRunnerXiSeriesfrontpanelarelogicallygrouped
intoanalogandspecialfunctionareas.Analogfunctionsareincludedinthe
Horizontal,Trigger,andVerticalgroupsofcontrolbuttonsandknobs.
Thefollowingtableprovidesanexplanationofthefrontpanelpushbuttonsand
knobs:

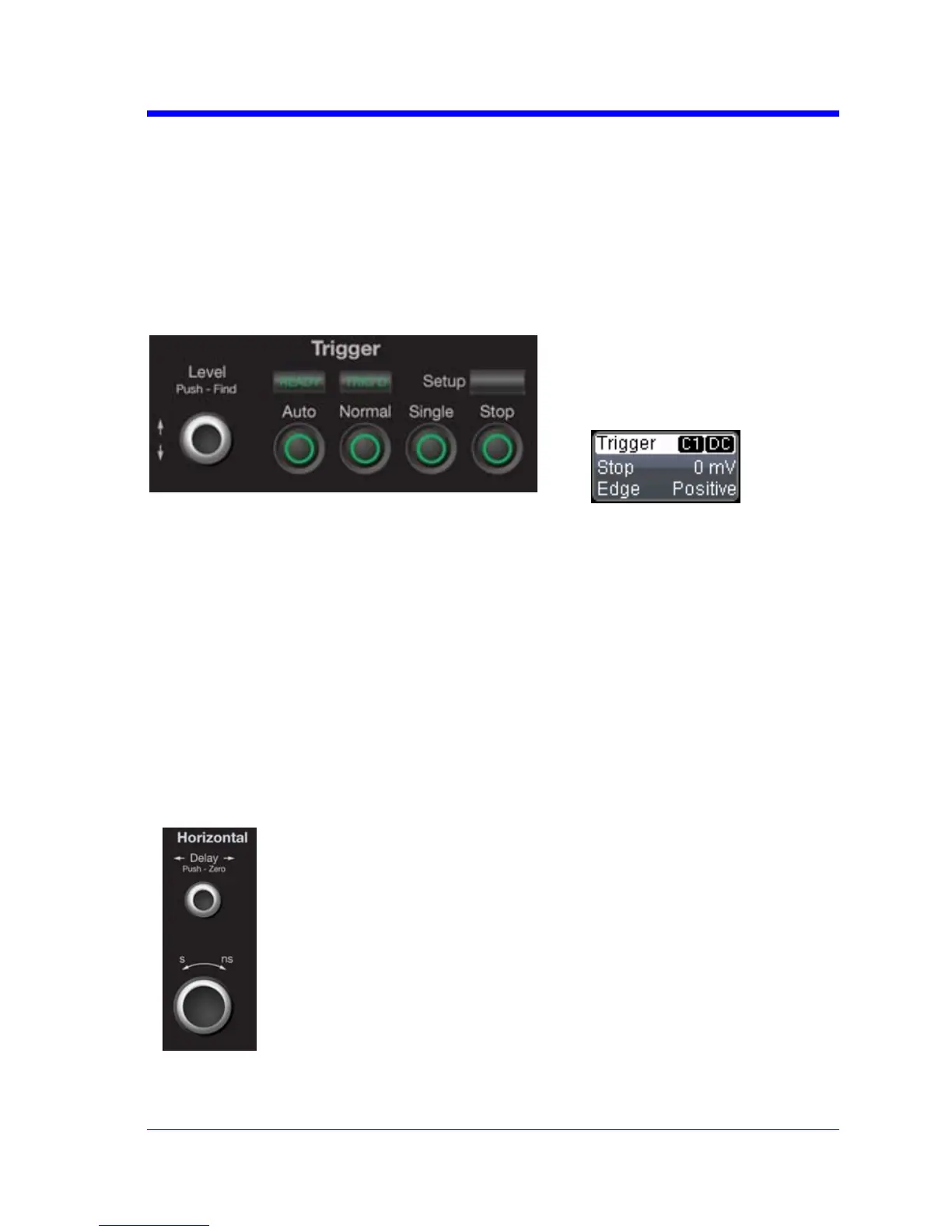

TriggerControls
LEVEL‐Selectsthetrigger
thresholdlevel.TheLevelis
indicatedintheTrigger
descriptorlabel:
PushtheLEVELknobtohavetheoscilloscopefindthelevelautomatically.
SETUP‐Displaysthetriggersetupdialog.Pushthebuttonagaintoclosethe
dialog.
AUTO - Triggerstheoscilloscopeafteratimeout,evenifthetriggerconditions
arenotmet.
NORMAL -Triggerstheoscilloscopeeachtimeasignalispresentthatmeetsthe
conditionssetforthetypeoftriggerselected.
SINGLE - Armstheoscilloscopetotriggeronce(singleshotacquisition)when
theinputsignalmeetsthetriggerconditionssetforthetypeoftriggerselected.
Iftheoscilloscopeisalreadyarmed,itforcesatrigger.
STOP ‐Preventstheoscilloscopefromtriggeringonasignal.
HorizontalControls
DELAY - Horizontallypositionstheoscilloscopetraceonthe
displaysoyoucanobservethesignalpriortothetriggertime.
Pushthebuttontoresetthedelaytozero.Asecondpush
returnsthedelaytotheprevioussetting.Delayadjuststhepre‐
andposttriggertime.
TIME/DIVISION‐Setsthetime/divisionoftheoscilloscope
timebase(acquisitionsystem).
