GETTING STARTED MANUAL
WRXi-A-GSM-E Rev A 79
Pass/FailTesting
Comparing Parameters
First,touchAnalysisÆPass/FailSetupfromthemenubar.
EachPass/Failinput(Qx)cancompareadifferentparameterresulttoauser
definedlimit(orstatisticalrange)underadifferentcondition.

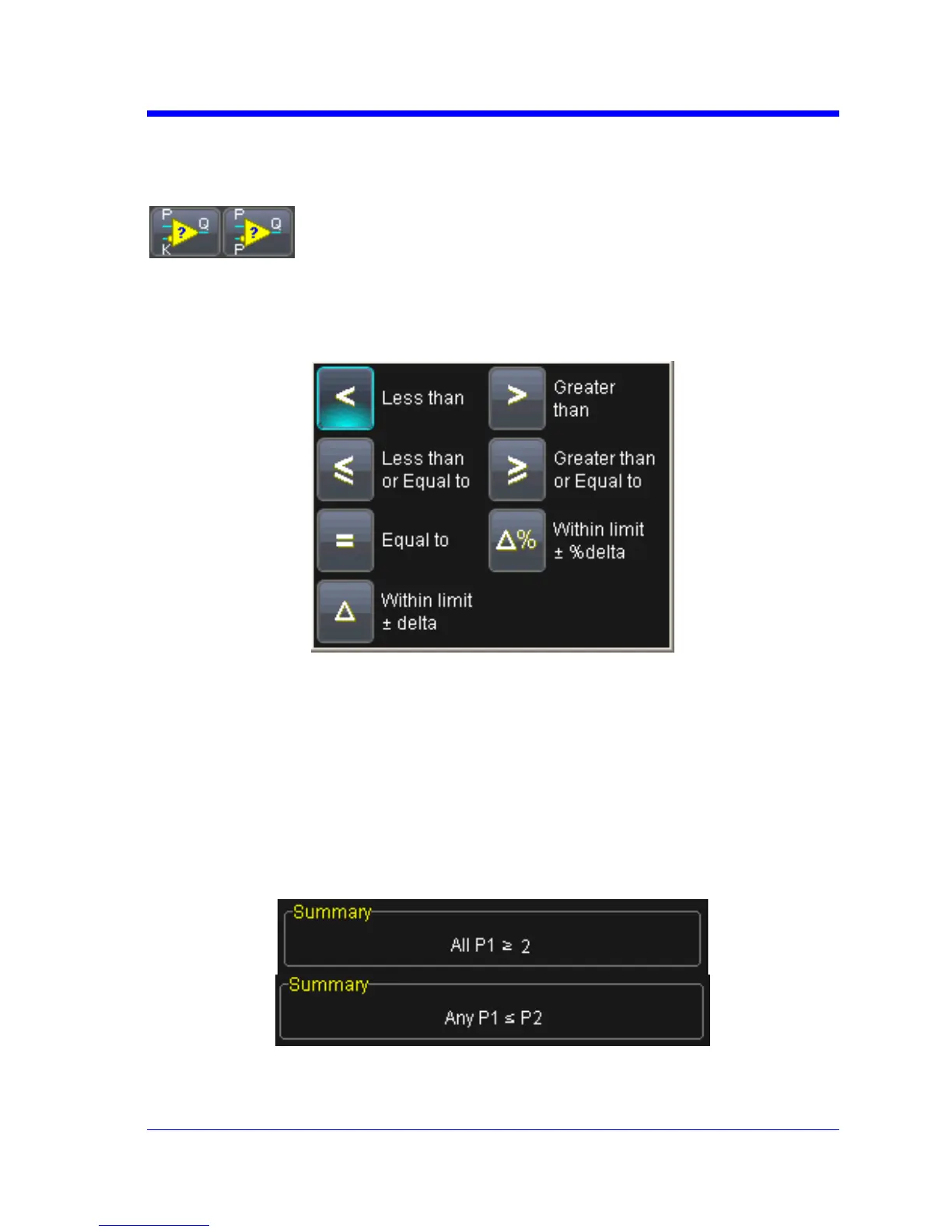

Theconditionsarerepresentedbythesecomparisonoperators:
Atthetouchofabutton,testresultscanalsobecomparedtothesestandard
statisticallimits:
currentmean
mean+1SD
mean+3SD
InDualParameterComparemode,youcancompareparameterresultsmeasured
ontwodifferentwaveforms.Youcansetyourtesttobetr
ueifAnywaveformorAll
waveformsfitthecriterionstipulatedbythecomparisoncondition.Yoursetupis
convenientlyshownintheSummaryboxoftheQxdialog.Forexample:
