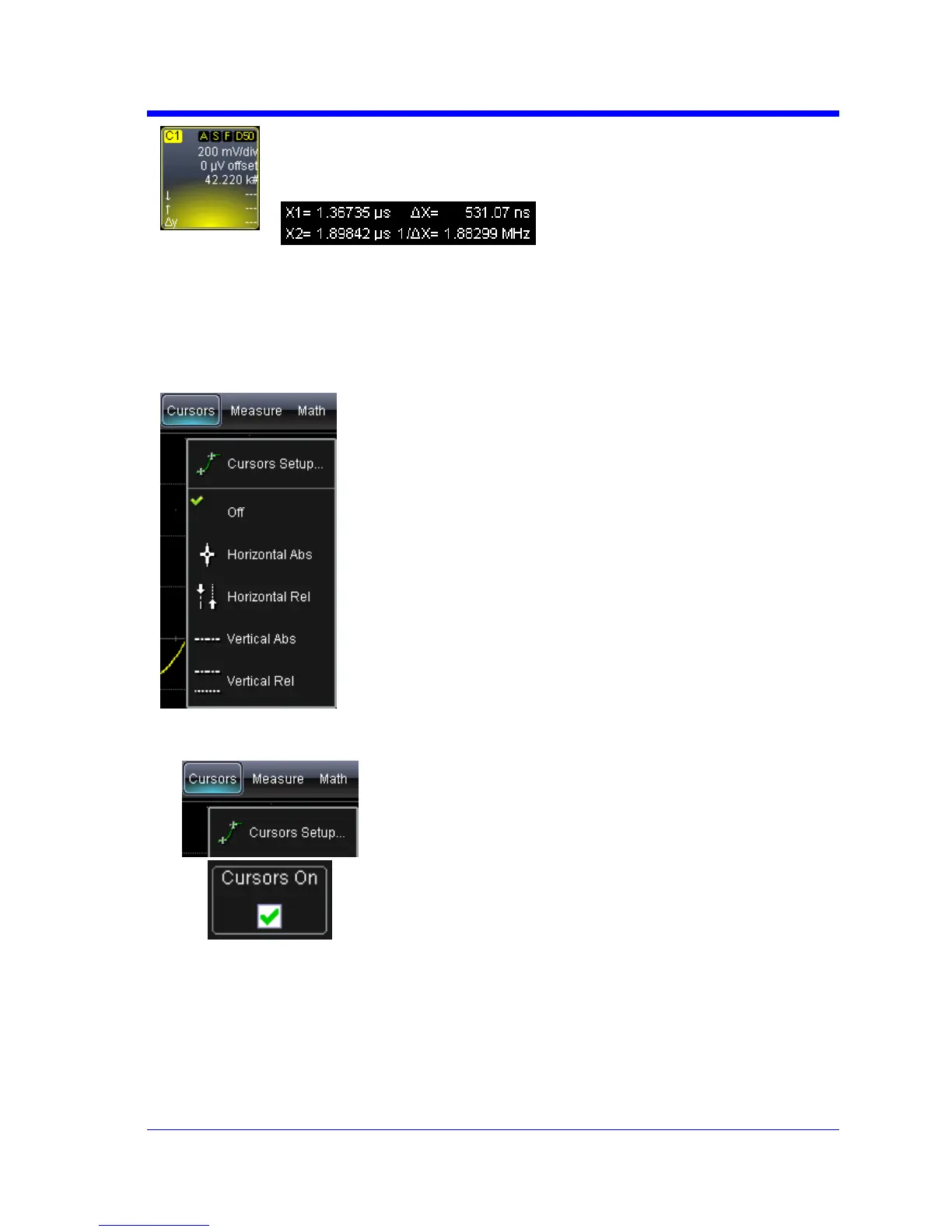

Cursorinformationisdisplayedinthechannel,math,zoom,and
memorytracedescriptorlabels.Itisalsodisplayedbelowthe
TimebaseandTriggerdescriptorlabels:

CursorsSetup
Quick Display
Atanytime,youcanchangethedisplayofcursortypes(orturnthemoff)without
invokingtheCursorsSetupdialog,asfollows:
1. TouchCursorsÆ Of
f
,HorizontalAbs,
HorizontalRel,VerticalAbs,orVertical
Relfromthemenubar.
2. Thecursorsshownassumeprevioussetup
positions.Ifyouwanttochangetheir
positionormeasurementmodetouch
CursorsÆCursorsSetupfromthemenu
bar.
Full Setup
1. TouchCursors Æ CursorsSetup fromthe
menubar.TheStandardCursorsdialog
opens.
2. Inthedialogarea,touchtheCursorsOn
checkboxtodisplaythem.
