WAVEFORMMATH 
FFTSetup

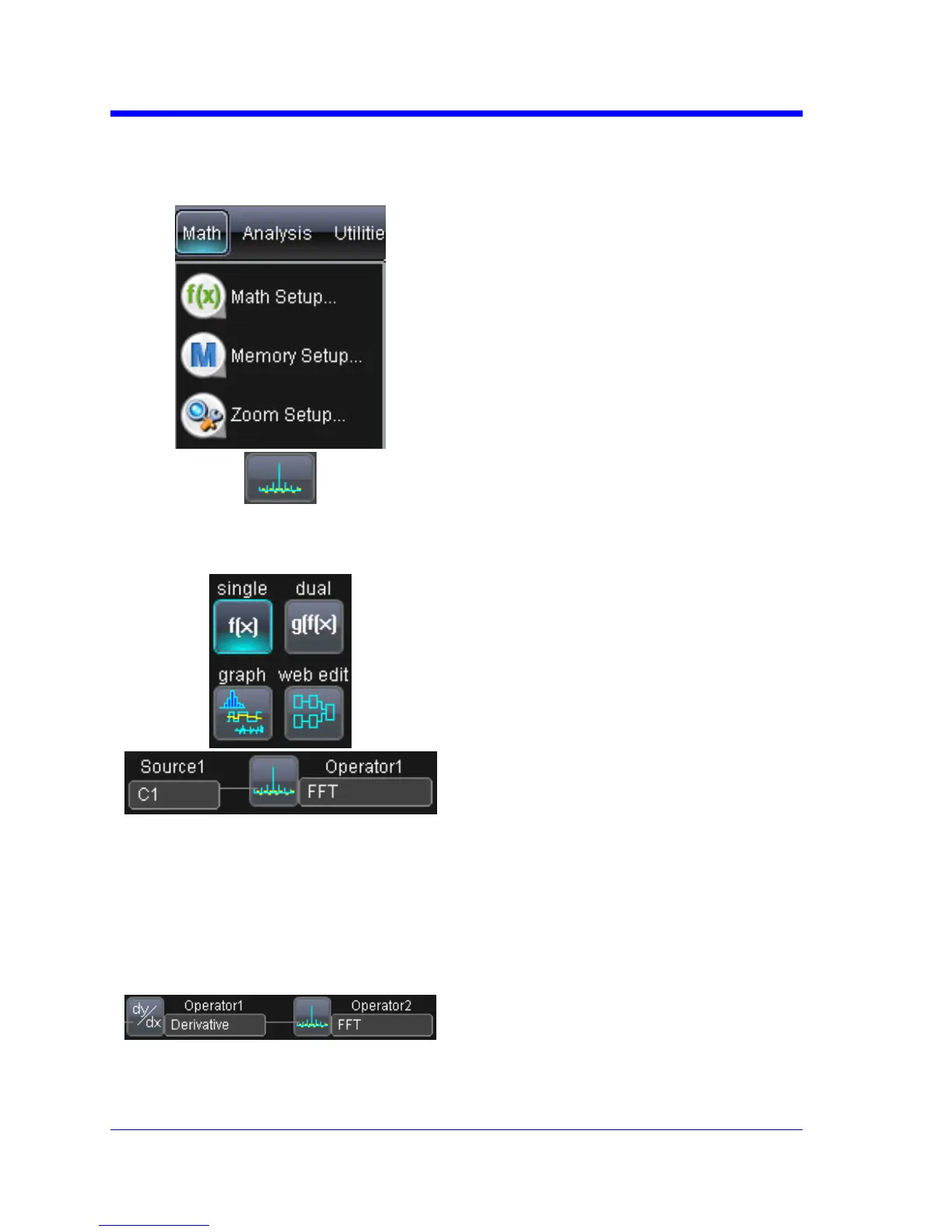

1. TouchMathÆ Math
Setuponthemenubar.
2. TouchaMathfunction
tracebuttonintheMath
dialog:F1throughFx.
SelectFFTfromthepop‐
upmenu.
3. TouchtheSingle, Dual,
Graph,orWebEdit
(functionofafunction)
buttoniftheFFTistobe
oftheresultofanother
mathoperation.
4. TouchinsidetheSource1
fieldandselectachannel,
memory,ormathtrace
onwhichtoperformthe
FFT.Touchinsidethe
Operator1field:Select
FFTfromthepop‐up
menuifyouselected
Singlefunction.
5. Selectanothermath
functionfromOperator1
ifyouselectedDual
function.

