LeCroy WaveRunner Xi-A User Manual

GETTING STARTED MANUAL
WRXi-A-GSM-E Rev A 73

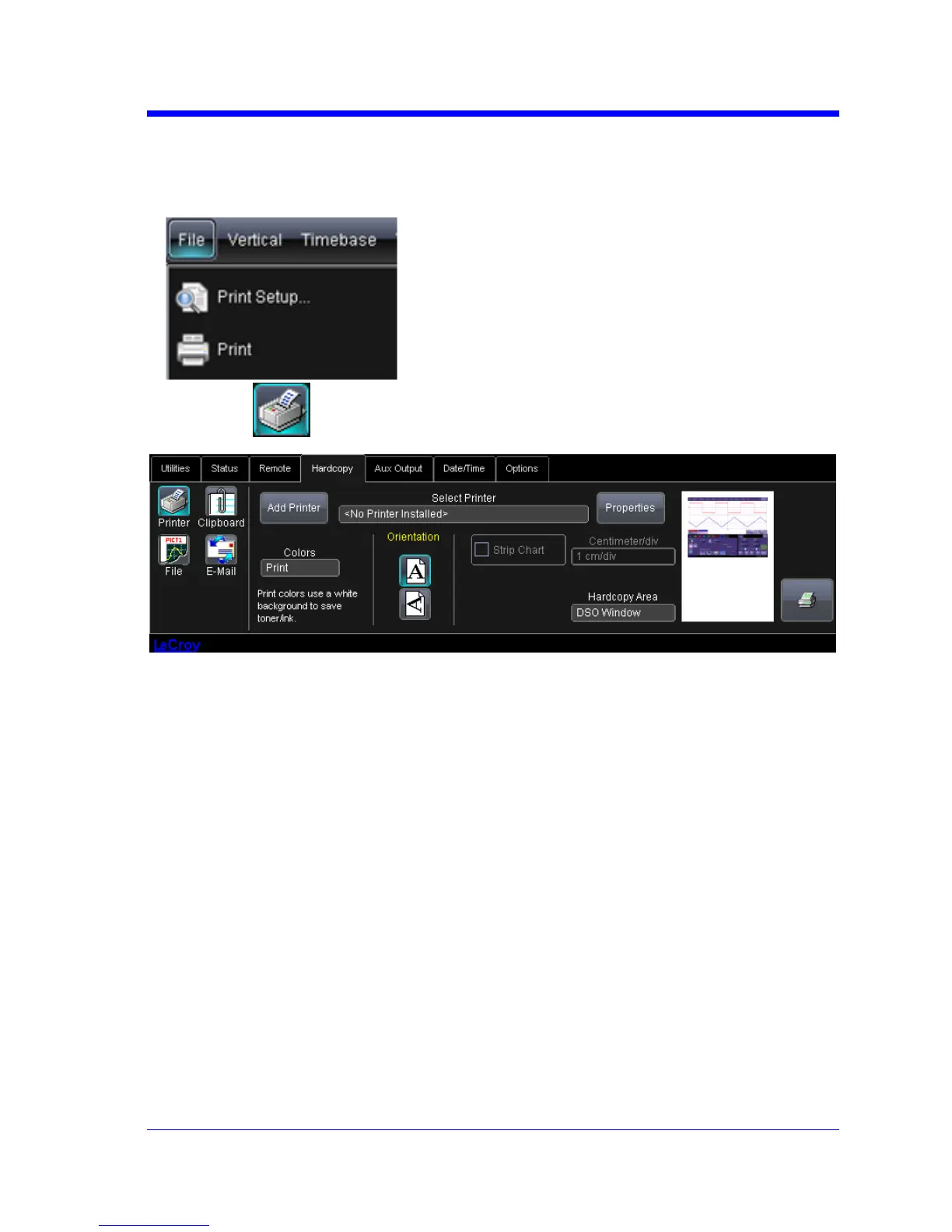

Printing
Printer Setup
1. TouchFile Æ PrintSetup...
fromthemenubar.The
UtilitiesHardcopydialog
opens.
2. Inthedialogarea,touchthe
Printericon.

3. UnderColors,touchtheUsePrintColorscheckboxifyouwantthetraces
printedonawhitebackground.Awhitebackgroundsavesprintertoner.
ChangeprintercolorsinthePreferencedialog.
4. TouchinsidetheSelectPrinterfield.Fromthetouchpadpop‐upchoose
theprinteryouwanttoprin
tto.TouchthePropertiesbuttontoseeyour
printersetup.
5. TouchtheiconforthelayoutOrientationyouwant:portraitorlandscape.
6. TouchtheGridAreaOnlycheckboxifyoudonotneedtoprintthedialog
areaandyouonlywanttoshowthewaveformsandgrids.
Printing
Youcanprintinoneofthreeways:
• PressthePrinterbuttononthefrontpanel
• TouchFileÆPrintonthemenubar.
• TouchthePrintbuttonintheHardcopydialog
