WAVERUNNER Xi-A AND MXi-A SERIES
50 WRXi-A-GSM-E Rev A

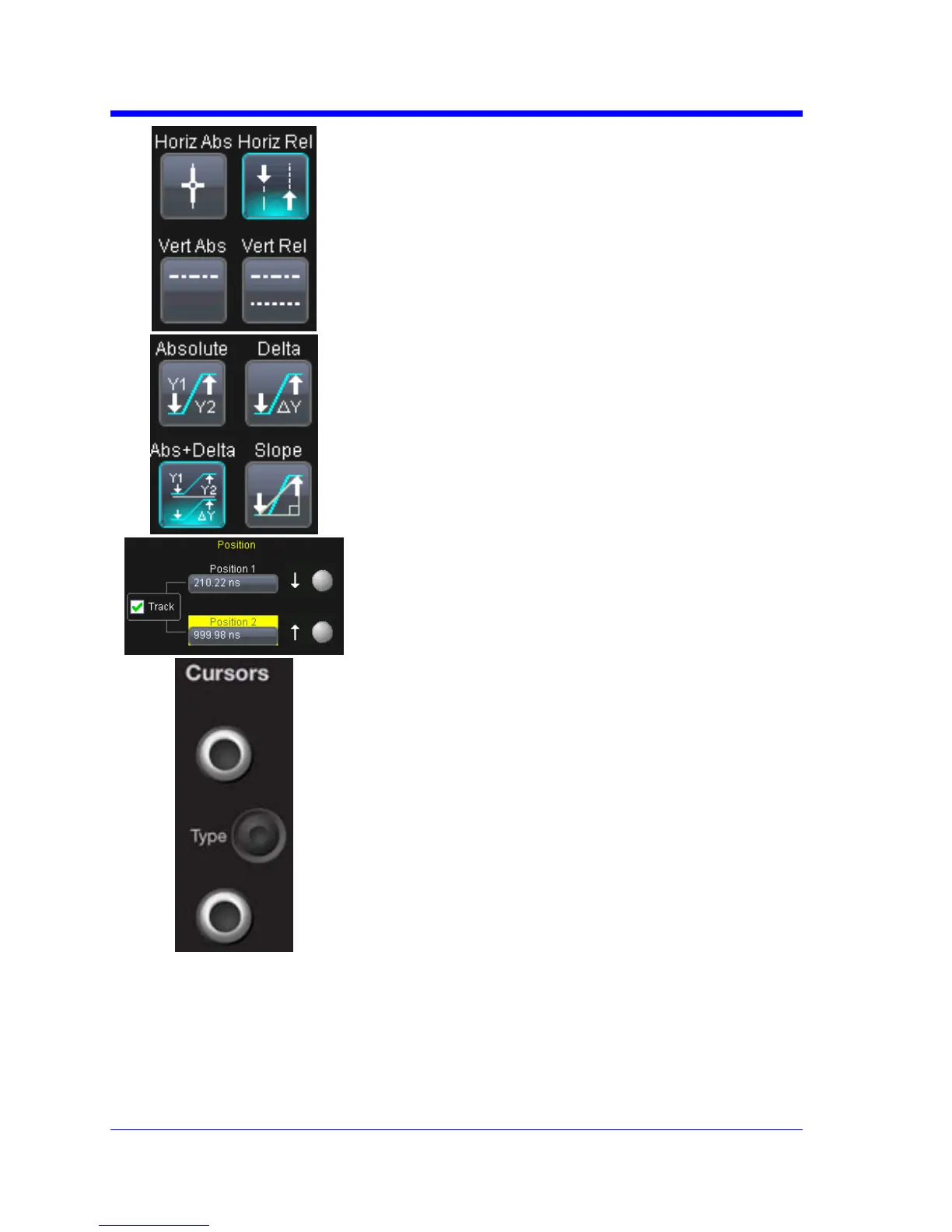

3. TouchoneoftheHorizontal orVertical mode
buttons:RelativeorAbsolute.
4. IfyouchoseaRelativemode,alsotoucha
readoutparameterbutton:Yposition,delta
Y,Ypositionplusdelta,orslope.
5. IfyouchoseaRelativemode,touchinsidethe
Position1andPosition2fieldsandtypeina
valueforeachcursor.Youcanalsousethe
Cursorsknobsonthefrontpaneltoplacethe
cursors.IfyouchoseanAbsolutemode,do
thesameforyoursinglecurs
or.
6. IfyouchoseaRelativemodeandyouwould
likebothcursorstomoveinunisonasyou
adjusttheposition,touchtheTrackcheck
boxtoenabletracking.
7. PushthefrontpanelCursorTypebuttonto
quicklychangethetypeofcursorsinuse.
PARAMETER MEASUREMENTS
Waveformanalysistypicallybeginswiththemeasurementofparameters.
Parametermeasurementtoolsdetermineawiderangeofwaveformproperties.
Usethemtoautomaticallycalculatemanyattributesofyourwaveform,likerise
time,rmsvoltage,andpeaktopeakvoltage,forexample.
