WAVERUNNER Xi-A AND MXi-A SERIES
40 WRXi-A-GSM-E Rev A
Alternatively,ontheTriggerdialog,touchtheLevel
fieldandprovideavalue(usingthepopupnumeric
keypad).
QuicklysetalevelofzerovoltsbypushingtheLevel
buttononthefrontpanel.

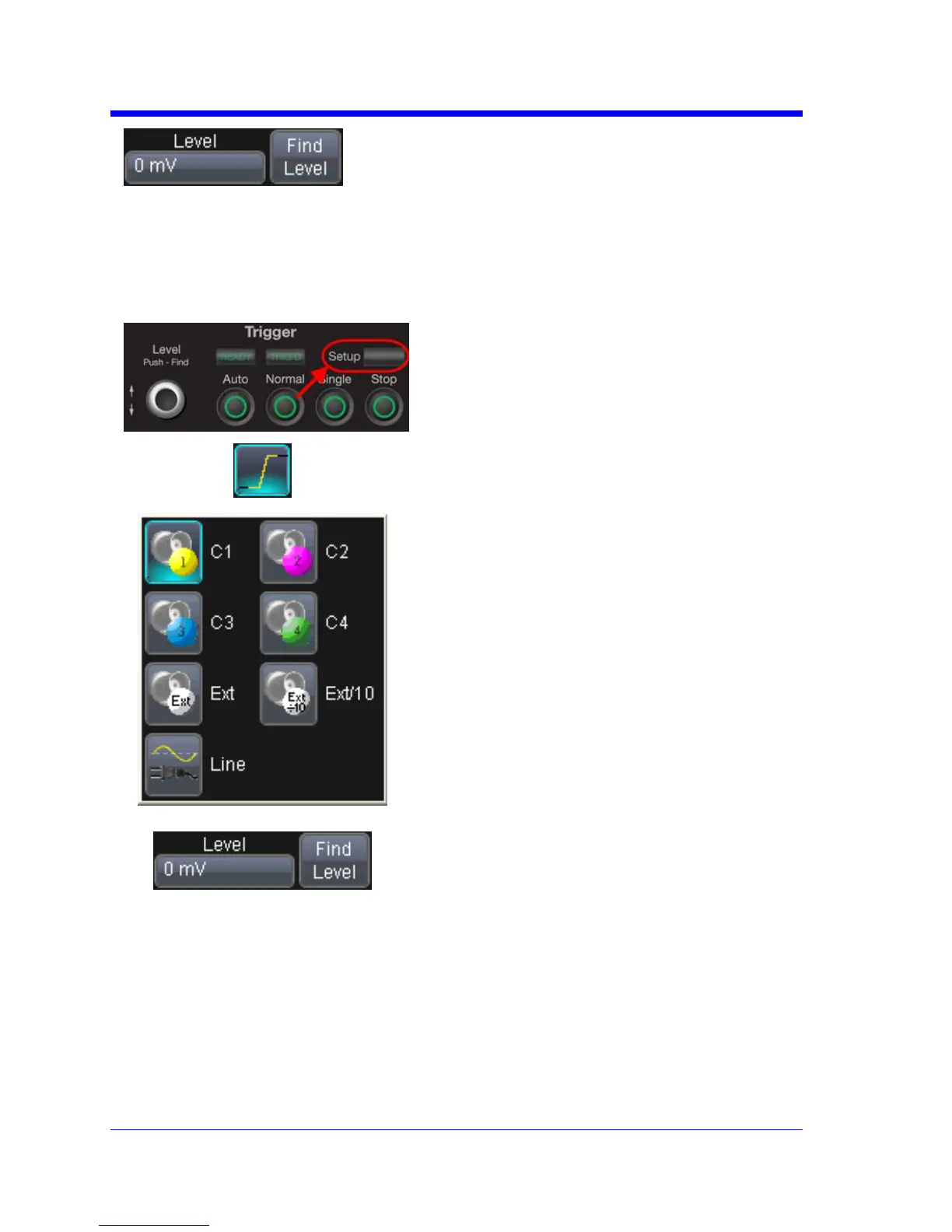

Edge Trigger Setup
1. PushthefrontpaneltriggerSETUP
button.
2. TouchtheEdge triggerbutton.
3. TouchinsidetheSource fieldand
selectaninputfromthepopup
menu.
4. C1throughC4areabbreviationsfor
Channel1throughChannel4.
5. ExtandExt/10allowyoutotrigger
ontheExternalInputofthe
oscilloscope.Extinputis+/0.5V.
Ext/10inputis
+/5.
0V.
6. LineisfortriggeringonthePositive
orNegativeexcursionoftheAC
powerline.
7. Touchinsidethe Level field.Inthe
popupnumerickeypad,entera
valueinmillivoltsorusethe
up/downbuttonstoincreaseor
decreasethevalueinincrementsof
1mV.Ormovethesliderbarto
increaseordecreasethevalues.
SeeDialogMenusectionformore
informationonthesliderbar.
