GETTING STARTED MANUAL
WRXi-A-GSM-E Rev A 41

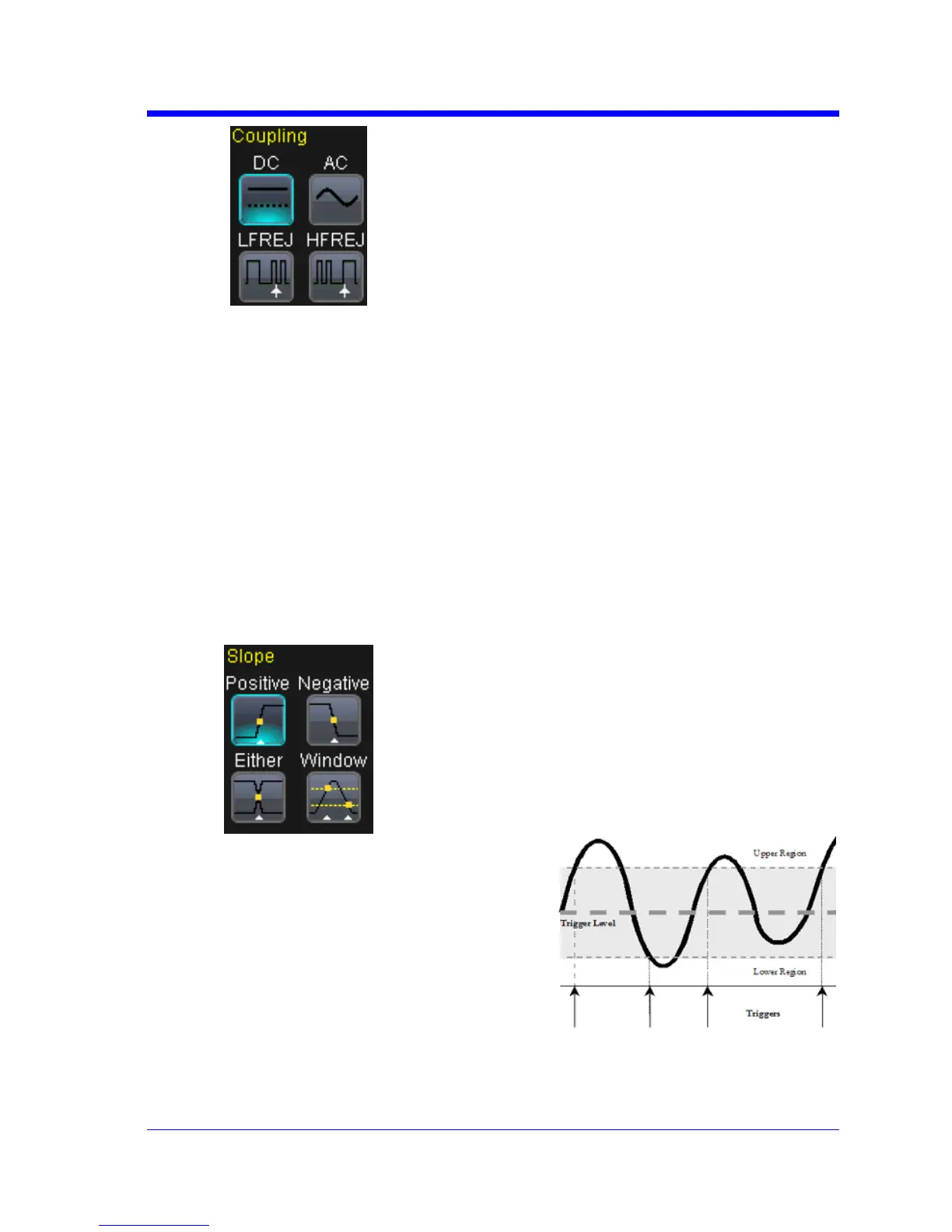

8. TouchinsidetheCoupling fieldand
selectacouplingtype.
DCAllthesignal’sfrequency
componentsarecoupledtothetrigger
circuitforhighfrequencyburstsor
wheretheuseofACcouplingwould
shifttheeffectivetriggerlevel.
ACThesignaliscapacitivelycoupled.
DClevelsarerejected,an
dfrequencies
below50Hzareattenuated.
LFREJ‐Thesignaliscoupledthrougha
capacitivehighpassfilternetwork,DCis
rejectedandsignalfrequenciesbelow
50kHzareattenuated.Forstable
triggeringonmediumtohighfrequency
signals.
HFREJ‐SignalsareDCcoupledtothe
triggercirc
uitandalowpassfilter
networkattenuatesfrequenciesabove
50kHz.Thisisusedfortriggeringonlow
frequencies.
9. ChoosePositive,Negative,or
Windowslope.
10. Windowslopesetsathreshold
aboveandbelowthetriggerlevel
beyondwhichthesignalmustpass
togenerateatrigger.Theslopecan
beeitherpositiveornegative.
