WAVERUNNER Xi-A AND MXi-A SERIES
30 WRXi-A-GSM-E Rev A
Ifthesignalisnotonthegrid,presstheAUTOtriggerbuttonandadjustHorizontal
andVerticalfrontpanelcontrolstoadjustthesettingsanddisplaythesignal,or
simplypresstheAUTOSETUPbuttontoquicklybringmostrepetitivesignalsonto
thegrid.

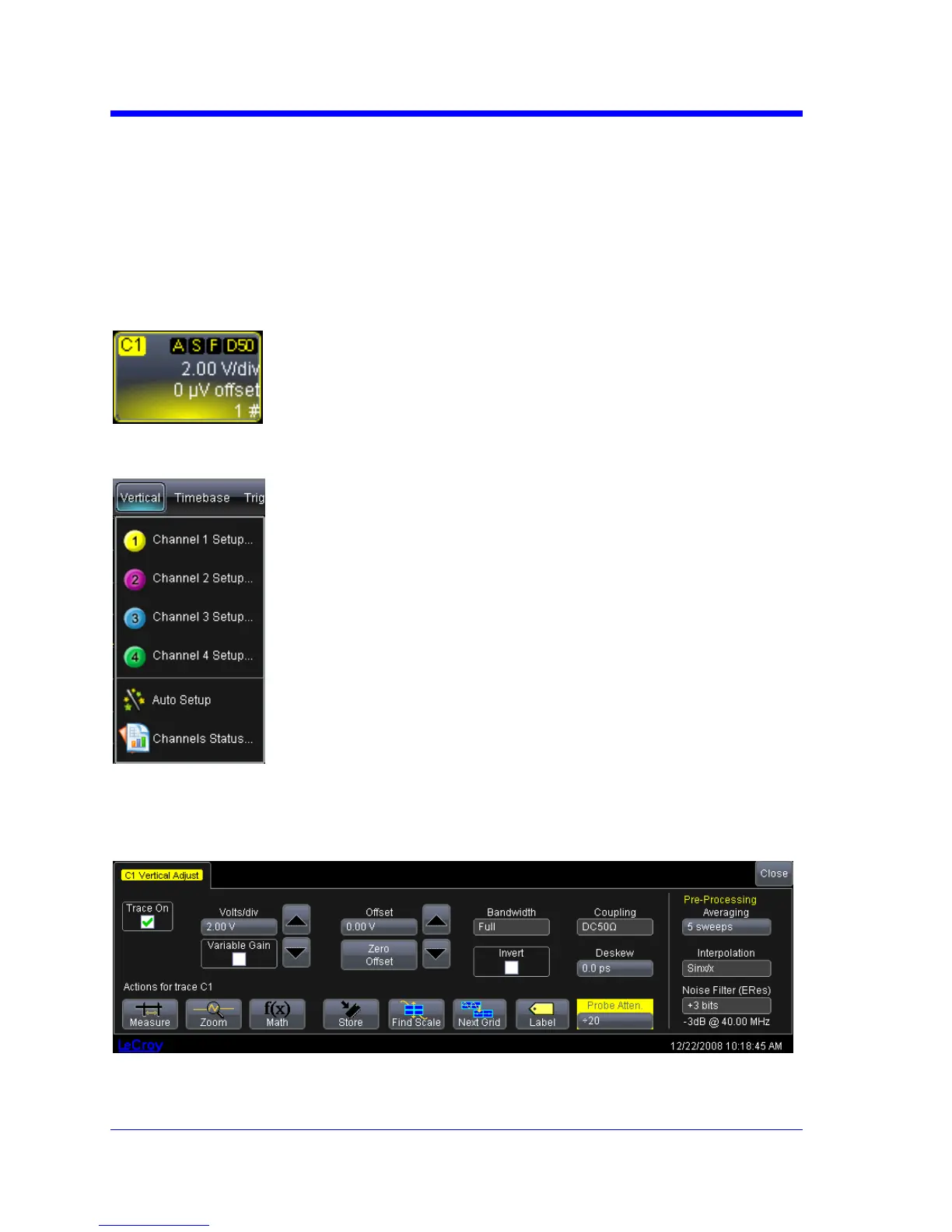

Ifyouneedtochangeprobeattenuation,coupling,orba
ndwidthlimiting,openthe
channelsetupdialogforchannel1bytouchingthedescriptorlabelforchannel1.
Pressthisbuttontwiceifitisnottheactivetrace.
Or,usetheVerticalÆChannel1Setupselectionfromthemenubartoopenthe
channel1setupdialog:

Atthispoint,thefollowingdialogisshownatthebottomofthedisplay,andthe
gridareashortensuntilthisdialogisclosed(bytouchingtheClosebuttononthe
upperrighthandcornerofthisdialog).
