Robot control box
Chapter 3 - page 2
M-HE.002.1003
3.2 E-LINK CONTROL PANEL (optional)
The E-link control panel (figure 3.3) can be used to operate the robot from the cow side.
The E-link control panel user interface consists of a LCD
display including 9 keys. The following keys are used for
operating the milking robot.
Next screen/ENTER (1)
This key is used to open a selected menu, after which the
following screen of the menu is selected. Data entries or
alterations are registered in the actual screen.
Previous screen (2)
This key is used to select the previous screen of the actual
menu.
Display (3)
Selection key up ∧ (4)
Depending on the actual display, this key is used to select an
option, adjust a value or to confirm a task.
Selection key down ∨ (5)
Please refer to the explanation for the previous key.
Stop-button (6)
In a limited number of situations, it is possible to interrupt a routine by means of this button. This button also
enables you to return to the beginning of the actual menu.
Manual feed button (7)
This button is used to feed the cow by means of operating the feed cylinder.
3
2
5
4
6
1
7

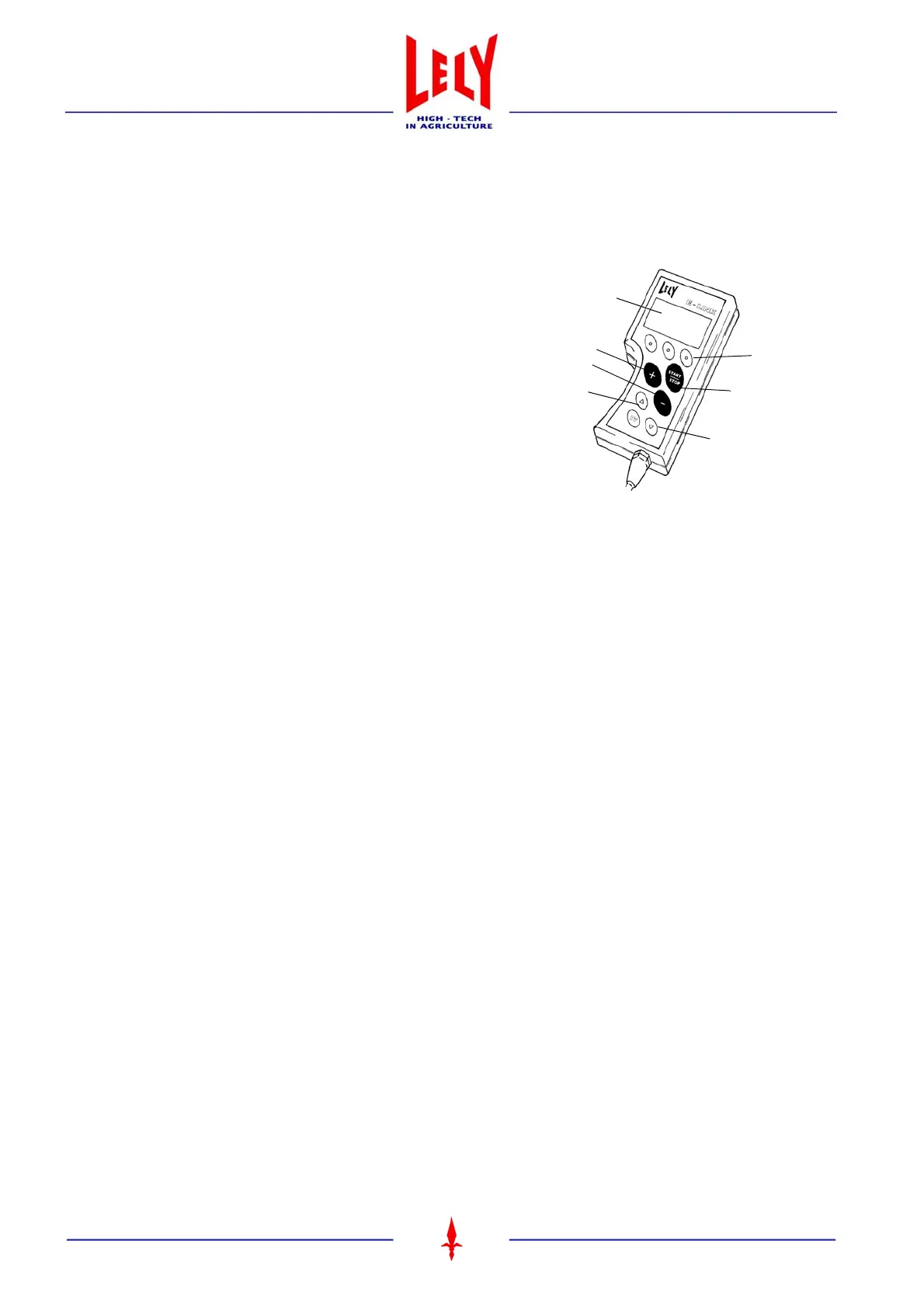

Figure 3.3 E-link control panel
