4 Remove the rear door. See “Rear door removal” on page 280.
5 Detach the controller board access cover.
6 Remove the rear lower cover. See “Rear lower cover removal” on page 276.
7 Remove the top cover. See “Top cover removal” on page 278.

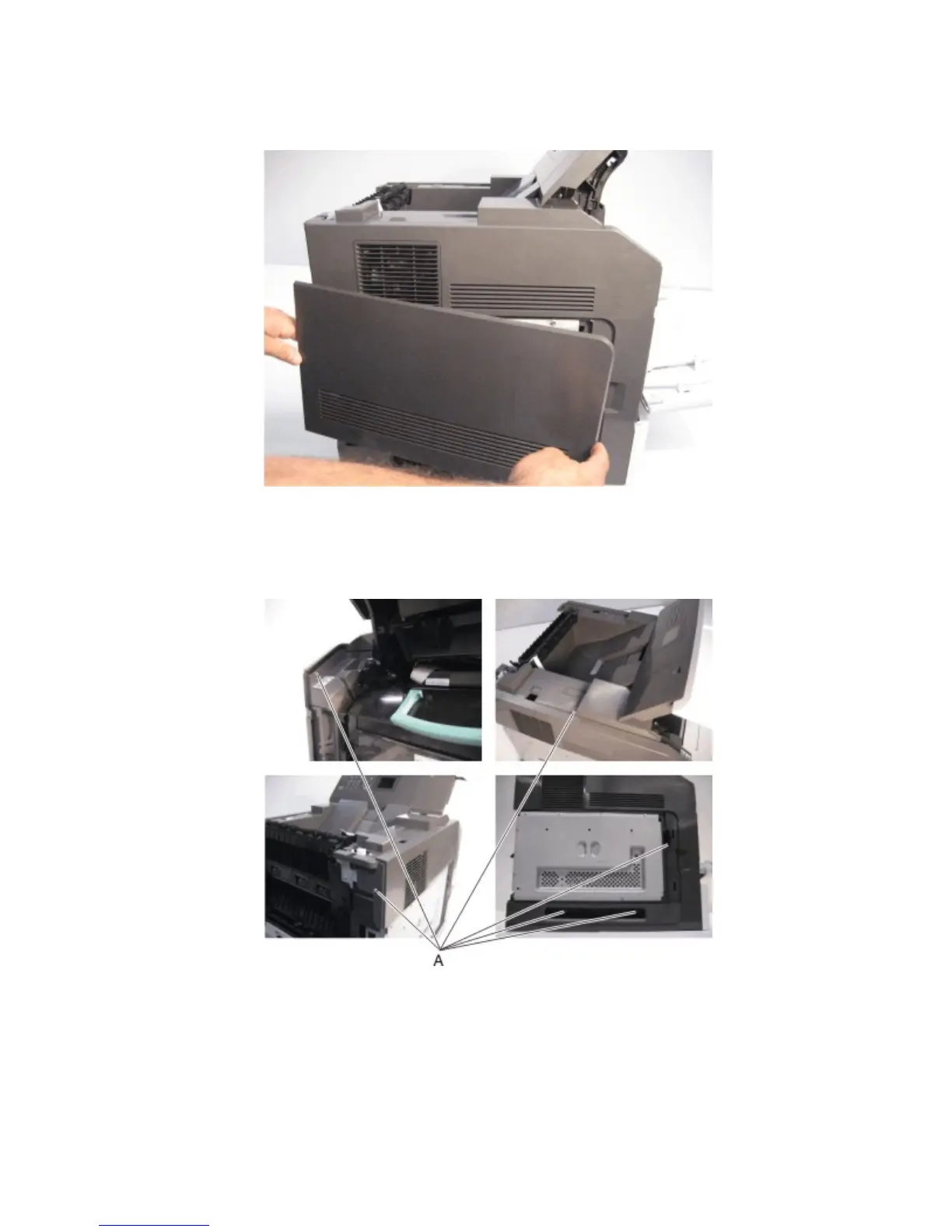

8 Remove the six screws (A) securing the left cover to the machine.
4063
Repair information
274
