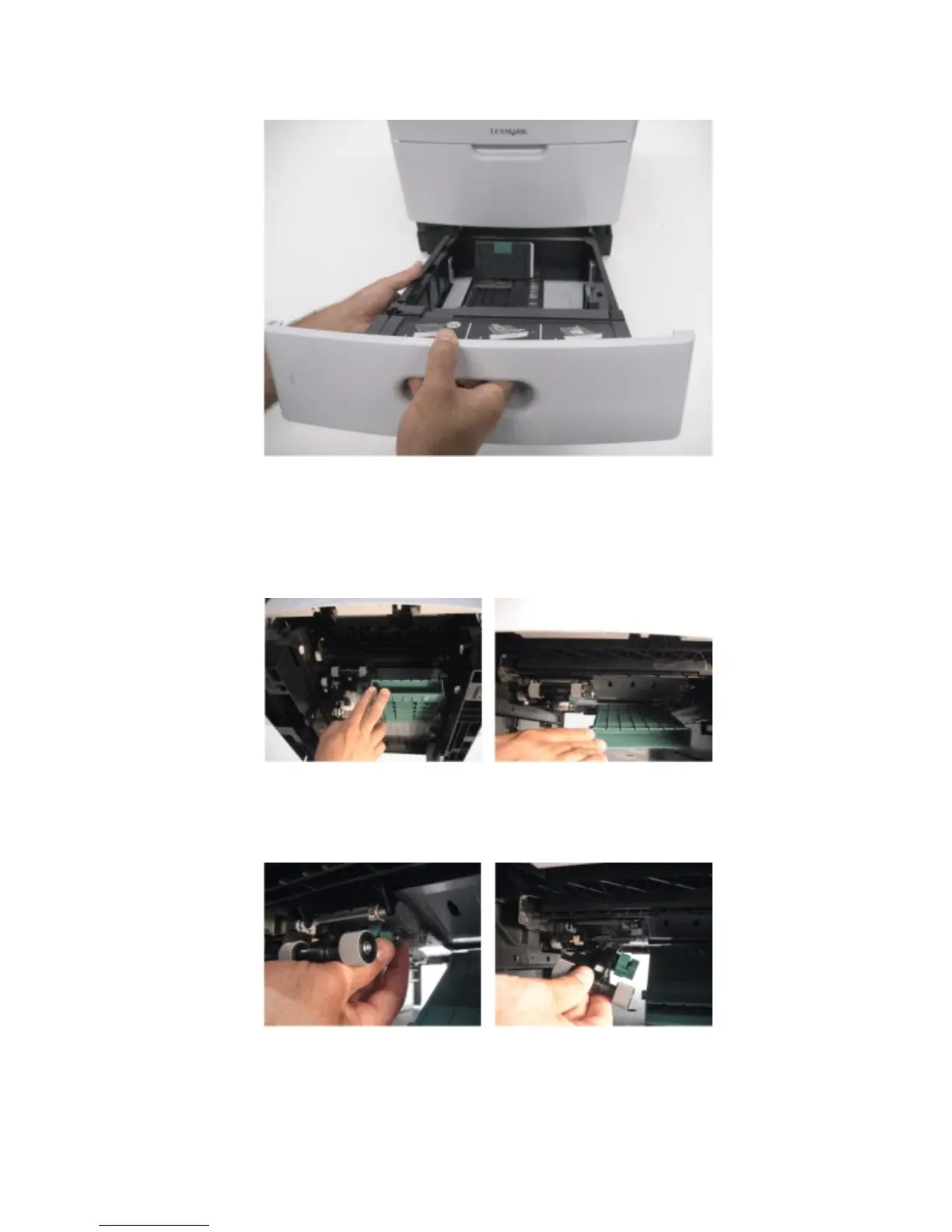

2 Lift the media tray, as shown in the following image, and remove it from the machine.
Pick roller assembly removal
1 Remove the media tray. See “Media tray removal” on page 332.
2 Lower the front duplex flap to gain access to the pick roller assembly.
Note: When removing the pick roller assembly, avoid all contact with the roller surfaces, or paper jams might
occur.
3 Squeeze both sides of the pick roller latch, and move the pick roller assembly to the right to remove it.
Note: When replacing the pick rollers, do not touch the roller surfaces, or paper jams might occur.
4063
Repair information
333
To Next Page
