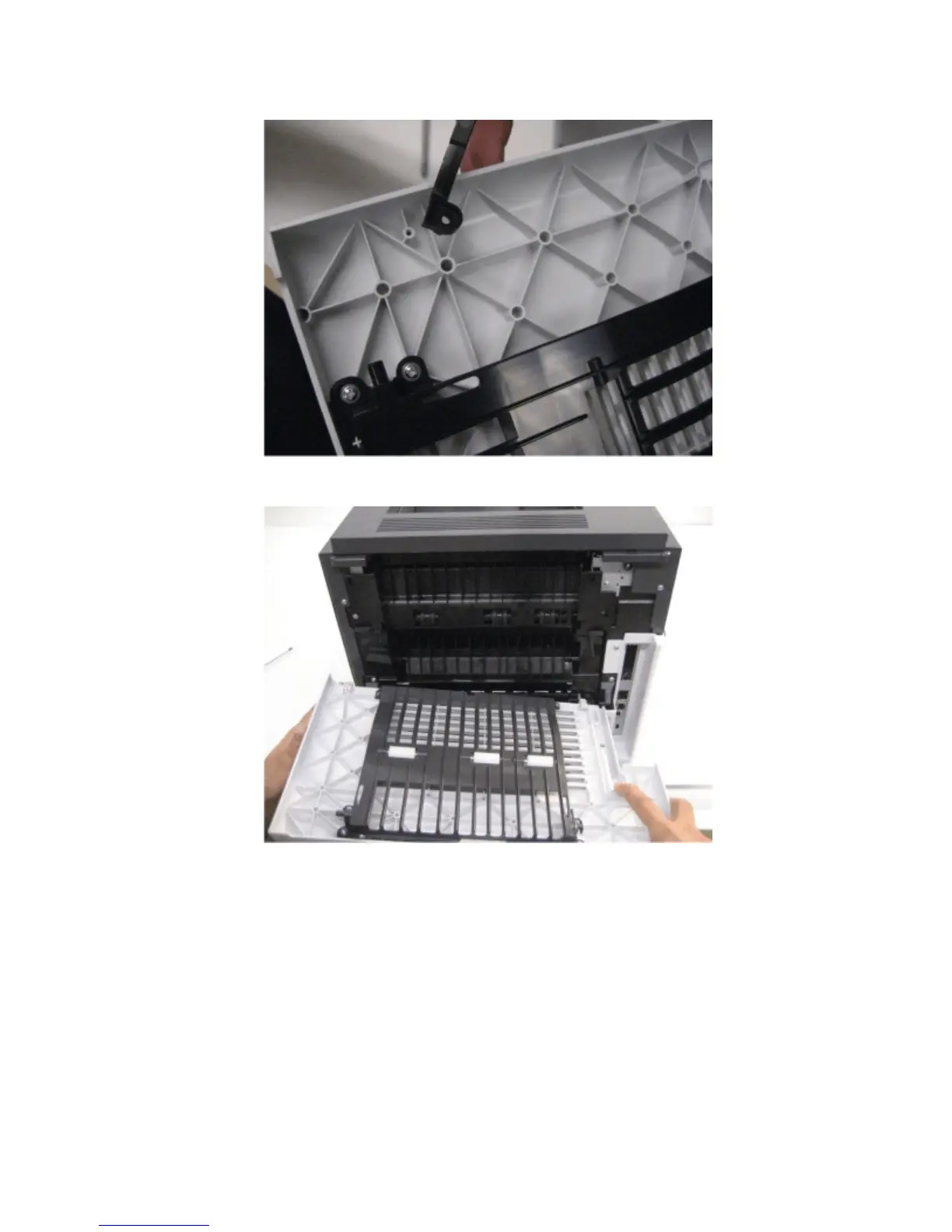

3 Remove the support strap.
4 Slide the rear door away from the machine, and remove it.
Base printer- front removals
• “Duplex exit diverter removal” on page 282
•
“Front door removal” on page 284
• “Inner guide deflector removal” on page 285
• “Laser printhead removal” on page 286
•
“Left inner cover removal” on page 291
• “Media aligner roller removal” on page 293
• “Media turn guide removal” on page 295
