Spring with string removal

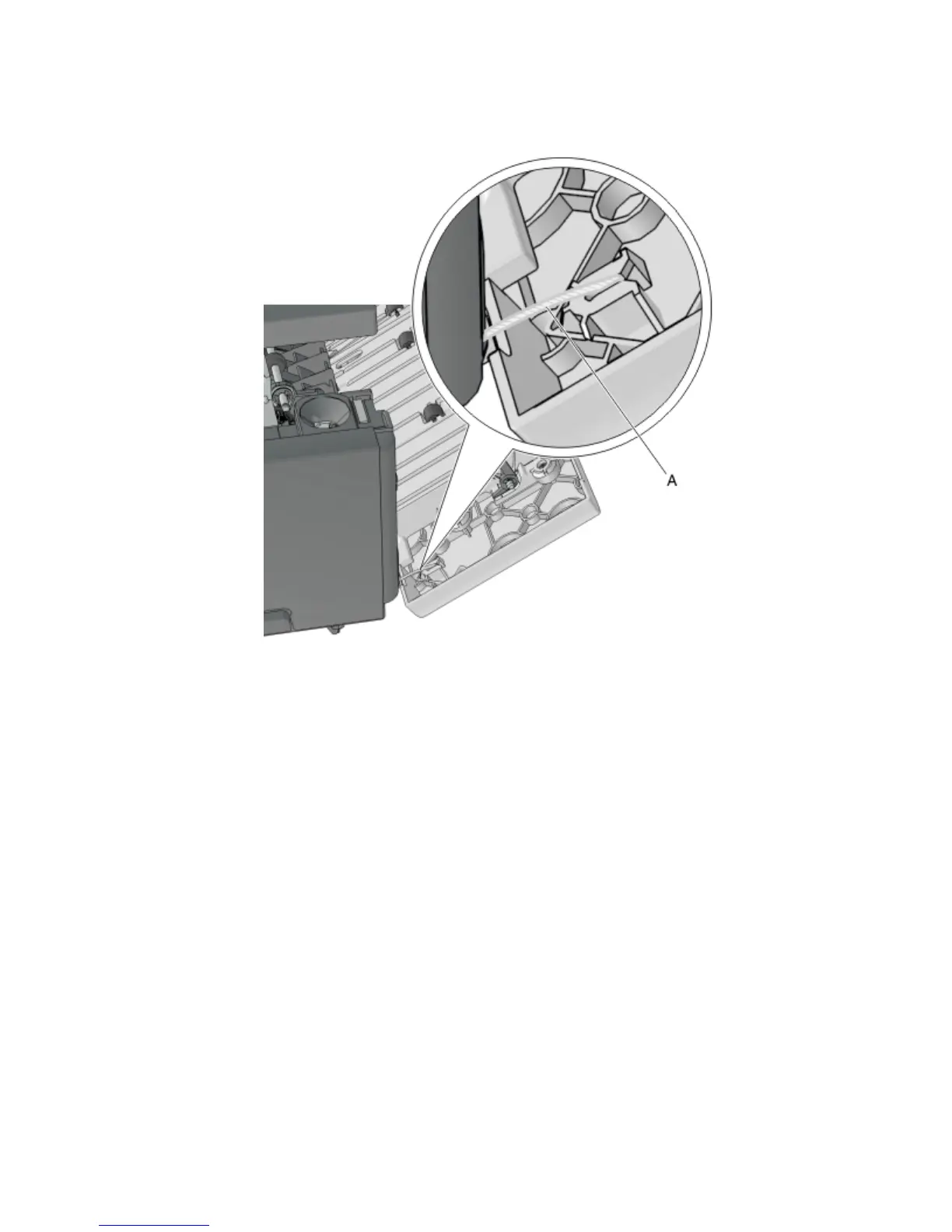

1 Open the rear door, and detach the string (A).
2 Remove the right cover. See “Output expander right cover removal” on page 441.
3 Remove the spring with string.
Note: Pay attention to the original position of the string. The string on the pulley is wound clockwise.
