Lexmark MS81 Series - Front Door Removal

Front door removal
1 Remove the MPF tray. See “MPF tray removal” on page 303.
2 Raise the front door to a forty-five degree angle.

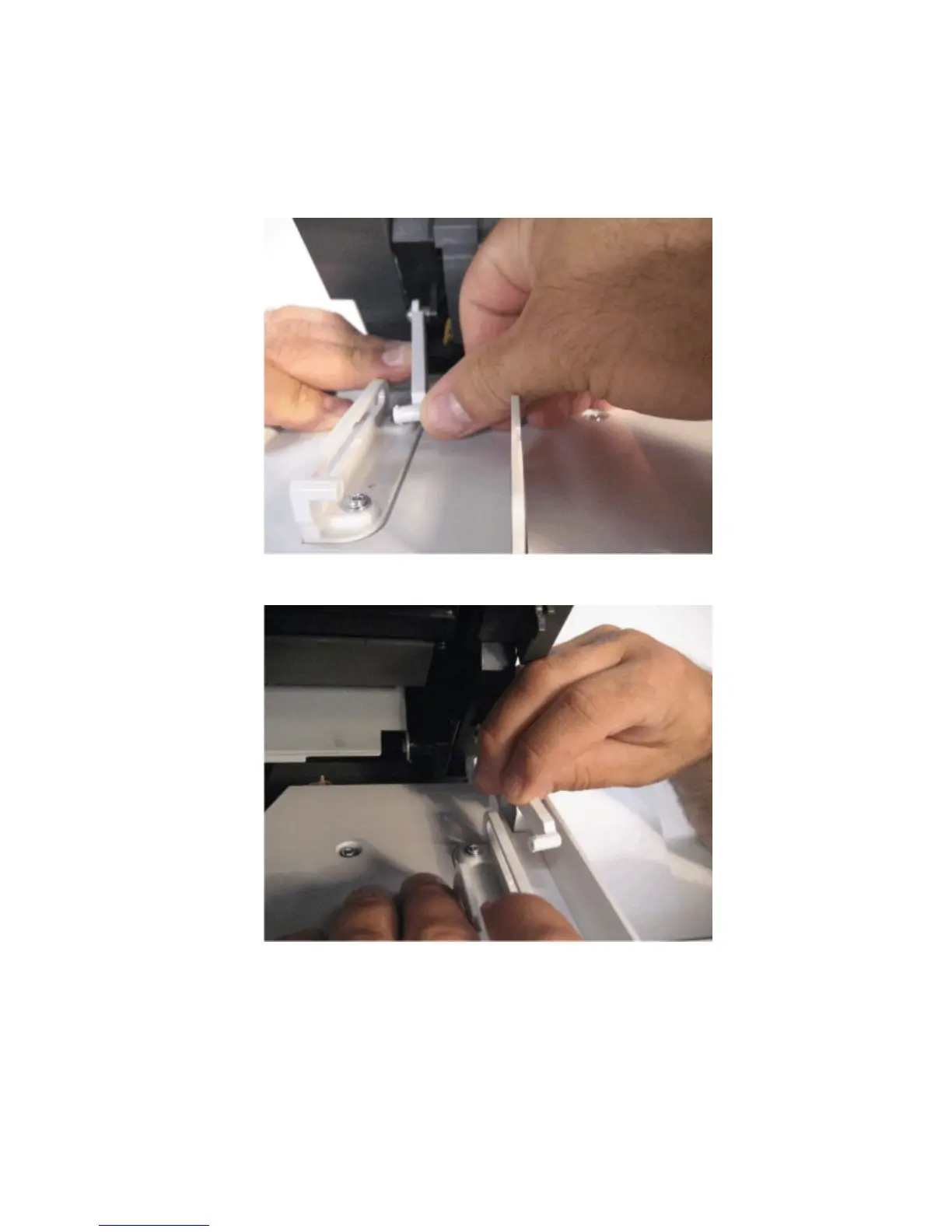

3 Gently flex the left bracket and release the tab on the MPF support link, as shown in the following image.
4 Gently flex the right bracket and release the tab on the MPF support link, as shown in the following image.
4063
Repair information
284
