HCOE upper interface cable removal
1 Remove the sensor cover. See “HCOE sensor cover removal” on page 452.
2 Remove the left cover. See “HCOE left cover removal” on page 455.
3 Disconnect the upper interface cable from the controller PCBA.

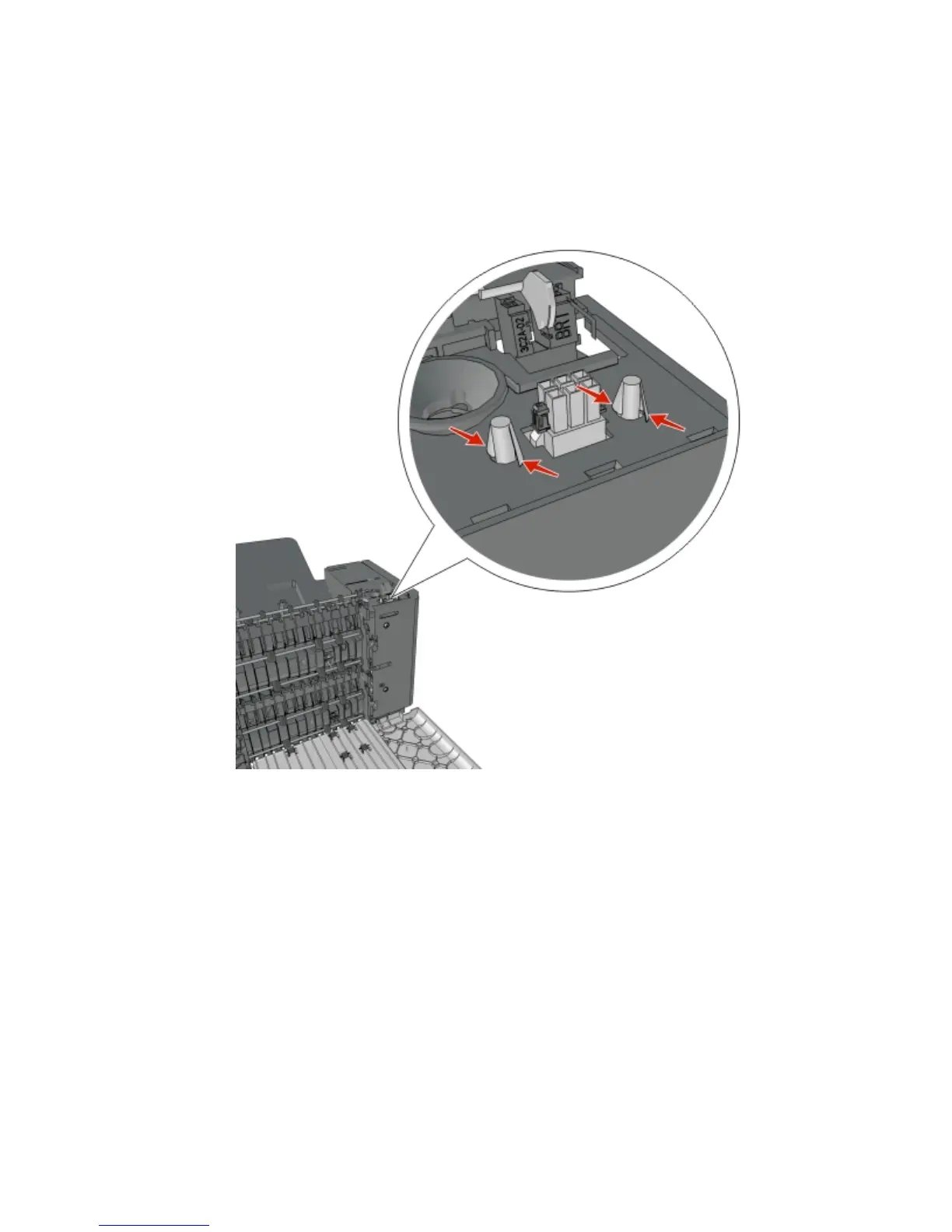

4 Crimp both connector pins using pliers to make them fit through the pin holes. Push the connector out of its slot.
5 Remove the upper interface cable.
4063
