Lexmark MS81 Series - Base Printer - Bottom Removals

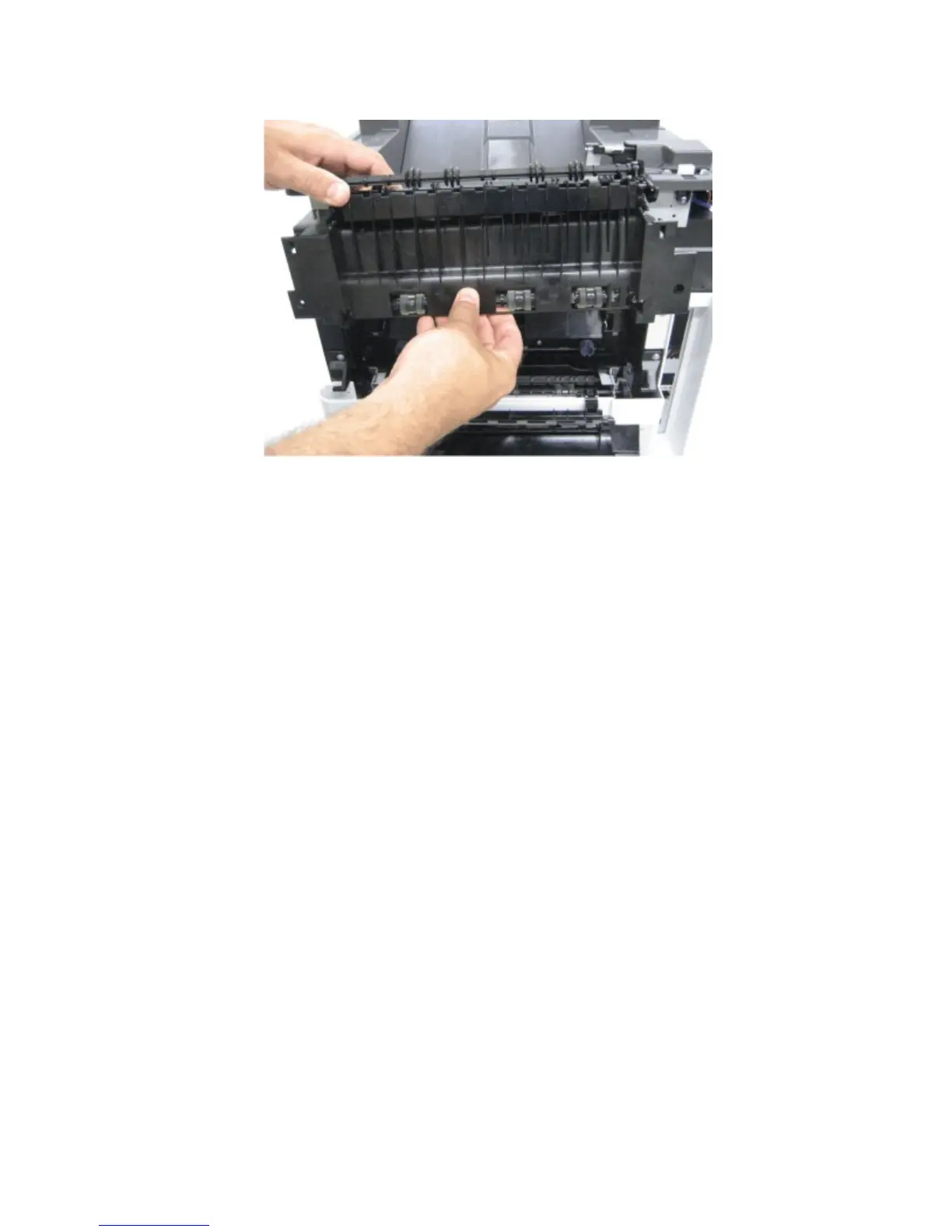

5 Move the upper redrive down and away from the machine to remove it.
Base printer - bottom removals
• “Duplex front flap removal” on page 328
•
“Duplex rear flap removal” on page 329
• “Left frame extension removal” on page 330
• “Media tray removal” on page 332
•
“Pick roller assembly removal” on page 333
• “Right frame extension” on page 334
•
“Sensor (duplex path) removal” on page 335
• “Sensor (tray 1 media out) removal” on page 336
• “Separator roller assembly removal” on page 338
