5 Slide the front door to the left, and detach it from the machine.
Inner guide deflector removal
1 Remove the left cover. See “Left cover removal” on page 273.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 342.
3 Remove the media tray. See “Media tray removal” on page 332.
4 Remove the MPF tray. See “MPF tray removal” on page 303.
5 Remove the front door. See “Front door removal” on page 284.
6 Remove the toner cartridge.
7 Remove the imaging unit.
8 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 298.
9 Remove the media turn guide. See “Media turn guide removal” on page 295.
10 Remove the media vertical guide. See “Media vertical guide removal” on page 296.
11 Remove the duplex exit diverter. See “Duplex exit diverter removal” on page 282.

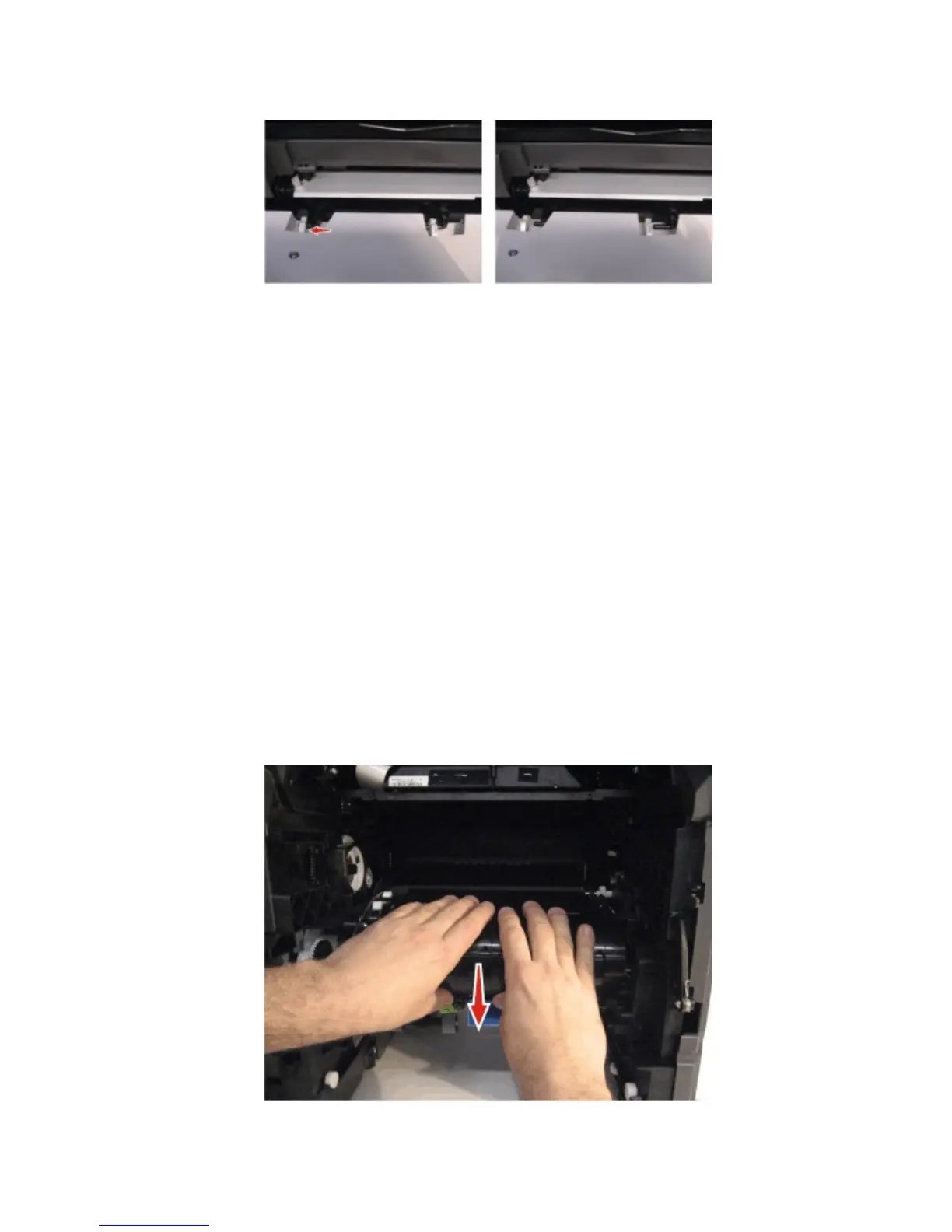

12 Gently press the mounting loops inward to free them from the bosses on the frame.
13 Release the upper hooks on the inner guide deflector.
4063
Repair information
285
