Lexmark MS81 Series - Right Control Panel Hinge Removal

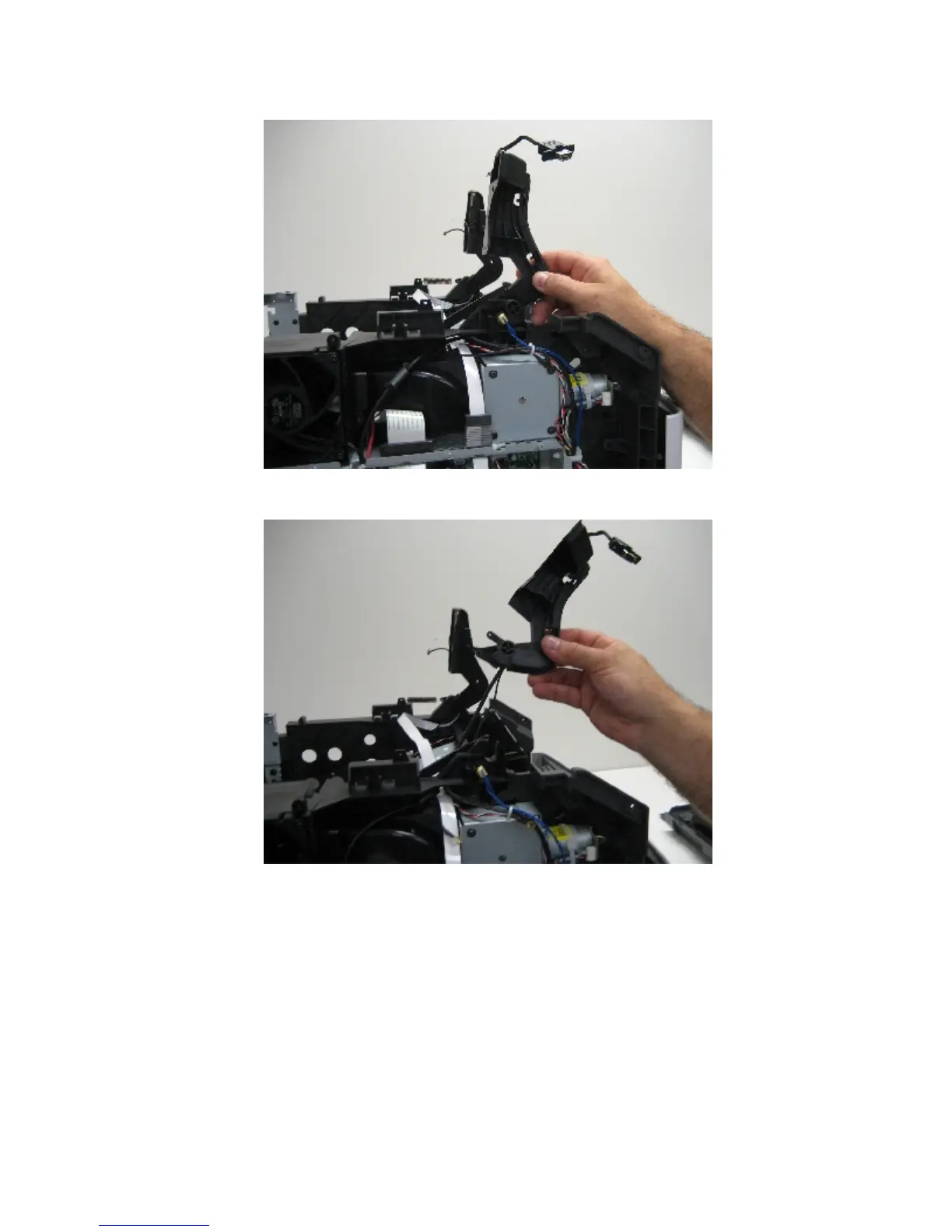

16 Position the left control panel hinge as shown in the following image.
17 Remove the left control panel hinge.
Right control panel hinge removal
1 Remove the left cover. See “Left cover removal” on page 273.
2 Remove the right cover. See “Right cover removal” on page 278.
3 Open the rear door.
4 Remove the top cover. See “Top cover removal” on page 278.
5 Remove the upper redrive. See “Upper redrive removal” on page 325.
6 Remove the output bin sensor cover. See “Output bin sensor cover removal” on page 320.
