7

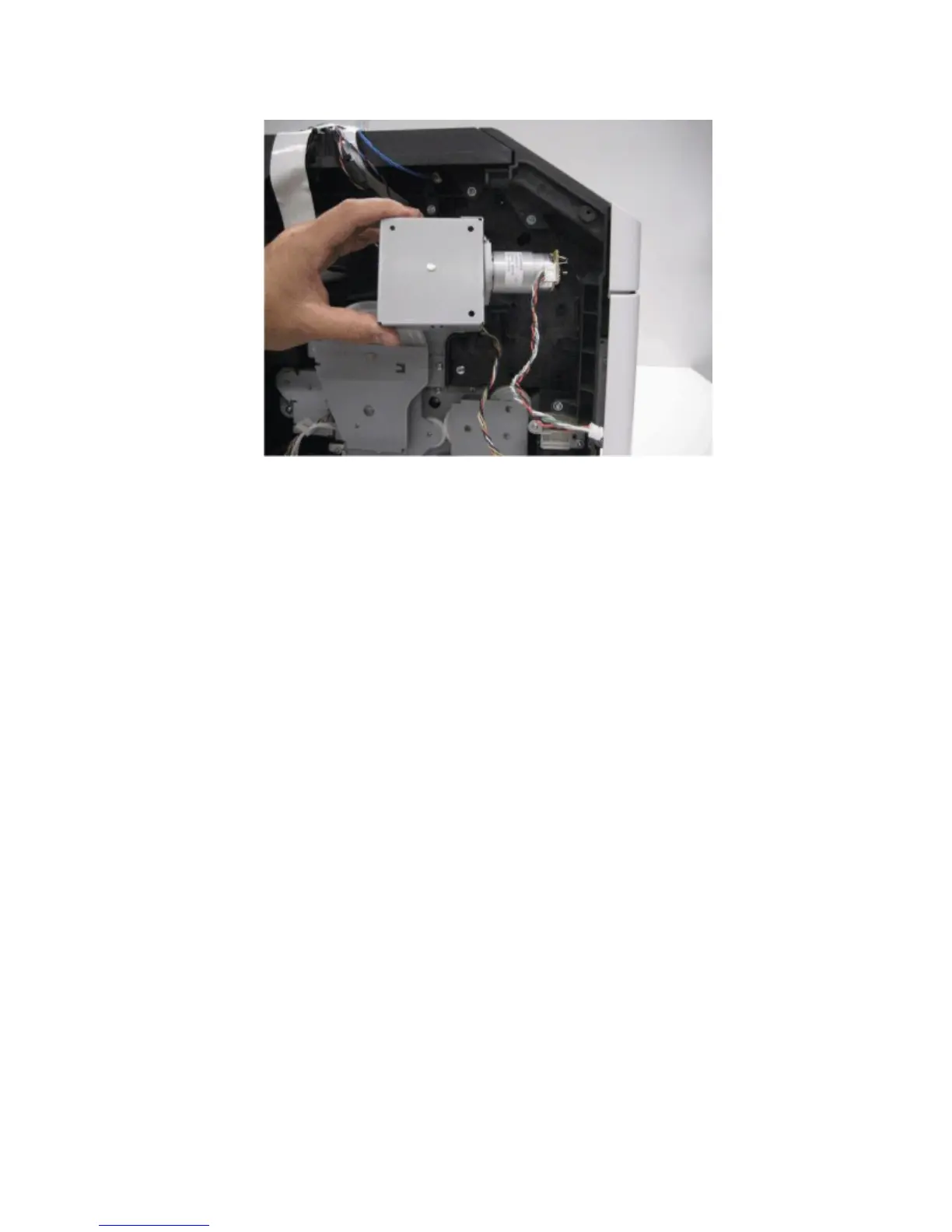

Remove the toner add motor.
Base printer - right removals
•
“Cartridge cooling fan removal” on page 354
•
“Duplex cooling fan removal” on page 355
•
“HVPS removal” on page 356
•
“LVPS removal” on page 357
4063
Repair information
353
352
354
