Lexmark MS81 Series - Sensor (Tray 1 Media Out) Removal

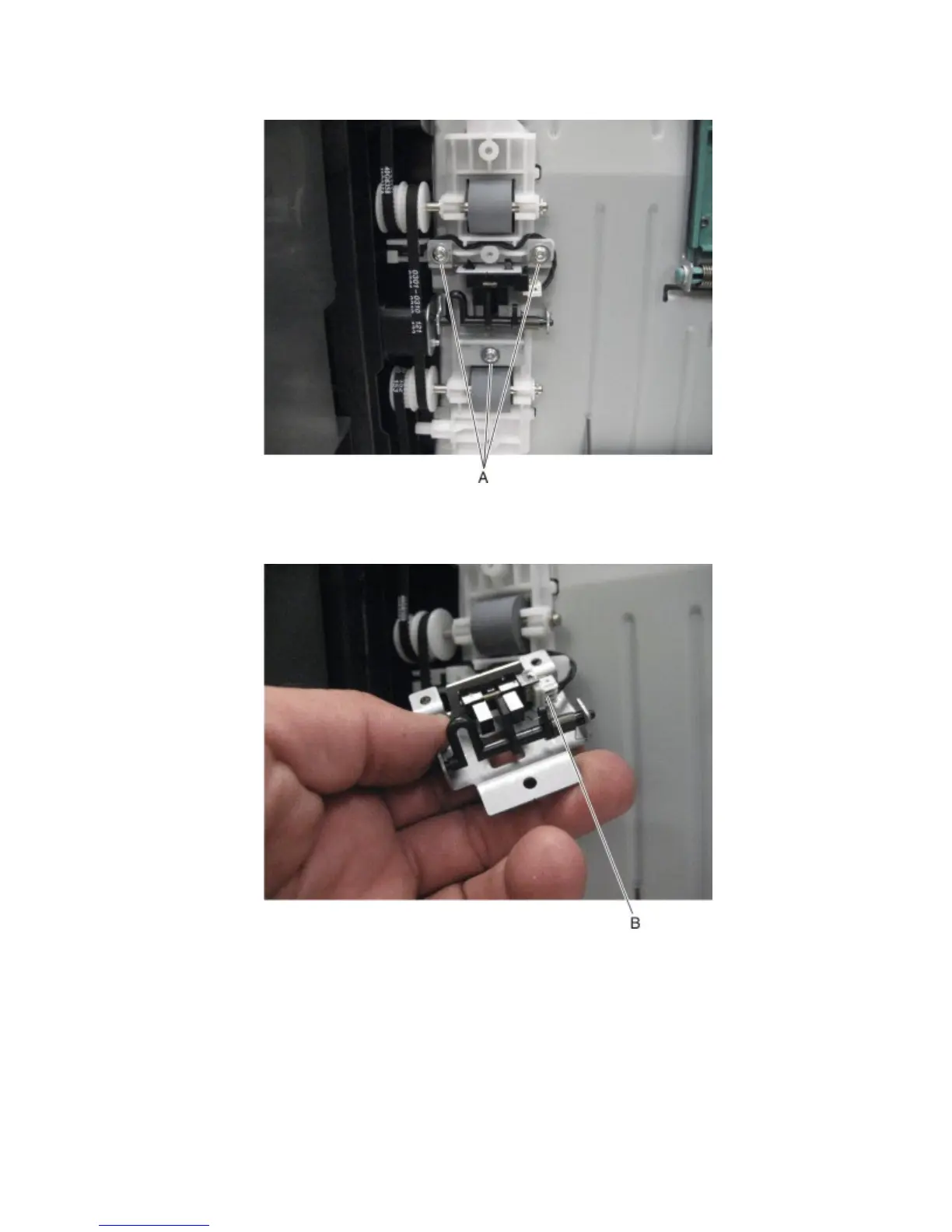

3 Remove the three screws (A) securing the sensor (duplex path) to the machine.
4 Remove the sensor (duplex path).
5 Disconnect the cable (B) from the sensor (duplex path).
Sensor (tray 1 media out) removal
1 Remove the right cover. “Right cover removal” on page 278.
2 Remove the rear lower door. See “Rear lower cover removal” on page 276.
3 Remove the LVPS. See “LVPS removal” on page 357.
4 Remove the left cover. See “Left cover removal” on page 273.
4063
Repair information
336
